Torque Specifications
WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
TORQUE SPECIFICATIONS
| Application | Ft. Lbs. (N.m) | |||
|---|---|---|---|---|
| A/C Compressor Mounting Bracket | 30 (41) | |||
| A/C & Power Steering Accessory Bracket Bolt | 30 (41) | |||
| Camshaft Gear Bolt | ||||
| Step 1 | 37 (50) | |||
| Step 2 | Additional 60 degrees | |||
| Step 3 | Additional 15 degrees | |||
| Catalytic Converter Bolt | 15 (20) | |||
| Coolant Bridge Bolt | 22 (30) | |||
| Coolant Pipe/Engine Lift Bracket Bolt | 15 (20) | |||
| Crankshaft Drive Gear Bolt | ||||
| Step 1 | 184 (249) | |||
| Step 2 | Additional 45 degrees | |||
| Step 3 | Additional 15 degrees | |||

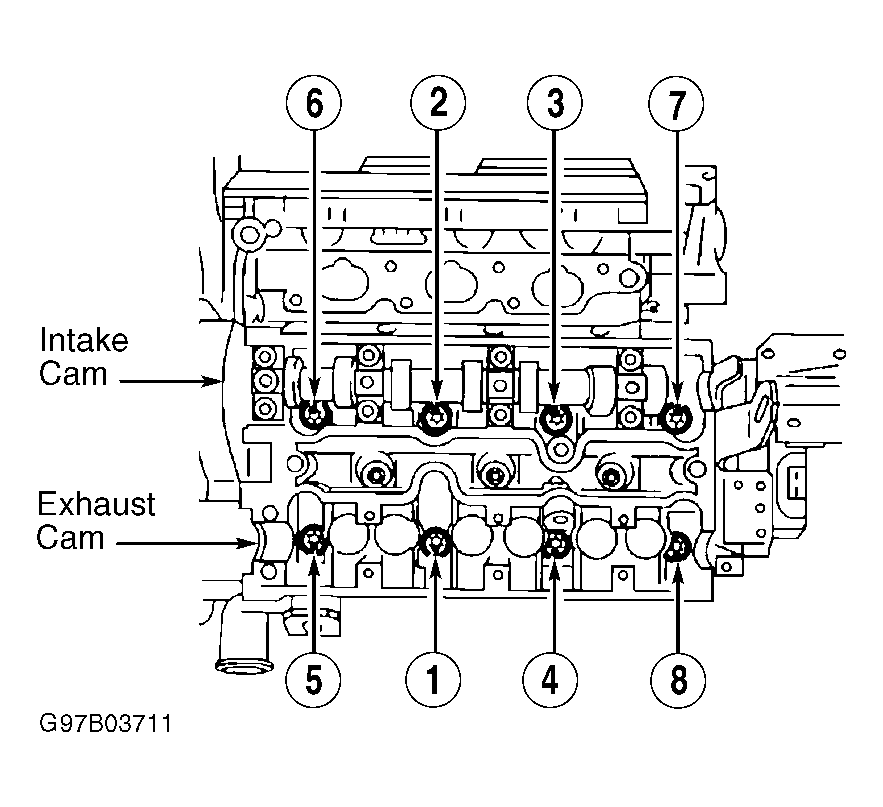

| Cylinder Head Bolt (1) | ||||
| Step 1 | 18 (24) | |||
| Step 2 | Additional 90 degrees | |||
| Step 3 | Additional 90 degrees | |||
| Step 4 | Additional 90 degrees | |||
| Step 5 | Additional 15 degrees | |||
| Engine Oil Cover Bolt | 22 (30) | |||
| Exhaust Manifold Nut | 15 (20) | |||
| Flex Plate Bolt | ||||
| Step 1 | 48 (65) | |||
| Step 2 | Additional 30 degrees | |||
| Step 3 | Additional 15 degrees | |||
| Generator Mounting Bolt | 30 (41) | |||
| Harmonic Balancer | 15 (20) | |||
| Intake Manifold Bolt | 15 (20) | |||
| Intake Manifold Spacer Bolt | 15 (20) | |||
| Engine Mounts | ||||
| Lower | 41 (56) | |||
| Upper | 30 (41) | |||
| Oil Filter Cap-To-Oil Filter Housing | 11 (15) | |||
| Oil Pan Drain Plug | 18 (24) | |||
| Serpentine Belt Tensioner Bolt | 30 (41) | |||
| Spark Plug | 18 (24) | |||
| Thermostat Housing Bolt | 15 (20) | |||
| Timing Belt Tensioner Bracket Bolt | 30 (41) | |||
| Timing Belt Tensioner Fastening Nut | 15 (20) | |||
| Torsional Bearing Bridge Bolt | 15 (20) | |||
| INCH Lbs (N.m) | ||||
| Camshaft Bearing Cap Bolt | 71 (8) | |||
| Ignition Coil Bolt | 71 (8) | |||
| Intake Plenum Bolt | 71 (8) | |||
| Intake Plenum Switchover Valve Bolt | 71 (8) | |||
| Oil Intake Pipe Bolt | 71 (8) | |||
| Oil Pan Baffle Bolt | 71 (8) | |||
| Oil Pan Bolt | 71 (8) | |||
| Rear Timing Cover Bolt | 71 (8) | |||
| Timing Belt Cover Bolt | 71 (8) | |||
| Valve Cover Bolt | 71 (8) | |||
| Water Pump Pulley Bolt | 71 (8) | |||
| Wiring Harness Support Bracket Bolt | 71 (8) | |||
|
||||
