DTC B3708: Front Washer Motor Input Circuit High: Notes

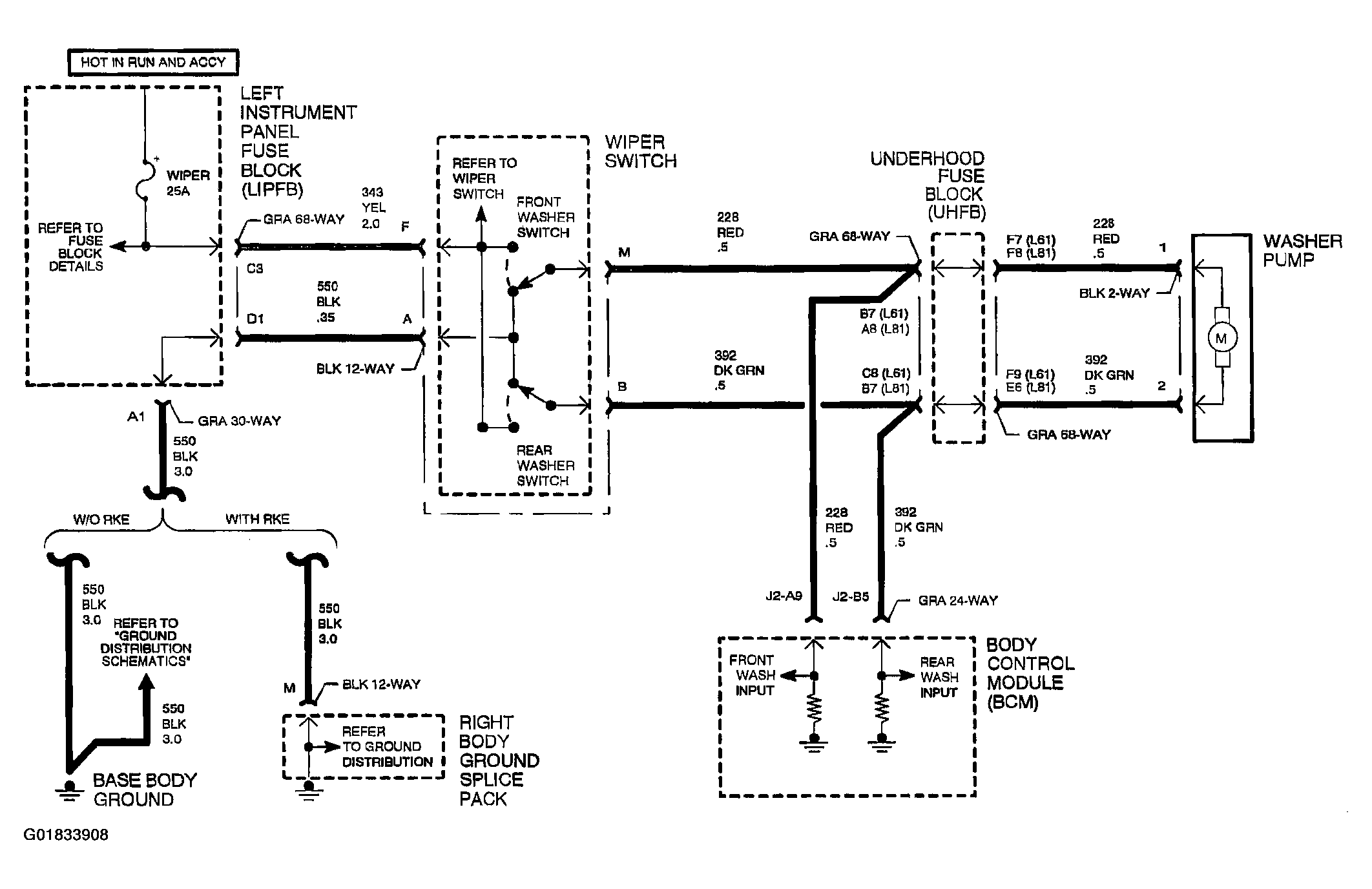

Fig 1: B3708 - Front Washer Motor Input Circuit High Schematic

G01833908

Courtesy of GENERAL MOTORS CORP.
