Intake Plenum (3.0L): Installation
WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

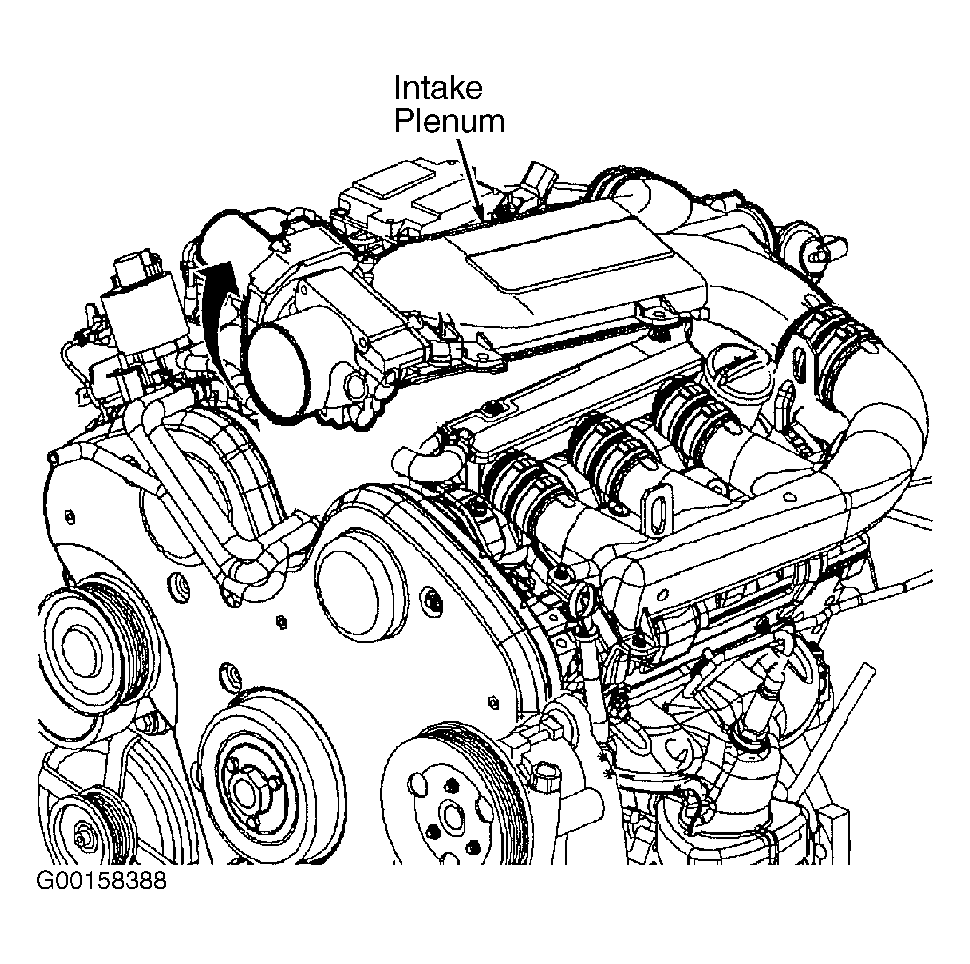

- Install rear intake manifold runner, if necessary. Install throttle body to intake plenum, if removed. Install intake plenum and intake plenum bolts. Tighten bolts to specification. See TORQUE SPECIFICATIONS .
- Connect coolant hoses to throttle body. Install EGR pipe connection. Tighten EGR pipe bolts to specification. Install front intake manifold runner and tighten clamps. See INTAKE MANIFOLD RUNNER (3.0L) . Connect negative battery cable. Install front intake manifold runner bolts. Tighten bolts to specification.
