Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300 and 2003 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

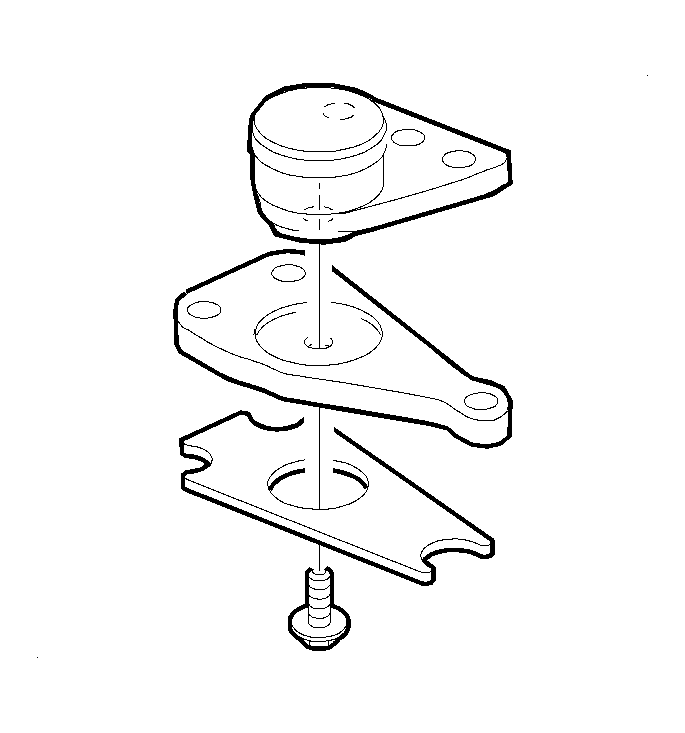

Fig 1: Exploded View Of Engine Mount Assembly

Courtesy of GENERAL MOTORS CORP.

IMPORTANT: The isolation must be attached to the engine mount. Replace the isolation pad if necessary.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Assemble the engine mount, engine mount bracket and isolation pad.
Tighten: Tighten the engine mount to bracket bolt to 90 N.m (66 lb ft).

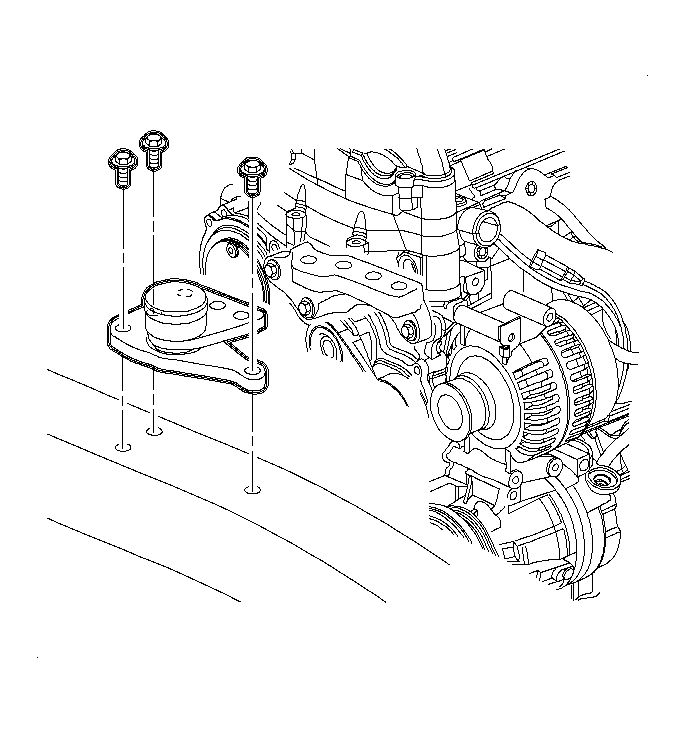

Fig 2: Removing & Installing Engine Mount Assembly

Courtesy of GENERAL MOTORS CORP.

Install the engine mount to the vehicle. Hand tighten the bolts at this time.

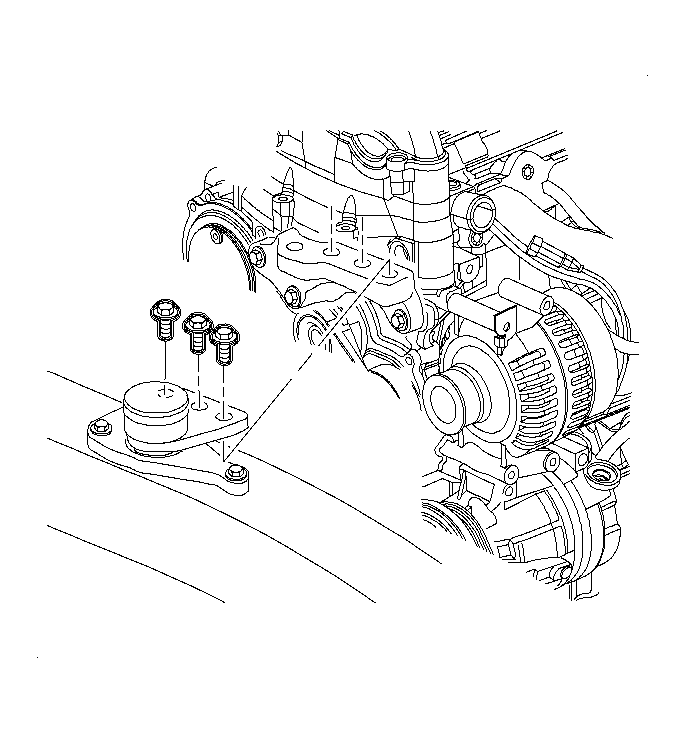

Fig 3: Locating Engine Mount-To-Intermediate Bracket Bolts

Courtesy of GENERAL MOTORS CORP.

Install the engine mount to engine bracket bolts.
Tighten:
- Tighten the engine mount to bracket bolts to 55 N.m (41 lb ft).
- Tighten the engine mount to vehicle bolts to 55 N.m (41 lb ft).

Fig 4: Proper Installation Of Engine Support Fixture (L81 - V6)

Courtesy of GENERAL MOTORS CORP.

Remove the engine support.

Fig 5: Removing & Installing Air Cleaner Assembly

Courtesy of GENERAL MOTORS CORP.

Install the air cleaner assembly.
