Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300 and 2003 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.

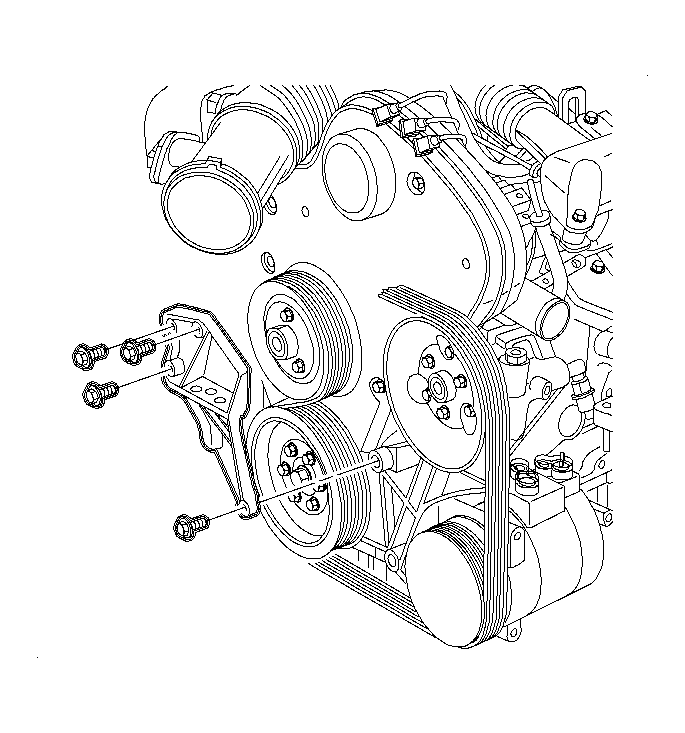

    Fig 1: Removing & Installing Engine Mount Bracket
    GM891739Courtesy of GENERAL MOTORS CORP.
  1. Install the engine mount bracket to the engine.

    Tighten:  Tighten the engine mount bracket to engine bolts to 90 N.m (66 lb ft).

    2. Fig 2: Exploded View Of Engine Mount Assembly
    GM892942Courtesy of GENERAL MOTORS CORP.
  2. Install the engine mount. Refer to Engine Mount Replacement .
