Installation Procedure

WARNING: This page is about a different car, the 2004 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

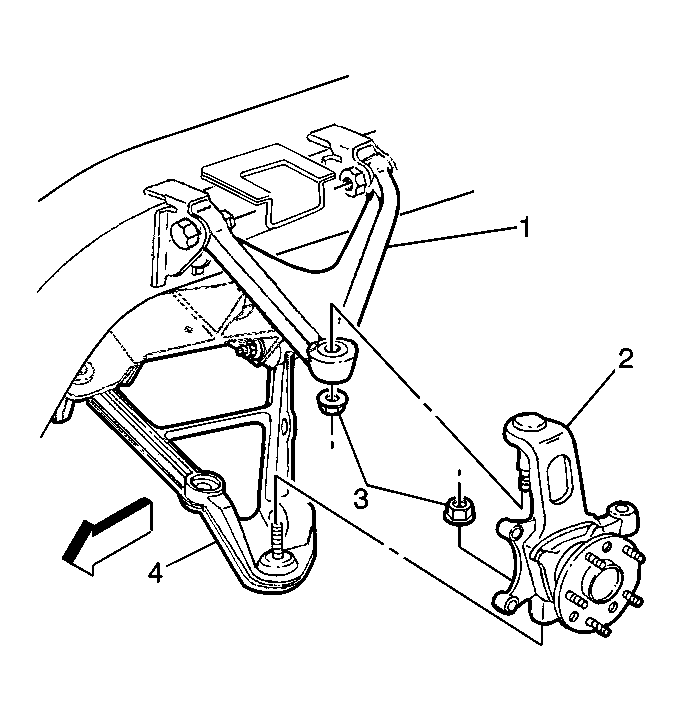

Fig 1: Upper Control Arm, Lower Control Arm Ball Joint Stud & Suspension Knuckle

Courtesy of GENERAL MOTORS CORP.

Install the suspension knuckle (2) to the lower control arm (4) ball joint stud. Refer to Rear Axle Lower Control Arm Replacement .
Install the suspension knuckle ball joint stud (2) to the upper control arm (1). Refer to Rear Axle Upper Control Arm Replacement .
Install the spindle nut, washer and retainer. Refer to Wheel Drive Shaft Replacement in Wheel Drive Shafts.

Fig 2: Outer Tie Rod End, Brake Rotor & Caliper

Courtesy of GENERAL MOTORS CORP.

Install the outer tie rod end to the suspension knuckle. Refer to Tie Rod Replacement (Outer End) or Tie Rod Replacement (Suspension Link) .
Install the brake rotor and caliper. Refer to Brake Caliper Bracket Replacement - Rear and Brake Rotor Replacement - Front in Disc Brakes.

Fig 3: View Of Rear Wheel Speed Sensor Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the wheel speed sensor electrical connector.

Fig 4: Shock Absorber ESC Harness Connector

Courtesy of GENERAL MOTORS CORP.

Connect the shock absorber solenoid electrical connector, if equipped.

Fig 5: ESC Position Sensor Links

Courtesy of GENERAL MOTORS CORP.

Connect the ESC sensor link, if equipped.
Install the tire and wheel assembly. Refer to Tire and Wheel Removal and Installation in Tires and Wheels.
Lower the vehicle.
Perform a rear wheel alignment. Refer to Measuring Wheel Alignment in Wheel Alignment.
