Lubrication System (Oil Flow)
Lubrication System (Oil Flow)

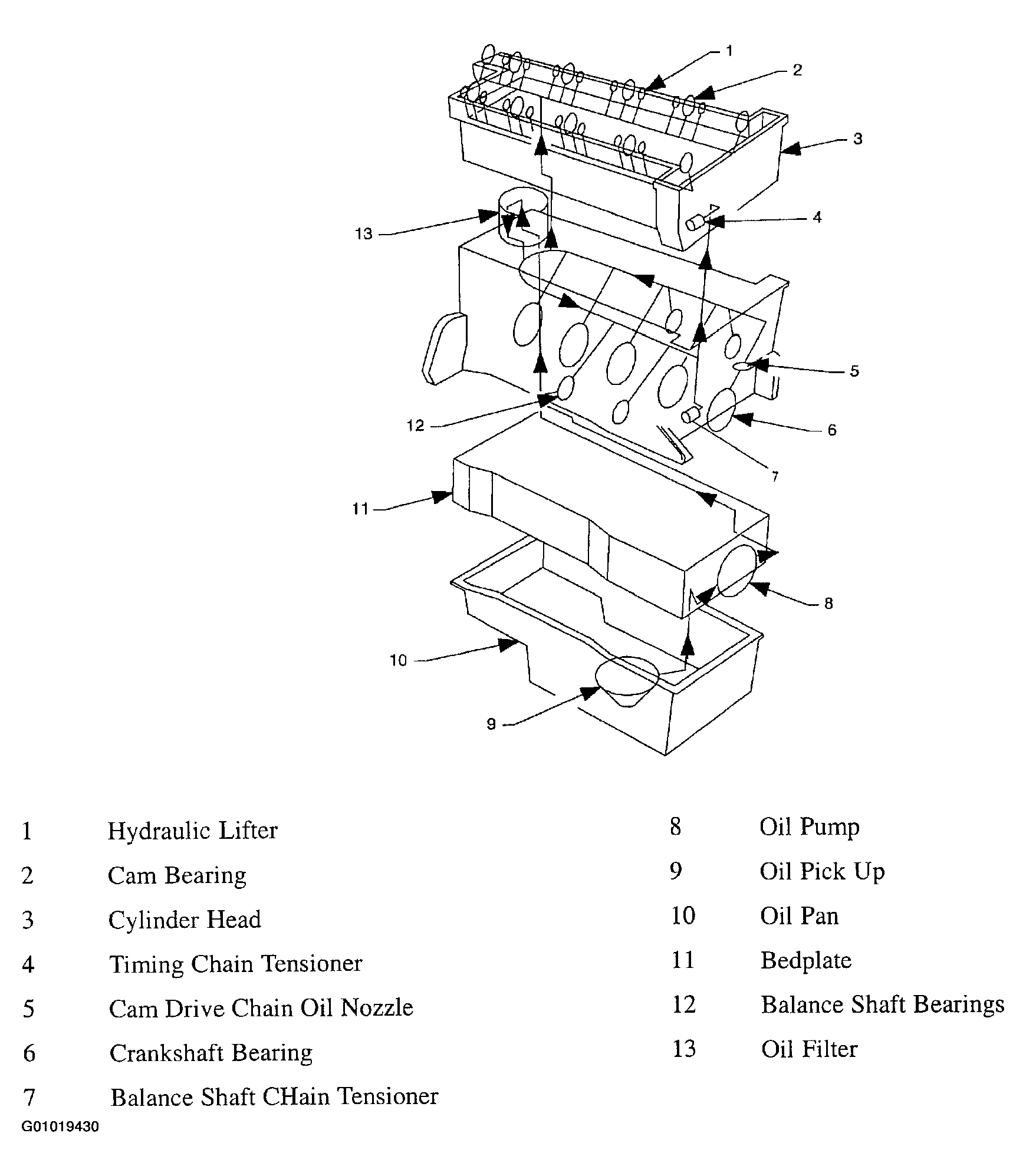

Fig 1: Lubrication System (Oil Flow)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
