Home >> Saturn >> 2002 >> L200 Automatic >> Repair and Diagnosis >> Electrical >> Starter >> Starting System >> System Tests >> V6 >> Test D: Click/No Crank

Test D: Click/No Crank

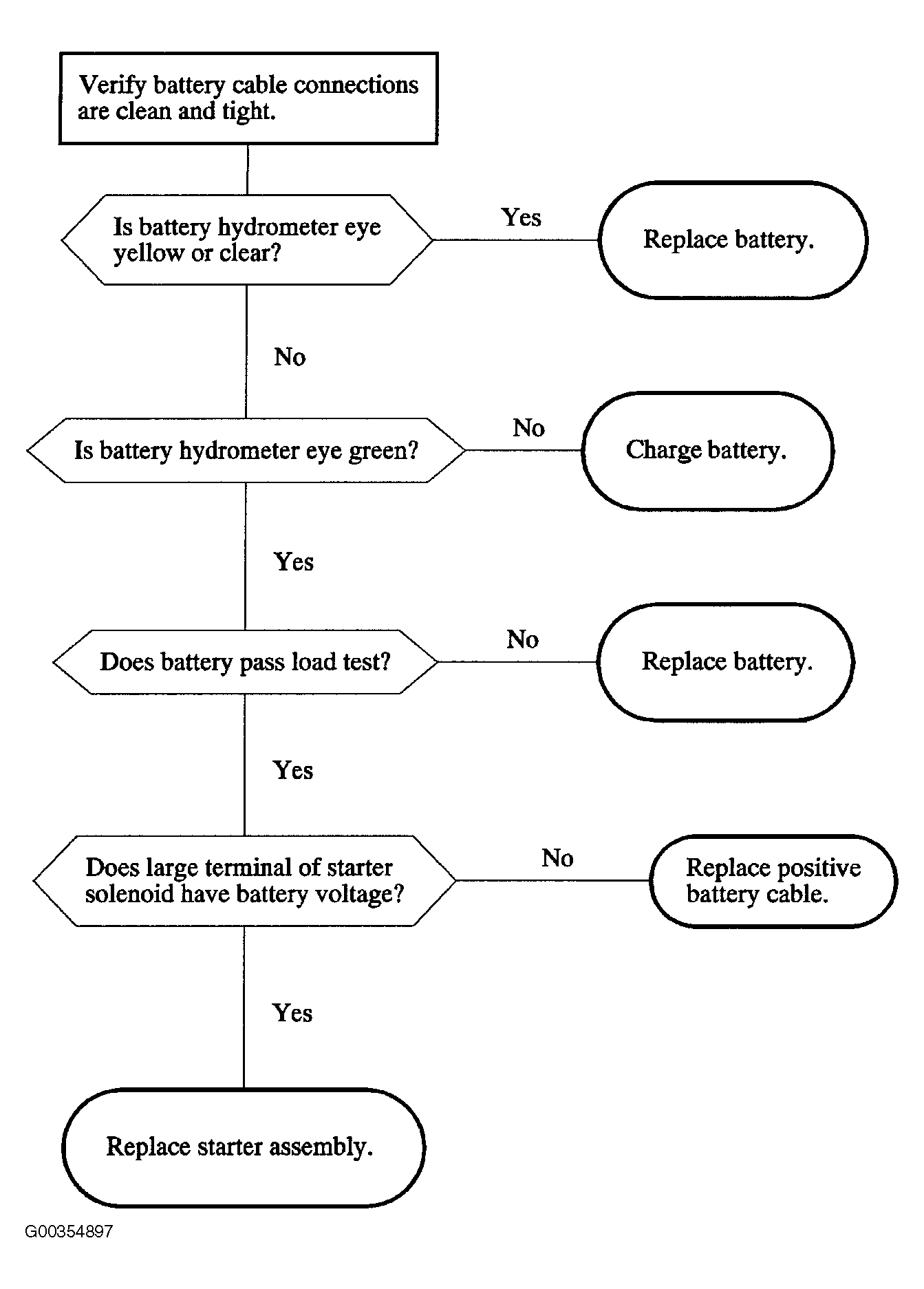

Fig 1: Click/No Crank Test (V6)

G00354897

Courtesy of GENERAL MOTORS CORP.
