Horn Connector Face Views
Horn Connector Face Views

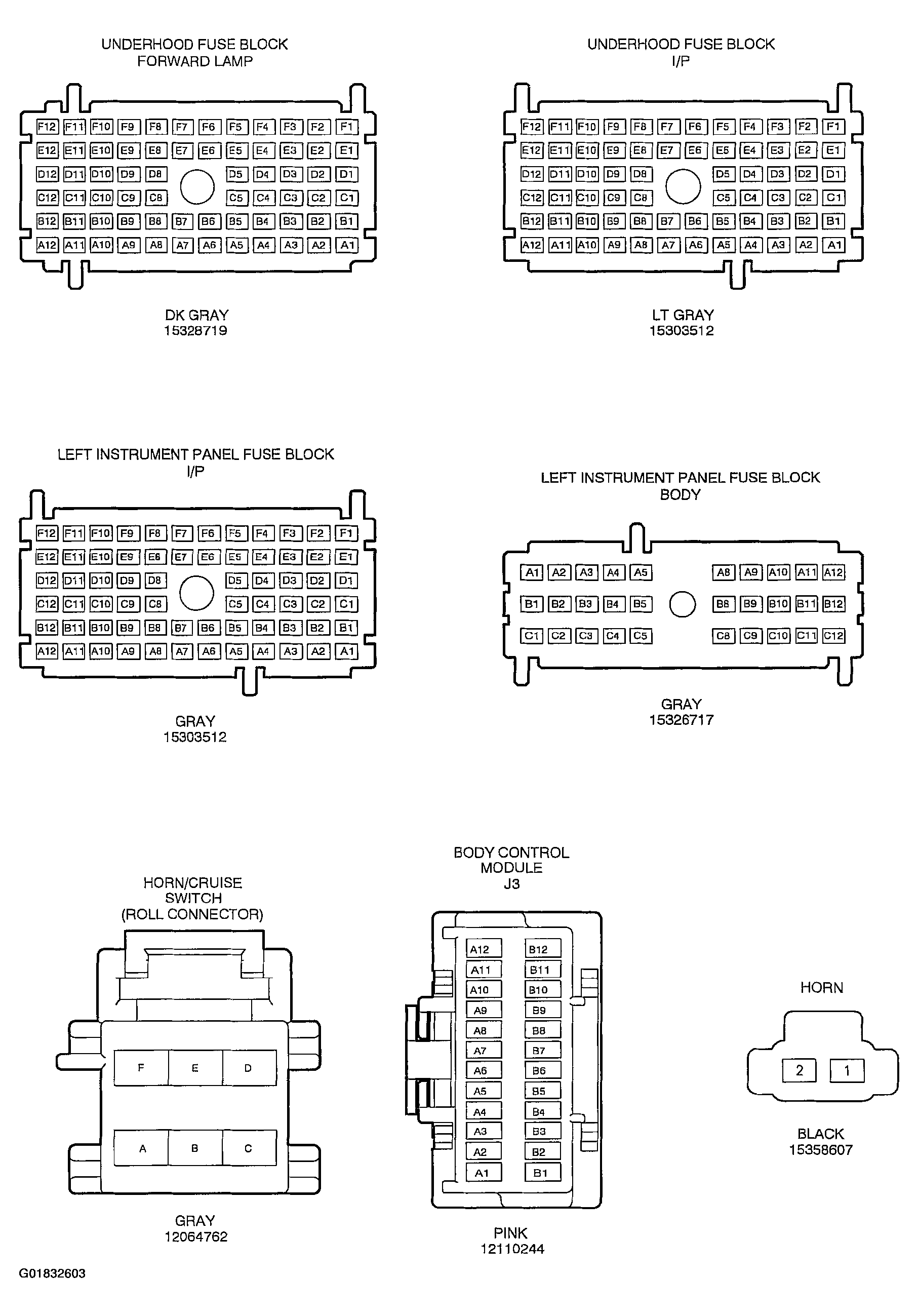

Fig 1: Horn Connector Face Views
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
