Abs Control Assembly (EBTCM & Bpm): Removal

Disconnect negative battery cable.
CAUTION: Plug open brake pipes to prevent brake fluid loss and contamination.
Disconnect brake pipe nuts from Brake Pressure Modulator Valve (BPMV).

Fig 1: Disconnecting Brake Pipe Nuts From Brake Pressure Modulator Valve
Courtesy of GENERAL MOTORS CORP.

CAUTION: After removing brake pipe nuts, do not excessively pull or bend brake pipes away from brake control assembly.

CAUTION: Plug open brake pipes to prevent brake fluid loss and contamination.
Disconnect brake pipe nuts from master cylinder.

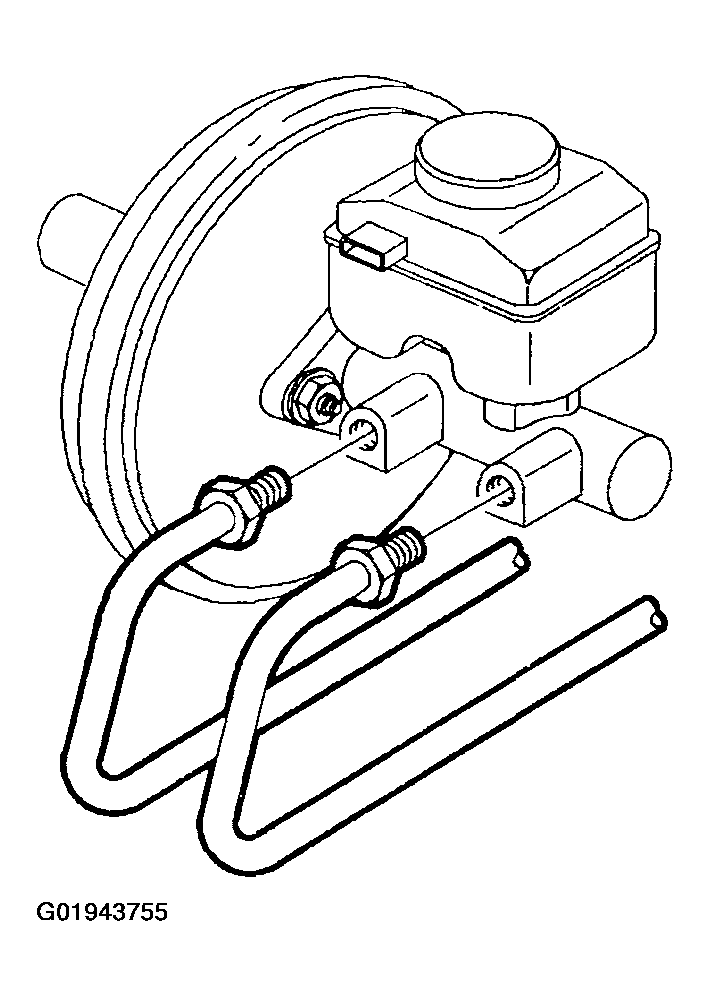

Fig 2: Disconnecting Brake Pipe Nuts From Master Cylinder

Courtesy of GENERAL MOTORS CORP.

Slide out locking tab and disconnect Electronic Brake and Traction Control Module (EBTCM) electrical connector.

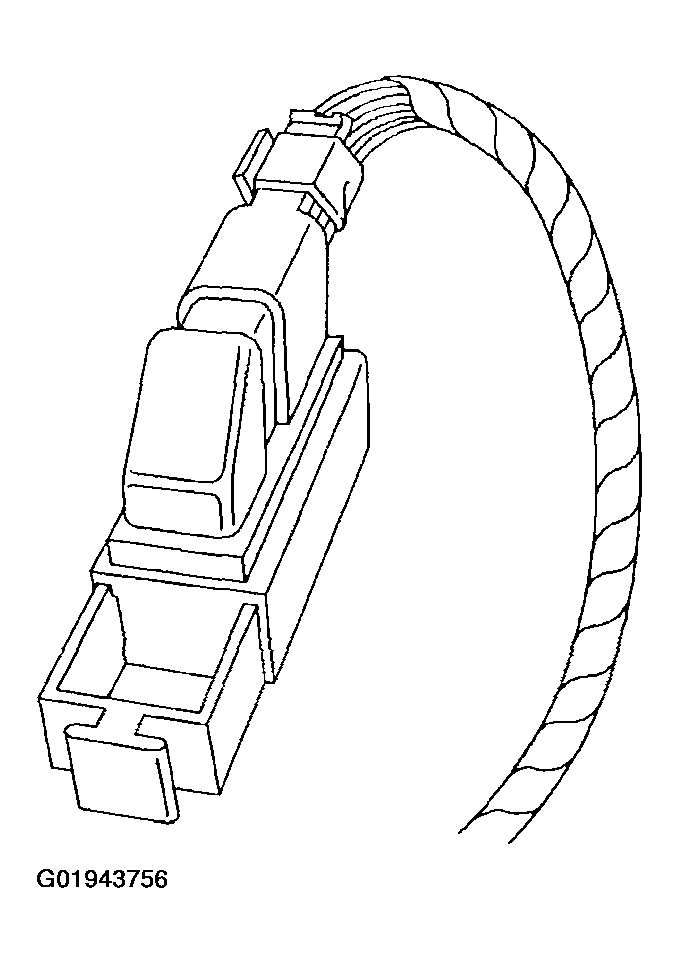

Fig 3: Disconnecting EBTCM Electrical Connector

Courtesy of GENERAL MOTORS CORP.

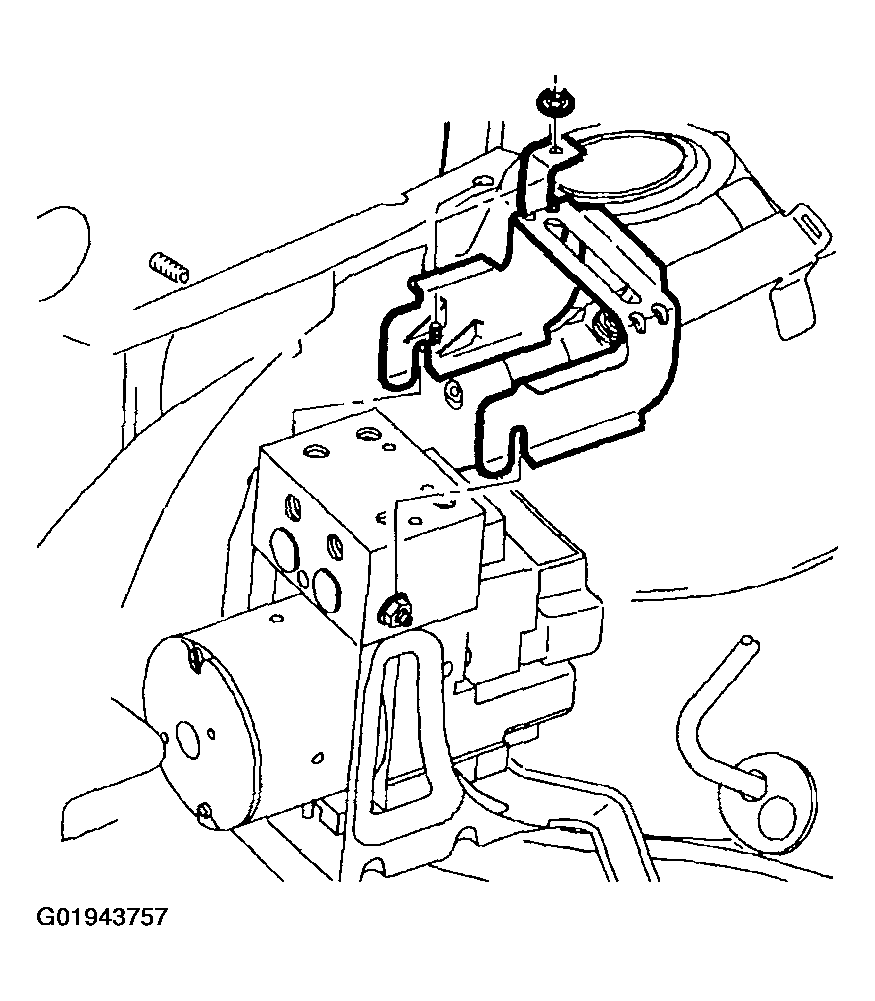

Remove ABS control module mounting nuts and bracket.
CAUTION: Be careful not to bend brake pipes.
Remove ABS control module from vehicle.

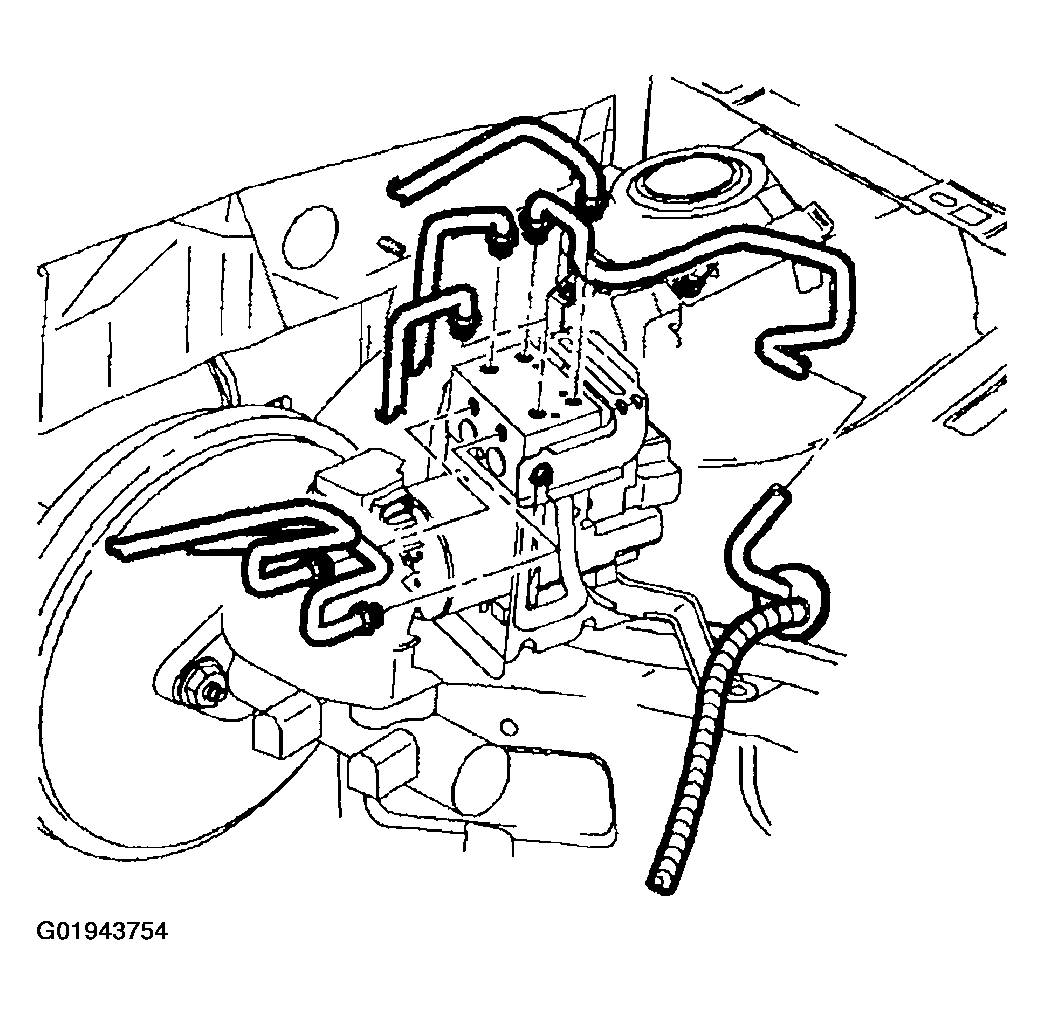

Fig 4: Removing ABS Control Module

Courtesy of GENERAL MOTORS CORP.
