Front Seat Back Frame/Pad/Cover: Installation

  1. If seat cover is being replaced, transfer seat cover upper wire to new seat cover.

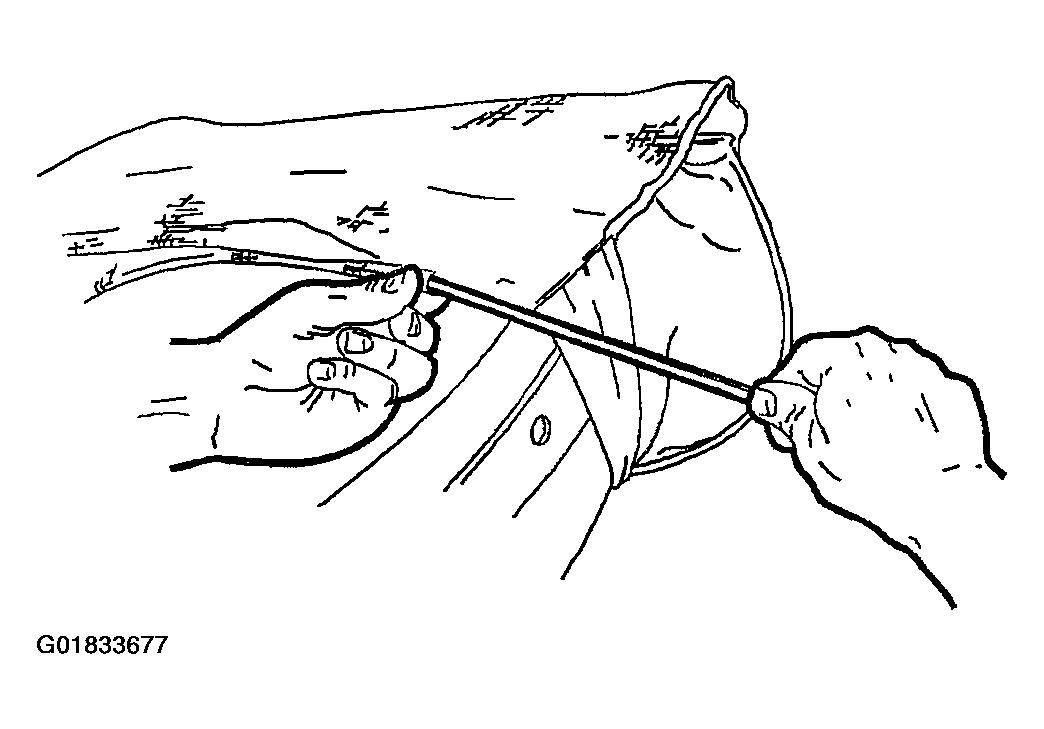

    2. Fig 1: Transferring Seat Cover Upper Wire To New Seat Cover
    G01833677Courtesy of GENERAL MOTORS CORP.
  2. Position seat back cover to foam pad.
  3. Starting at the top, position seat cover over seat back frame.

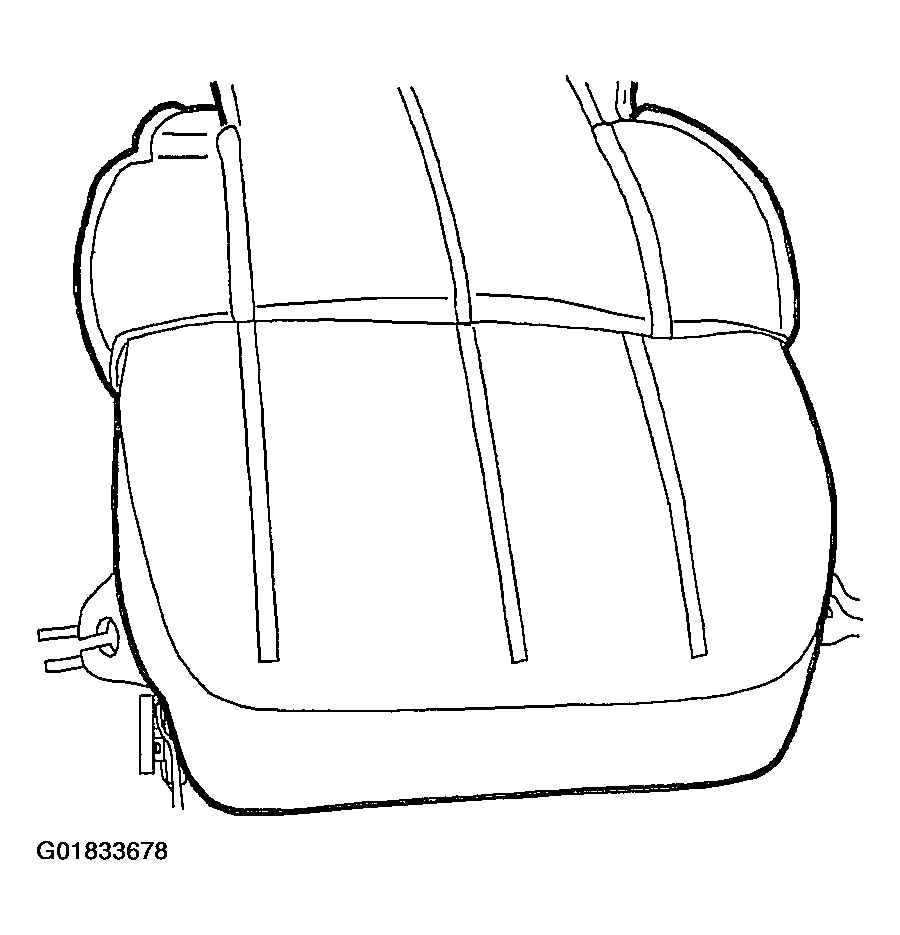

    4. Fig 2: Positioning Seat Cover Over Seat Back Frame
    G01833678Courtesy of GENERAL MOTORS CORP.
  4. Pull down on cover checking that the cover is centered on the seat back frame.
  5. Install seat back cover upper wire to retainers.

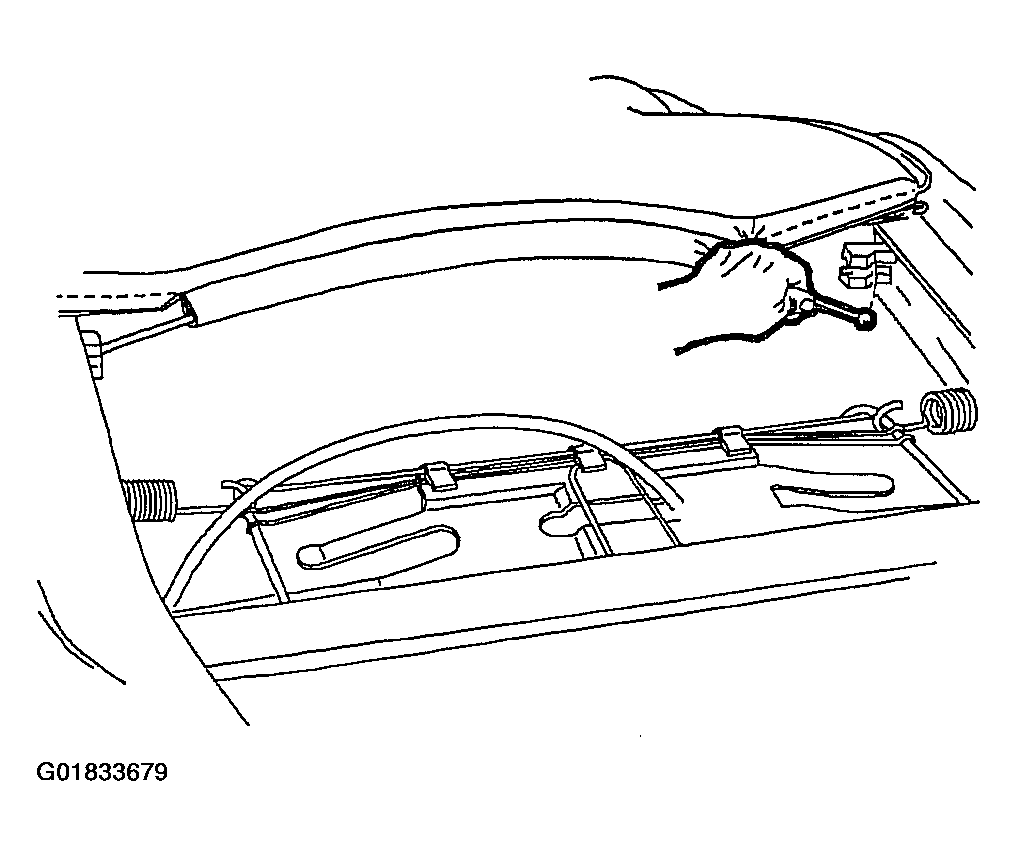

    6. Fig 3: Installing Seat Back Cover Upper Wire To Retainers
    G01833679Courtesy of GENERAL MOTORS CORP.
  6. Pull cover around the seat frame lower and secure cover to frame with J-strip.
  7. Apply pressure at hook-and-loop fastener locations to seat cover to seat back pad.

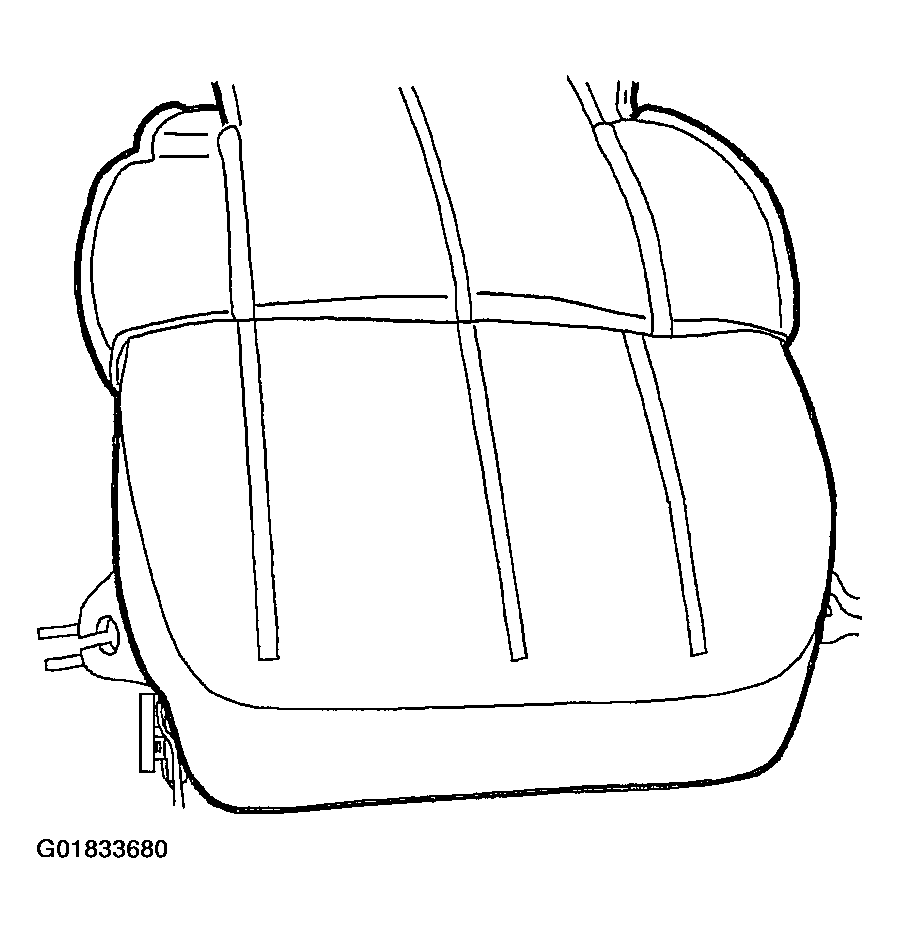

    8. Fig 4: Seating Cover To Seat Back Pad
    G01833680Courtesy of GENERAL MOTORS CORP.
  8. On vehicles with lumbar handle, cut a small hole at handle location to expose lumbar shaft.
  9. Install lumbar knob to lumbar shaft by firmly pushing on knob.

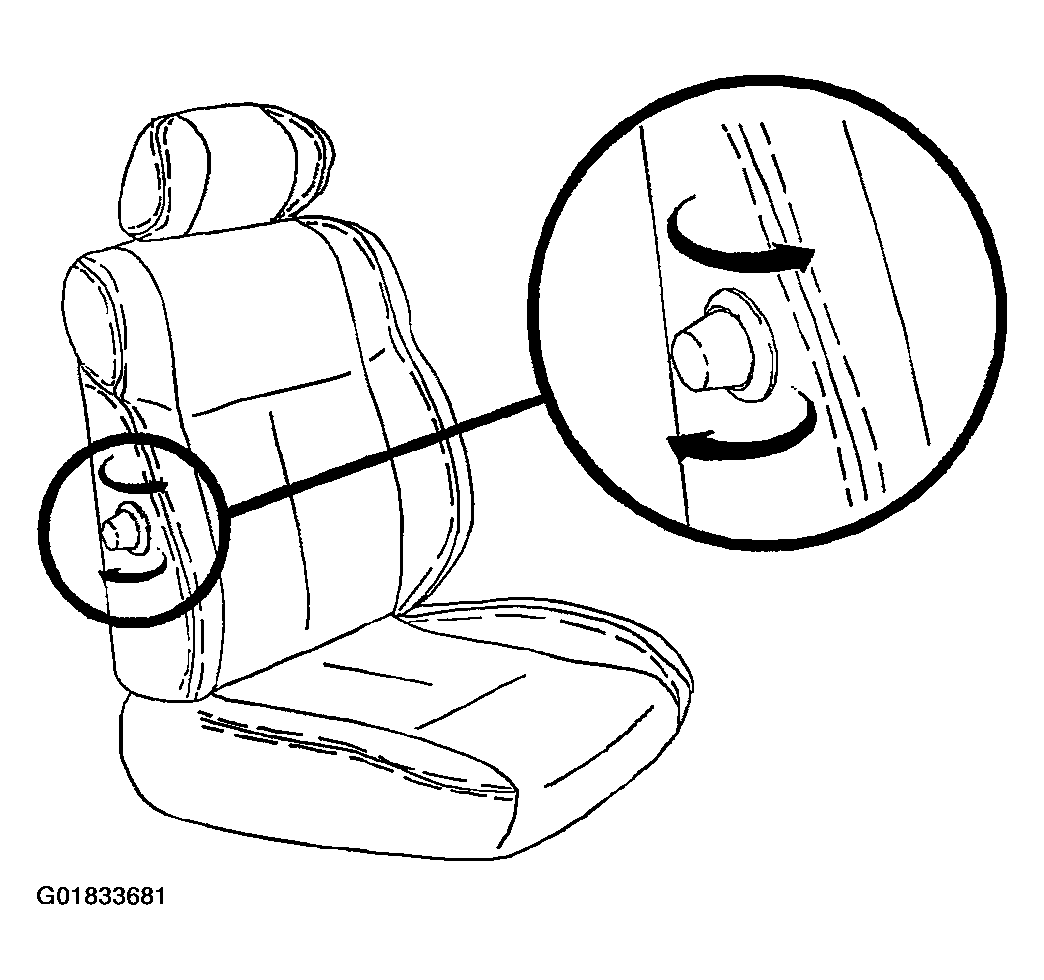

    10. Fig 5: Installing Lumbar Knob To Lumbar Shaft
    G01833681Courtesy of GENERAL MOTORS CORP.
  10. On power seat and heated seat, route and connect power seat recliner and heat pod harness to seat cushion wiring harness.

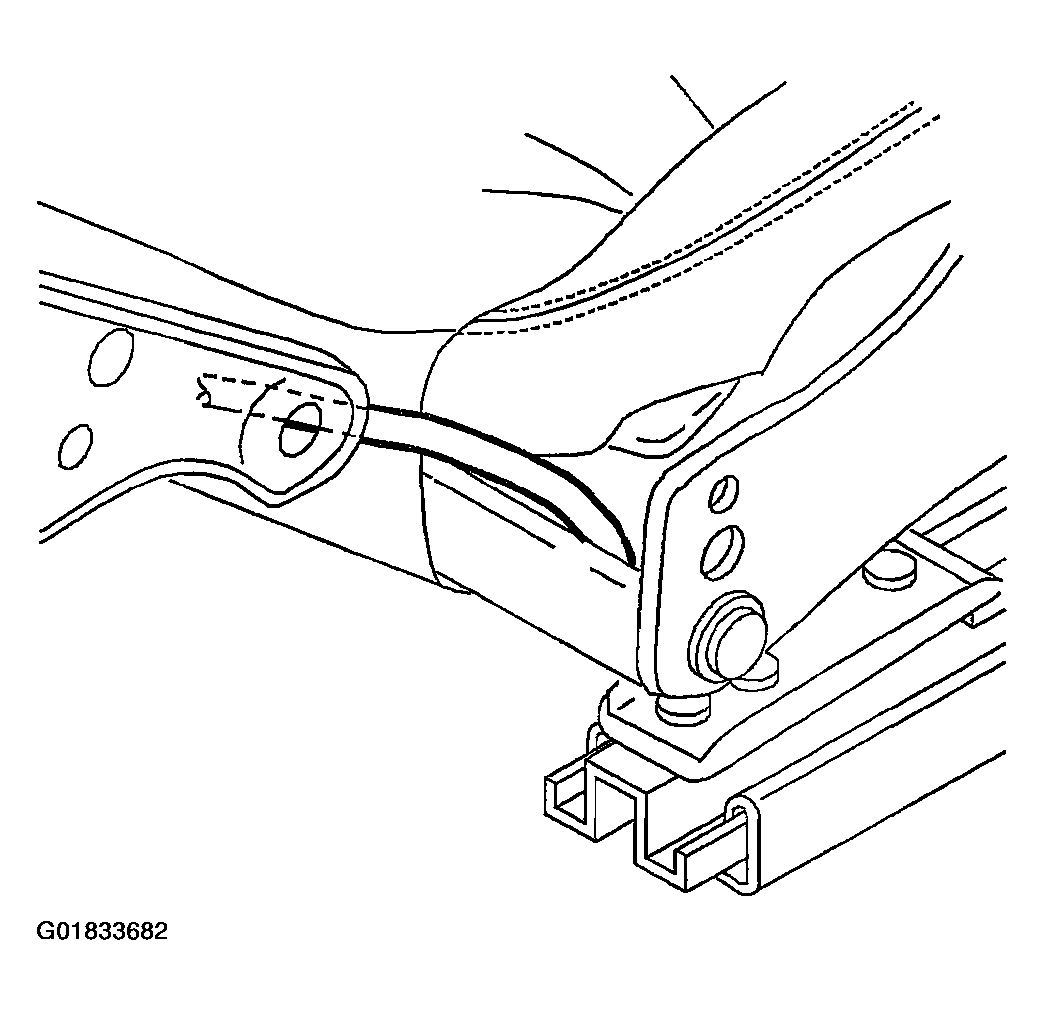

    11. Fig 6: Connecting Power Seat Recliner & Heat Pod Harness To Seat Cushion Wiring Harness
    G01833682Courtesy of GENERAL MOTORS CORP.
  11. Install seat back assembly to seat adjuster. Tighten recliner fasteners to 35 N.m (26 ft lbs).
    12. Fig 7: Installing Seat Back Assembly To Seat Adjuster
    G01833683Courtesy of GENERAL MOTORS CORP.
  12. Install inner recliner cover. Tighten inner recliner cover fasteners to 2.5 N.m (22 in lbs).

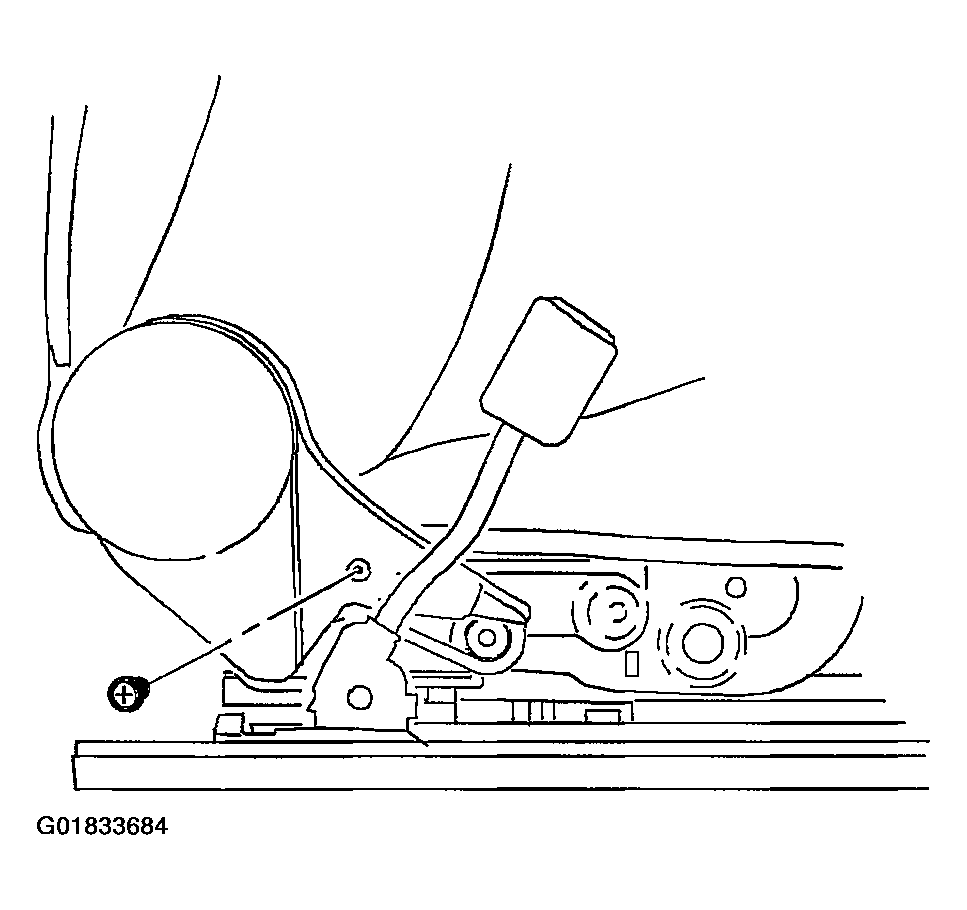

    13. Fig 8: Installing Inner Recliner Cover
    G01833684Courtesy of GENERAL MOTORS CORP.
  13. Install outer valance panel. Refer to OUTER VALANCE PANEL  .

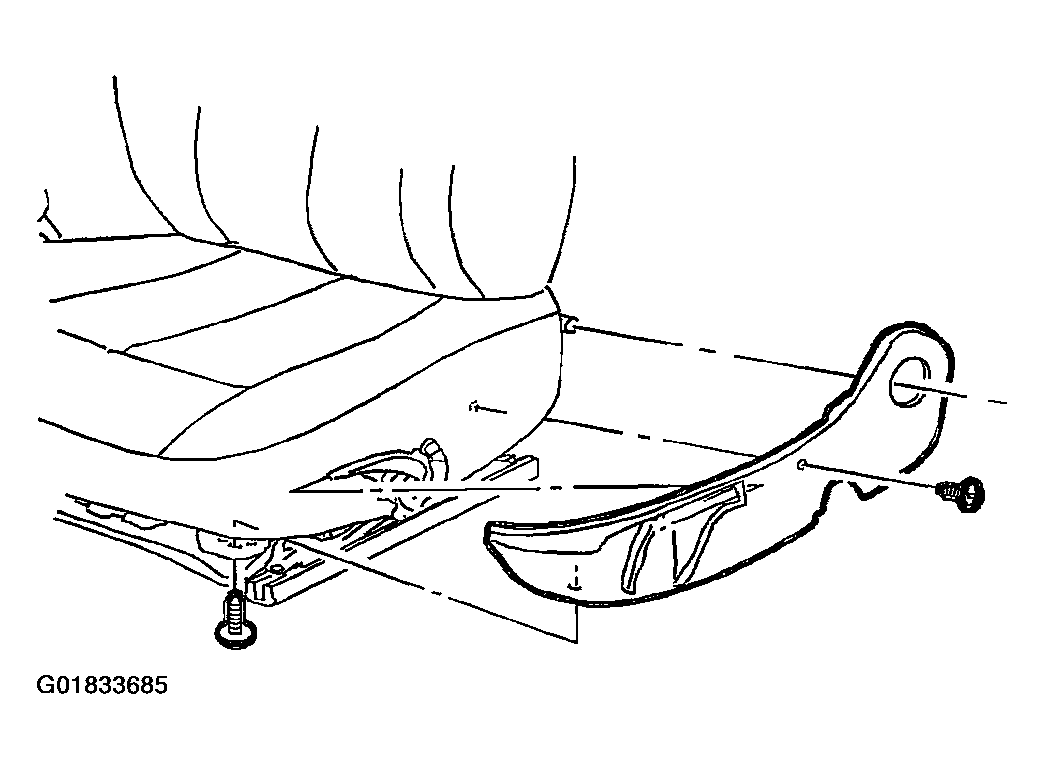

    14. Fig 9: Installing Outer Valance Panel
    G01833685Courtesy of GENERAL MOTORS CORP.
  14. Align headrest support rods with holes in headrest sleeves.
  15. Push headrest into sleeves to engage support rods.
    16. Fig 10: Engaging Support Rods
    G01833686Courtesy of GENERAL MOTORS CORP.
  16. Install seat into vehicle. Refer to FRONT SEAT  .

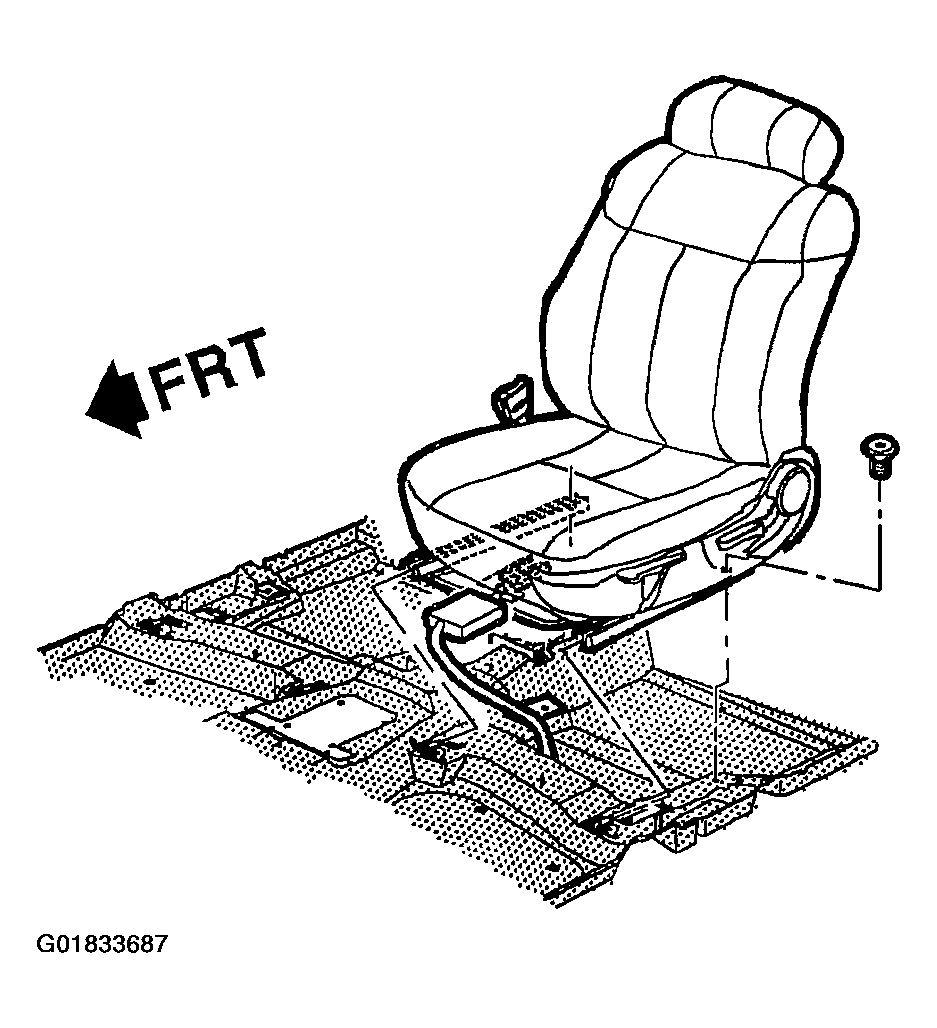

    17. Fig 11: Installing Seat Into Vehicle
    G01833687Courtesy of GENERAL MOTORS CORP.
