Engine Mechanical
>>
Mechanical
>>
General Information
>>
Specifications
>>
Engine Block (Back View)
Engine Block (Back View)

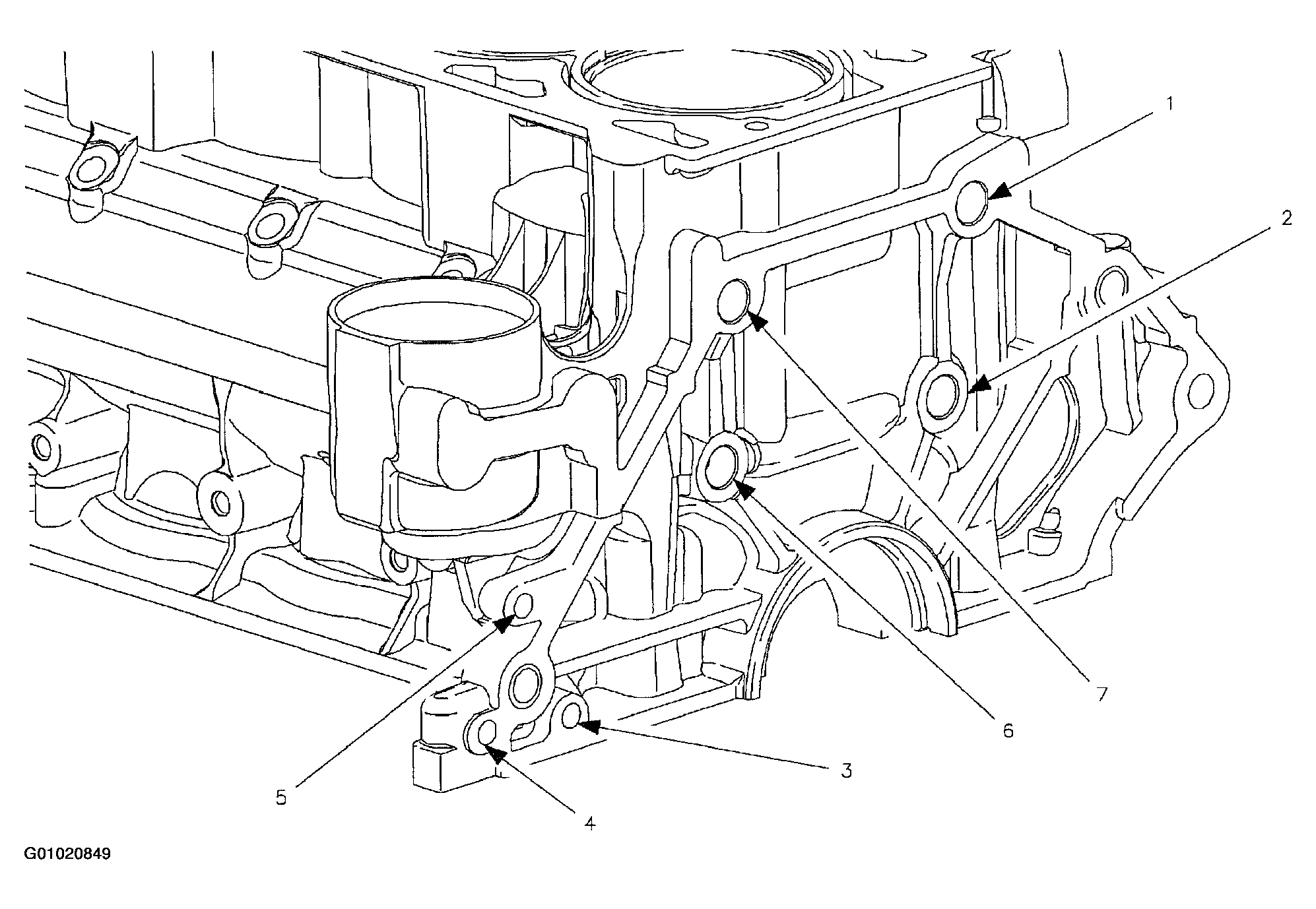

Fig 1: Engine Block (Back View)
Courtesy of GENERAL MOTORS CORP.

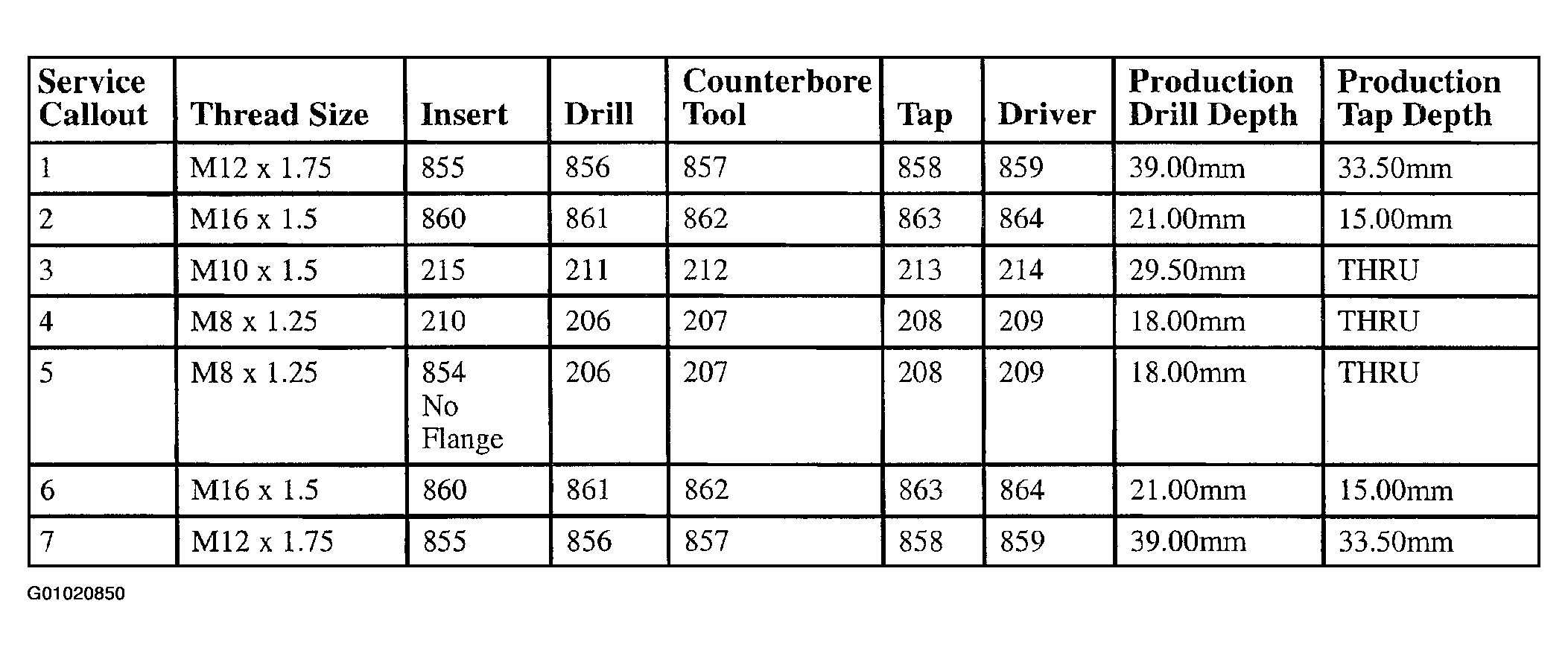

Fig 2: Engine Block (Back View) Specifications
Courtesy of GENERAL MOTORS CORP.
