LEMON Manuals
: Even more car manuals for everyone
Home
>>
Saturn
>>
2002
>>
L200 Automatic
>>
Repair and Diagnosis (Single Page)
>>
Engine Mechanical
>>
Mechanical
>>
General Information
>>
Specifications
>>
Design Specifications
Design Specifications

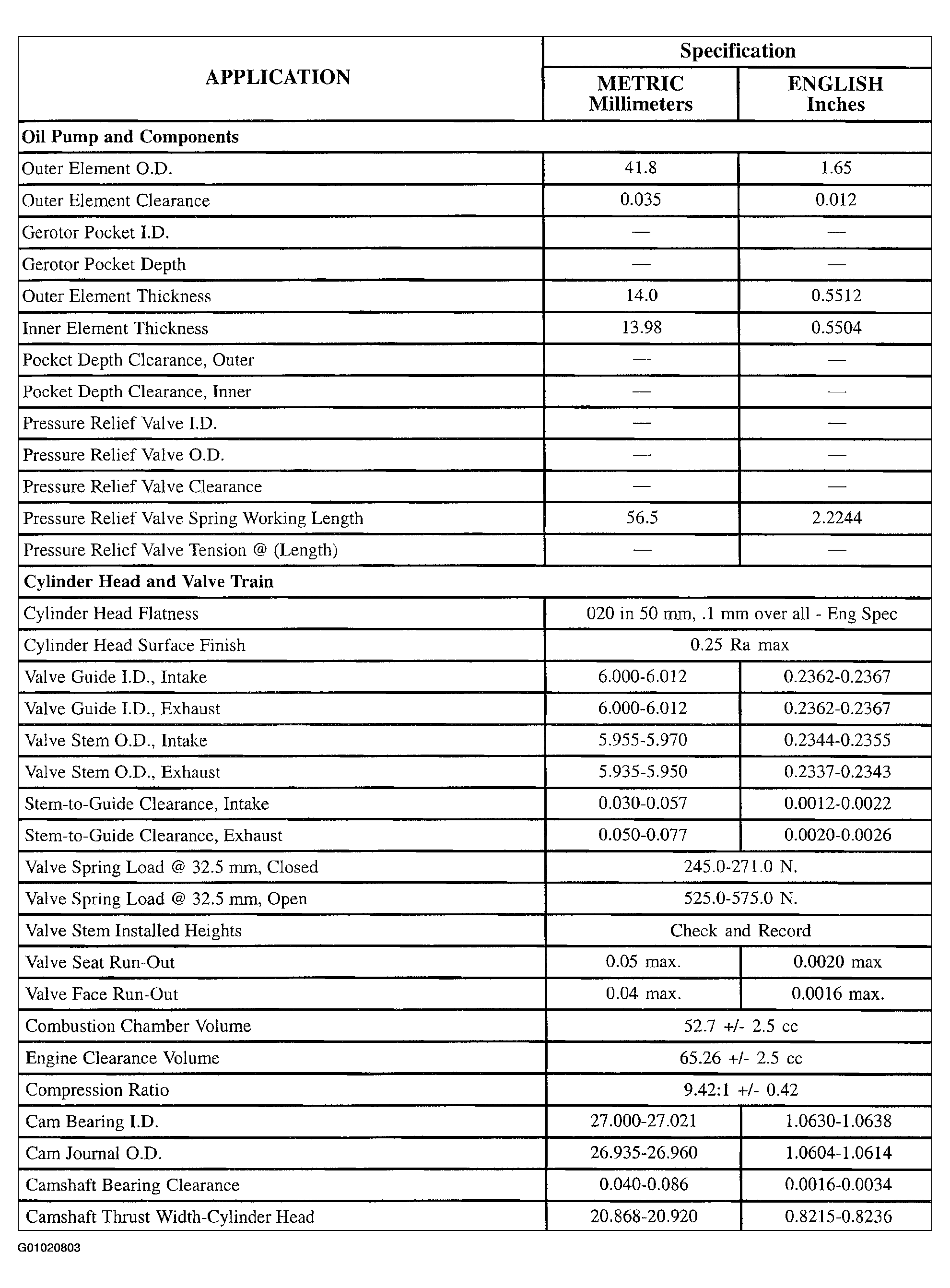

Fig 1: Design Specifications (1 Of 5)
Courtesy of GENERAL MOTORS CORP.

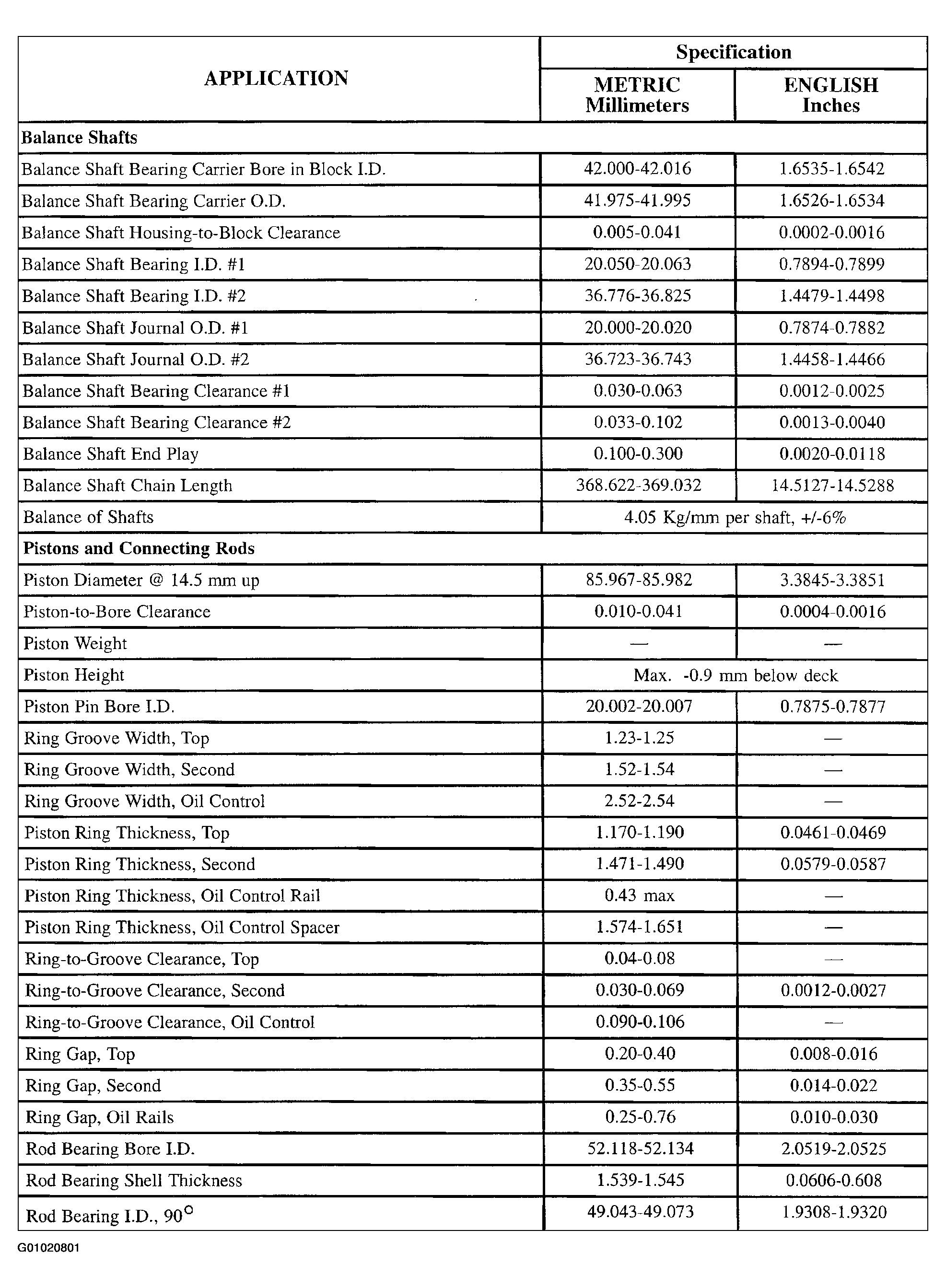

Fig 2: Design Specifications (2 Of 5)
Courtesy of GENERAL MOTORS CORP.

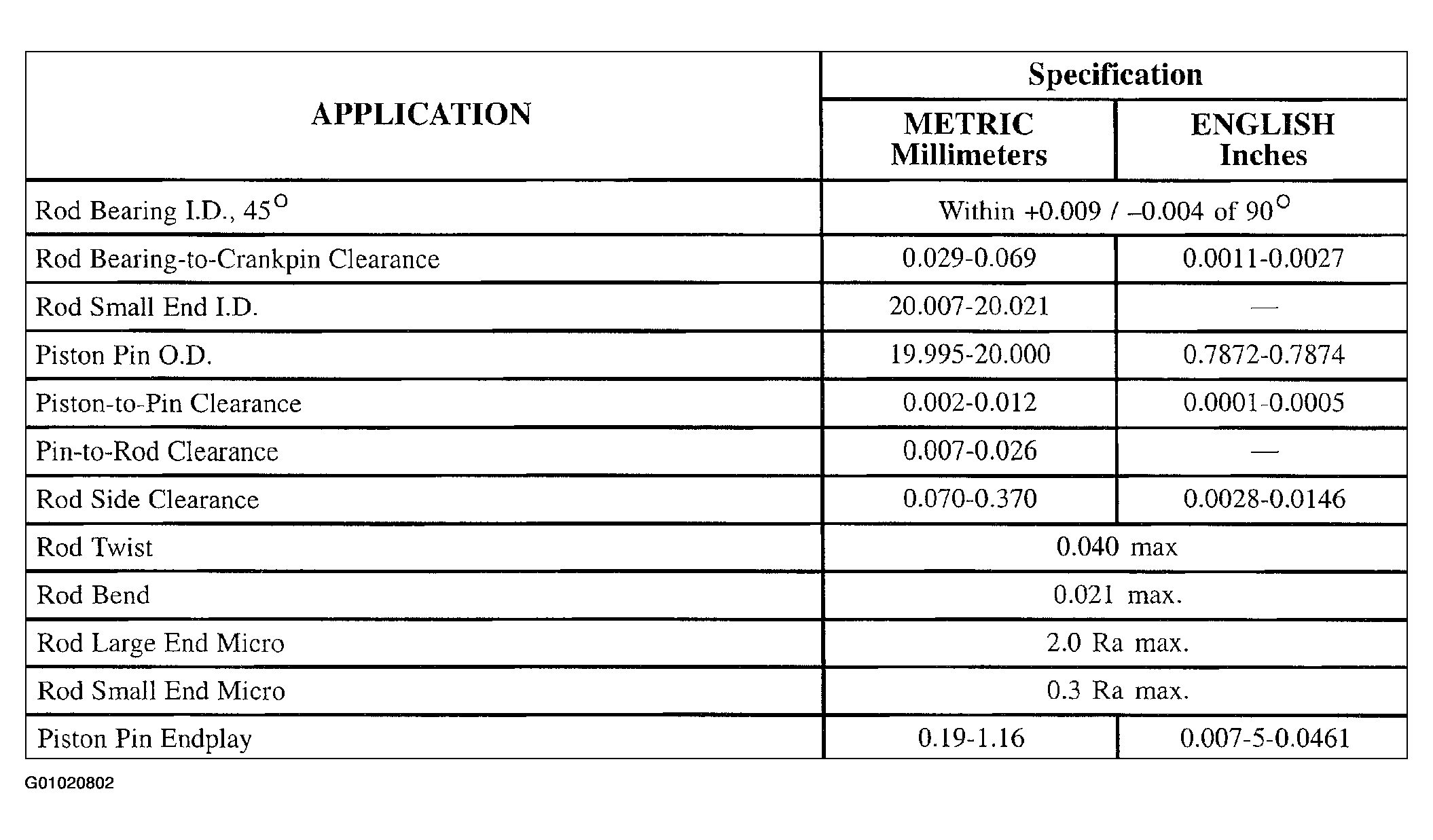

Fig 3: Design Specifications (3 Of 5)
Courtesy of GENERAL MOTORS CORP.

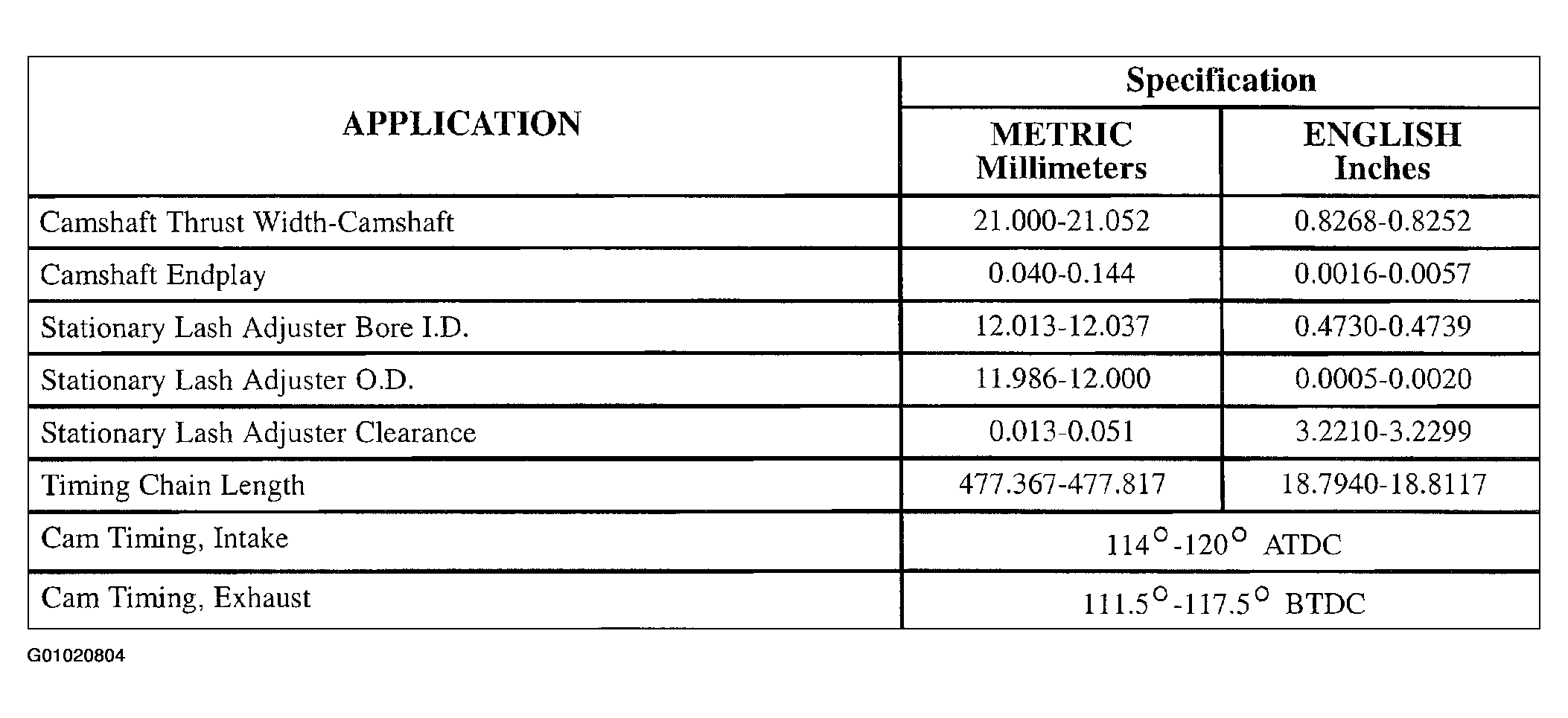

Fig 4: Design Specifications (4 Of 5)
Courtesy of GENERAL MOTORS CORP.

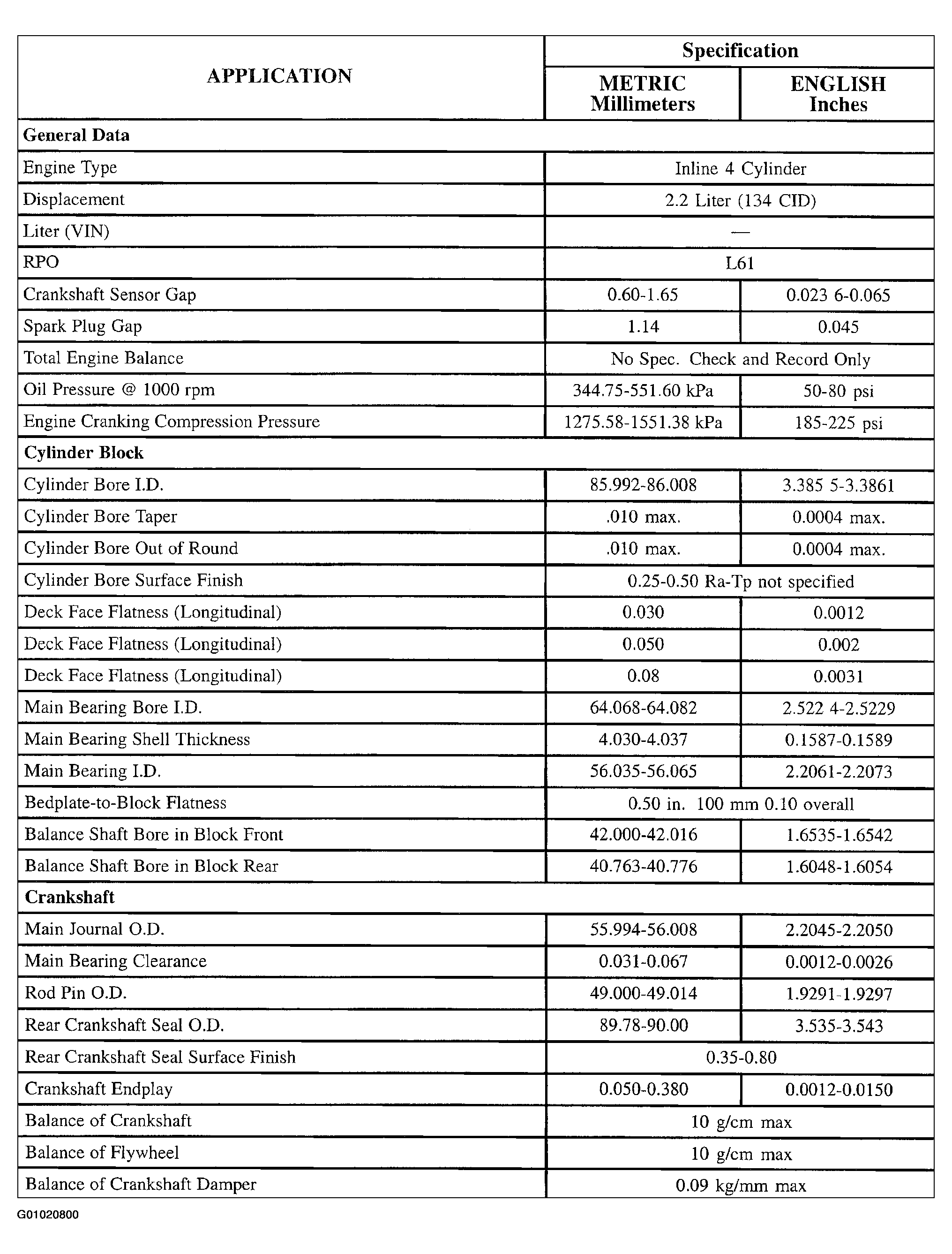

Fig 5: Design Specifications (5 Of 5)
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
