Ignition Module/PASSLOCK Sensor: Removal

  1. Disable the SIR system. Refer to DISABLING SYSTEM .
  2. Remove lock cylinder bezel from steering column shroud by carefully prying with a thin bladed screwdriver.

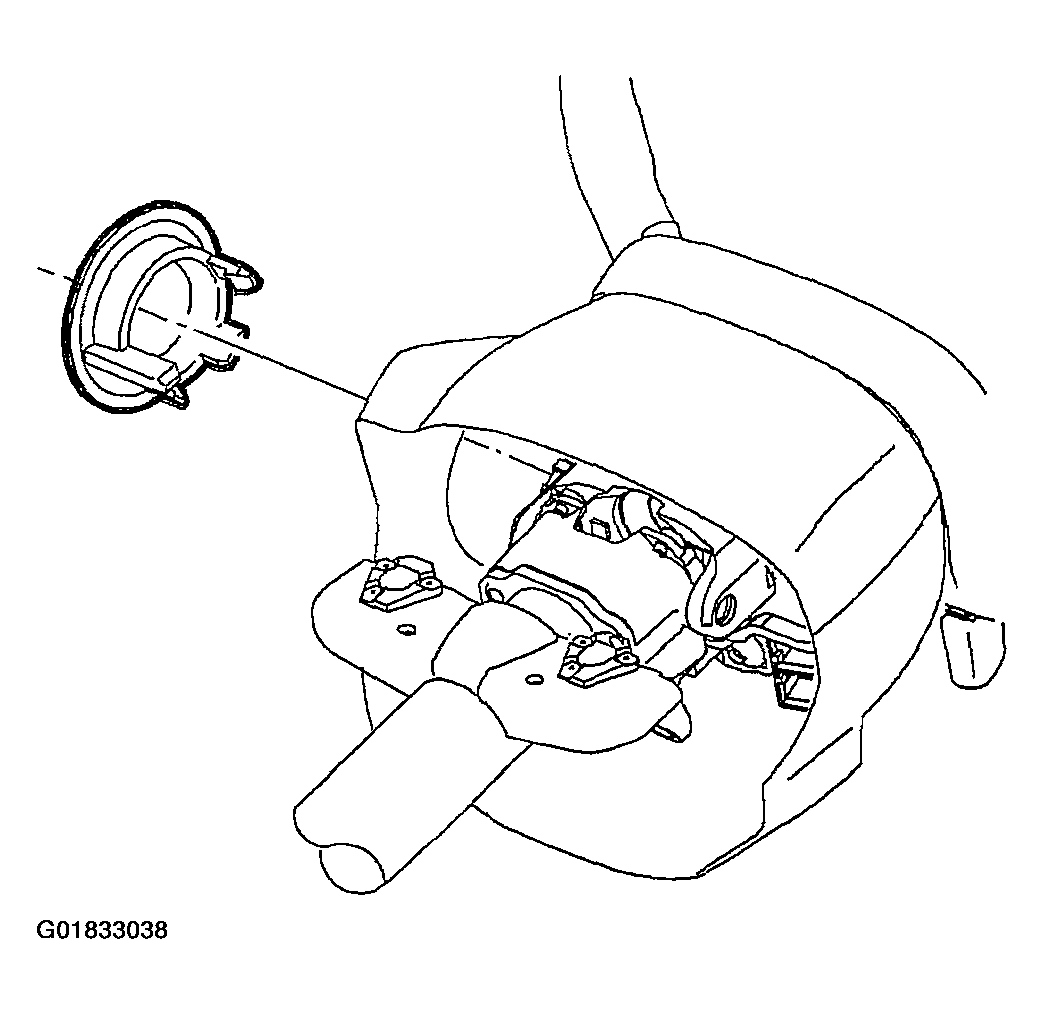

    3. Fig 1: Removing Lock Cylinder Bezel
    G01833038Courtesy of GENERAL MOTORS CORP.
  3. Remove steering column upper shroud panel.

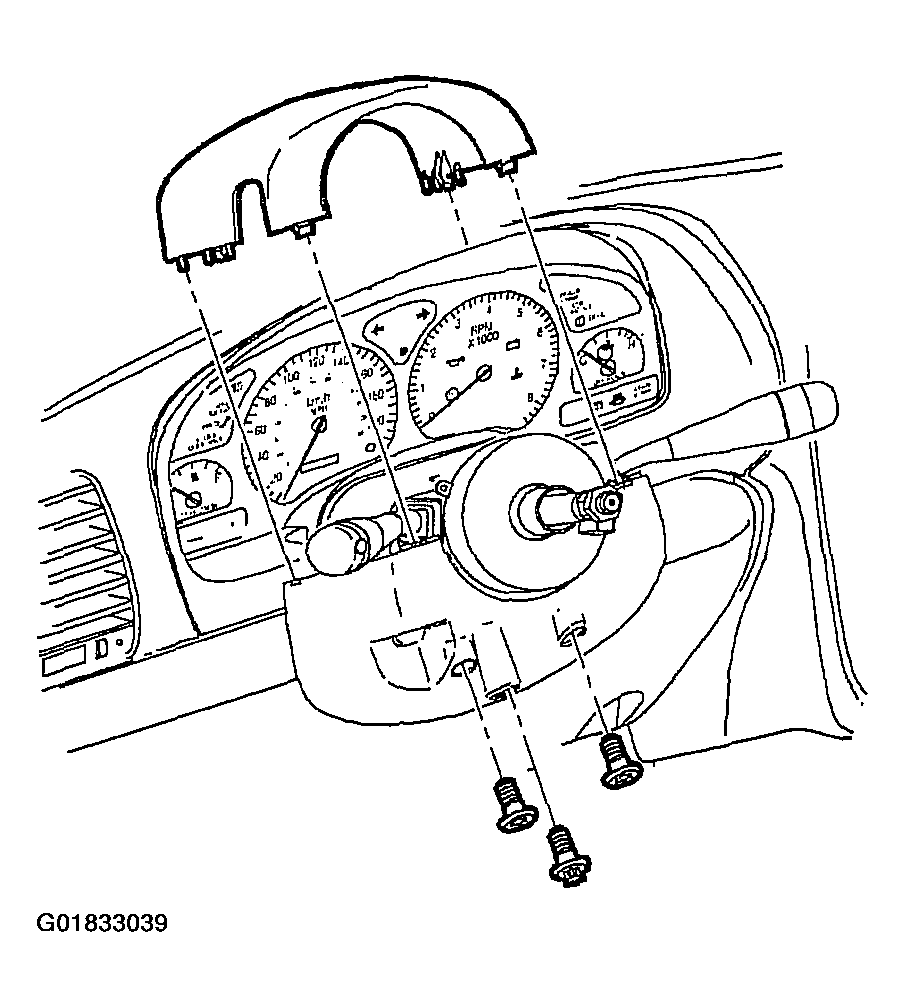

    4. Fig 2: Removing Steering Column Upper Shroud Panel
    G01833039Courtesy of GENERAL MOTORS CORP.
  4. Insert key into ignition lock cylinder and rotate to START position. Then rotate cylinder back to the RUN position.
  5. Depress the locking button on the top of ignition module assembly with a thin pick-type tool. Slide lock cylinder assembly from ignition module.

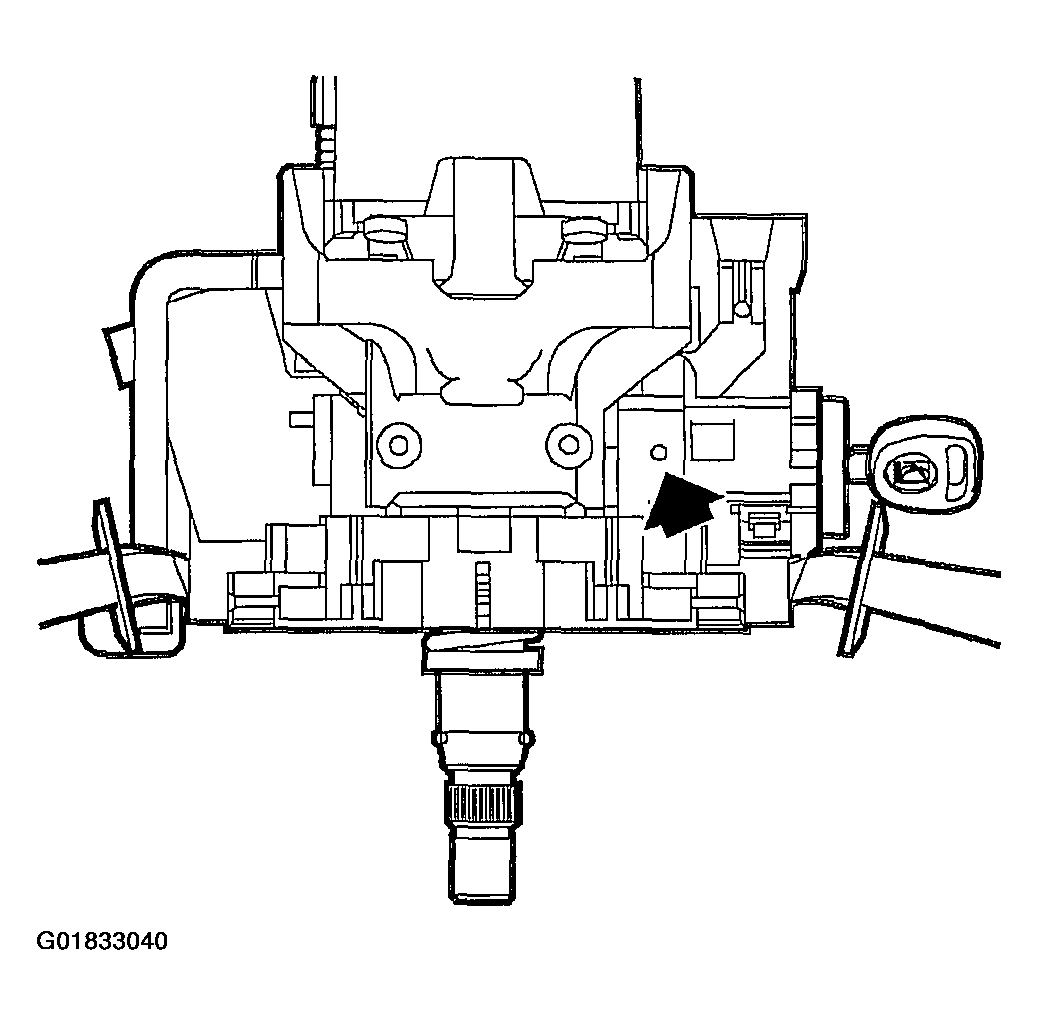

    6. Fig 3: Depressing Locking Button On Top Of Ignition Module Assembly
    G01833040Courtesy of GENERAL MOTORS CORP.
  6. Remove shroud fasteners and remove steering column lower shroud panel.
    7. Fig 4: Removing Steering Column Lower Shroud Panel
    G01833041Courtesy of GENERAL MOTORS CORP.
  7. Disconnect ignition switch connector and remove ignition switch from ignition module.

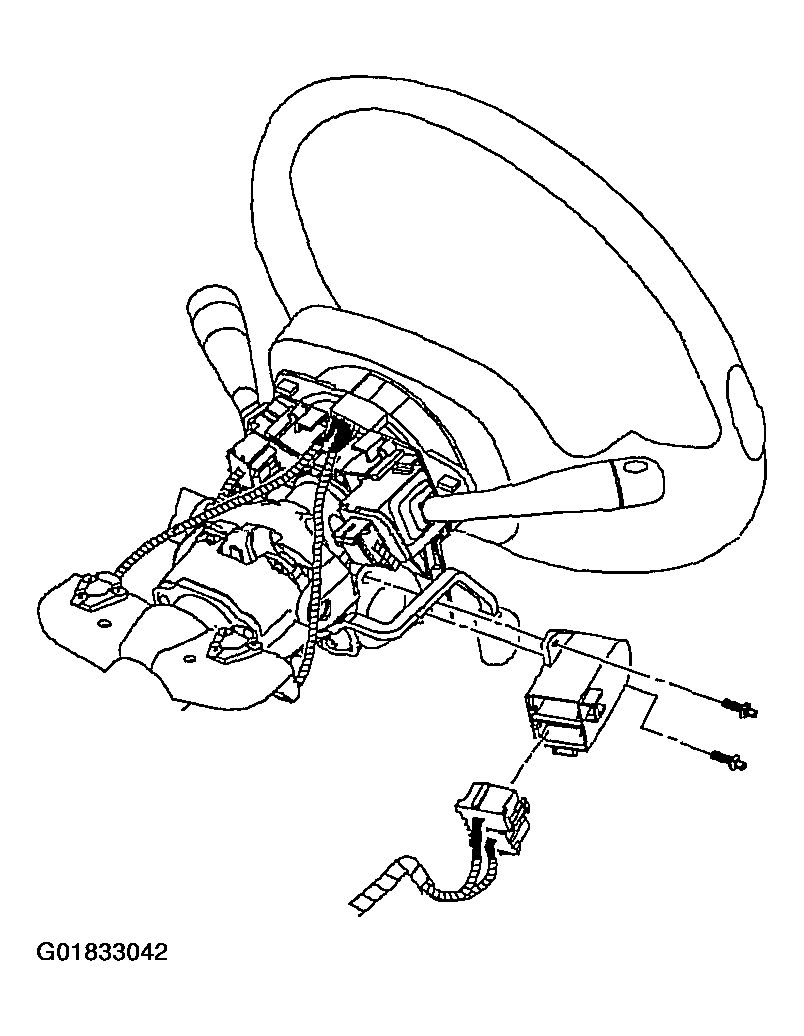

    8. Fig 5: Removing Ignition Switch From Ignition Module
    G01833042Courtesy of GENERAL MOTORS CORP.
  8. Remove park lock solenoid.

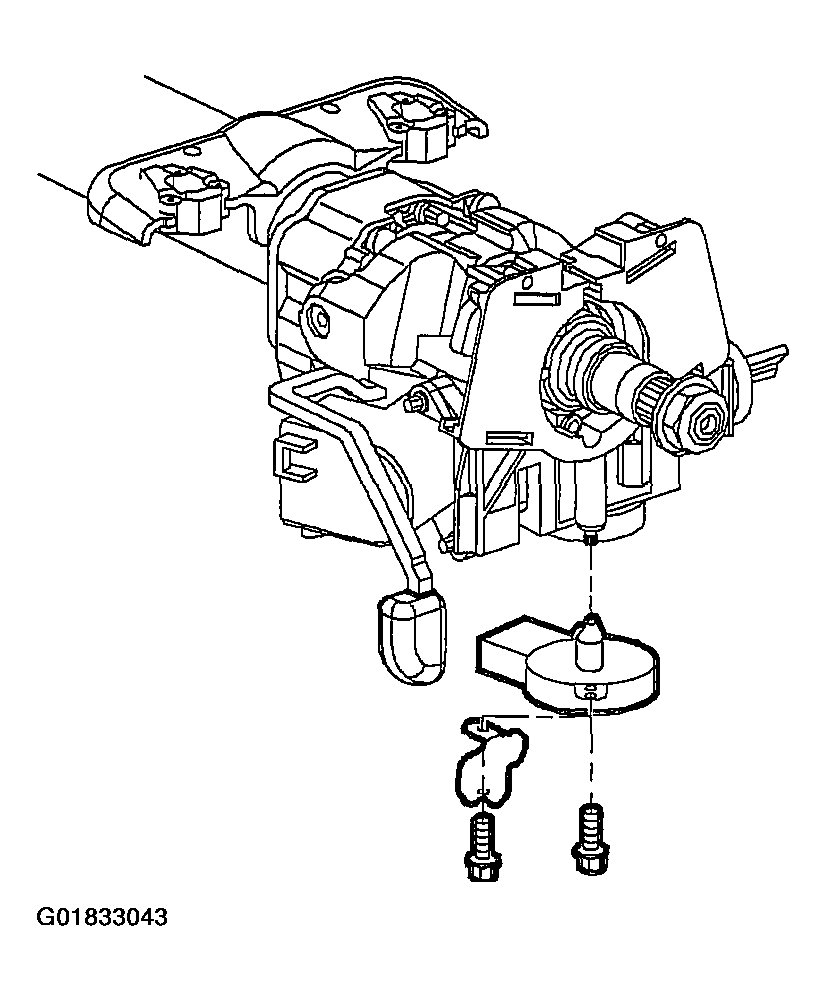

    9. Fig 6: Removing Park Lock Solenoid
    G01833043Courtesy of GENERAL MOTORS CORP.
  9. Remove turn signal/headlamp lever, windshield washer lever, and passlock sensor connector.

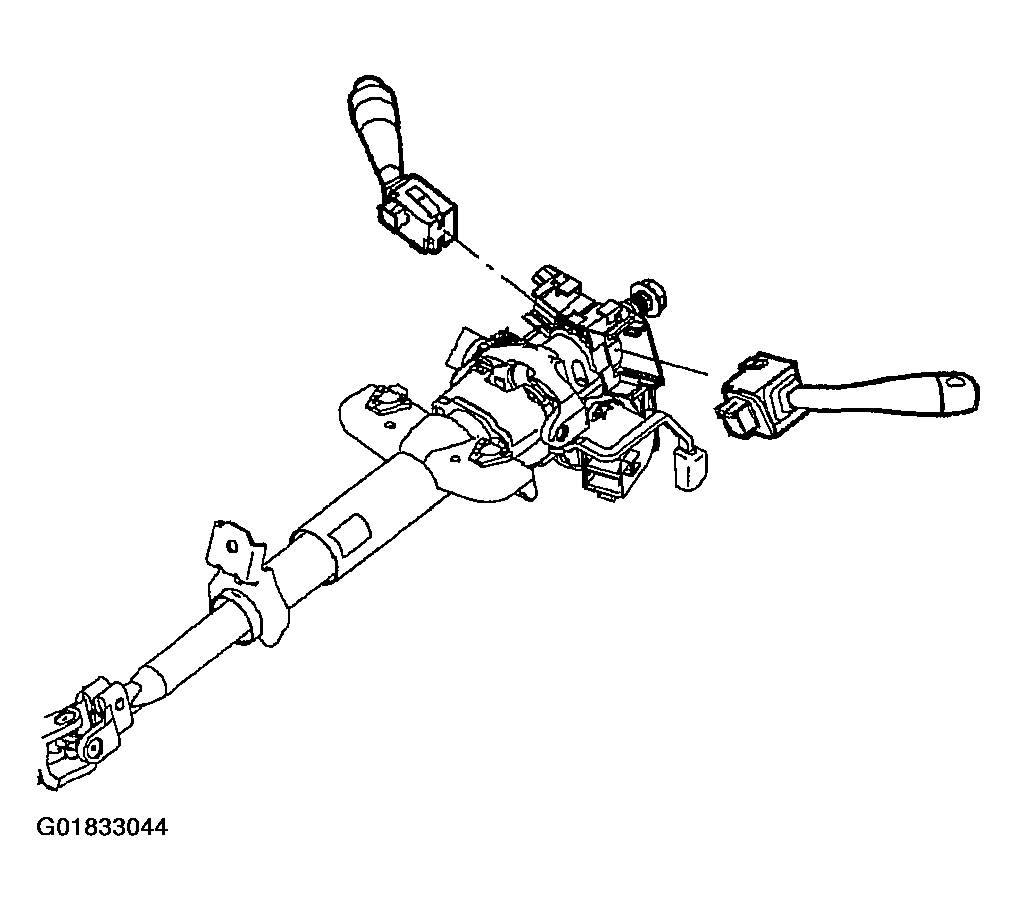

    10. Fig 7: Removing Turn Signal/Headlamp Lever, Windshield Washer Lever, & Passlock Sensor Connector
    G01833044Courtesy of GENERAL MOTORS CORP.
  10. Remove ignition module shear bolts.
    Fig 8: Removing Ignition Module Shear Bolts
    G01833045Courtesy of GENERAL MOTORS CORP.
    1. Use a light hammer and a chisel to bite into shear bolt head at a position offset from its center.
      2. Fig 9: Biting Into Shear Bolt Head Offset From Its Center
      G01833046Courtesy of GENERAL MOTORS CORP.
    2. Tap the chisel to rotate the bolt and loosen it.
    3. Repeat until bolt is loose enough to remove.
  11. Remove ignition module assembly from the steering column.

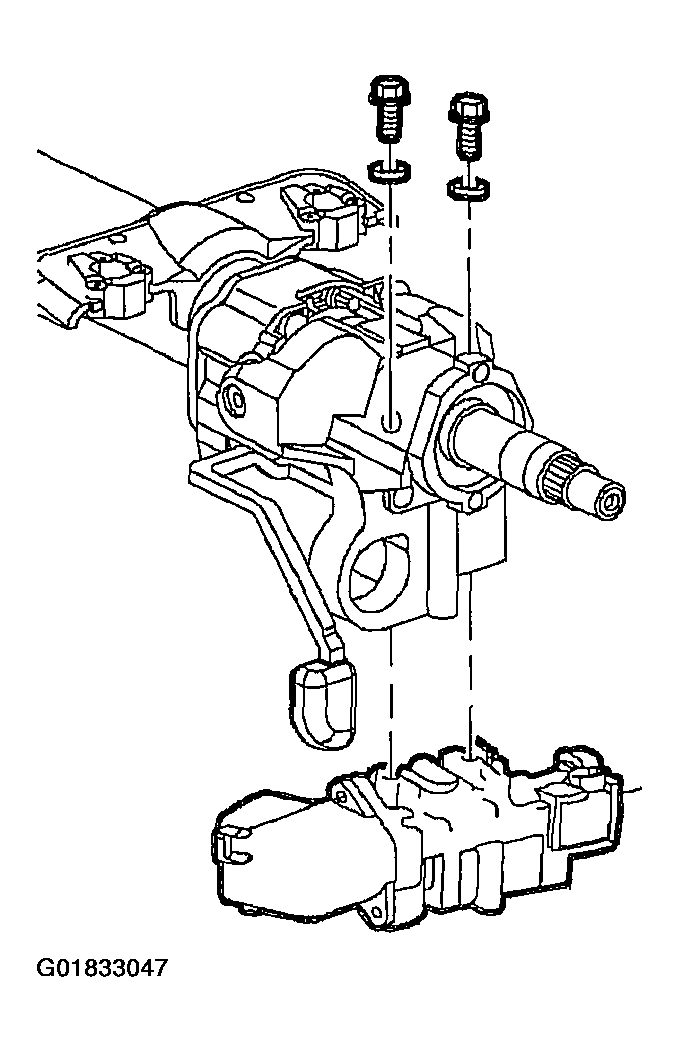

    12. Fig 10: Removing Ignition Module Assembly
    G01833047Courtesy of GENERAL MOTORS CORP.
