Lower Control Arm: Disassembly

  1. Using special tools Control Arm Bushing Remover/Installer KM-508A-3 and KM-508-1 press out front bushing.

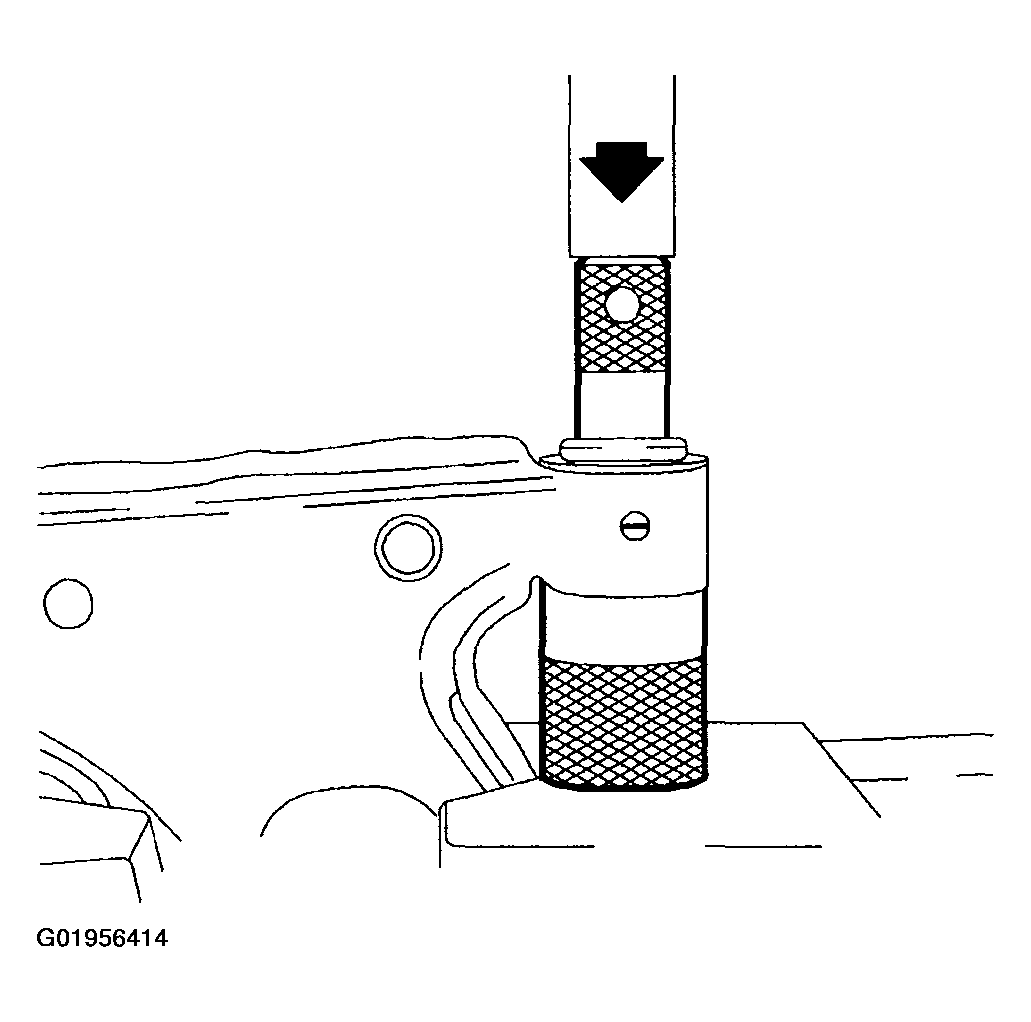

    2. Fig 1: Pressing Out Front Bushing
    G01956414Courtesy of GENERAL MOTORS CORP.
  2. Using special tools Control Arm Bushing Remover/Installer KM - 907-21, KM-907-22, and Bushing Remove/Installer KM-671 to press out rear control arm bushing.
    3. Fig 2: Pressing Out Rear Control Arm Bushing
    G01956415Courtesy of GENERAL MOTORS CORP.
