Lower Control Arm: Assembly

  1. Using Bushing press KM-508-1, KM-508-2 and KM-508-3 press in front control arm bushing.

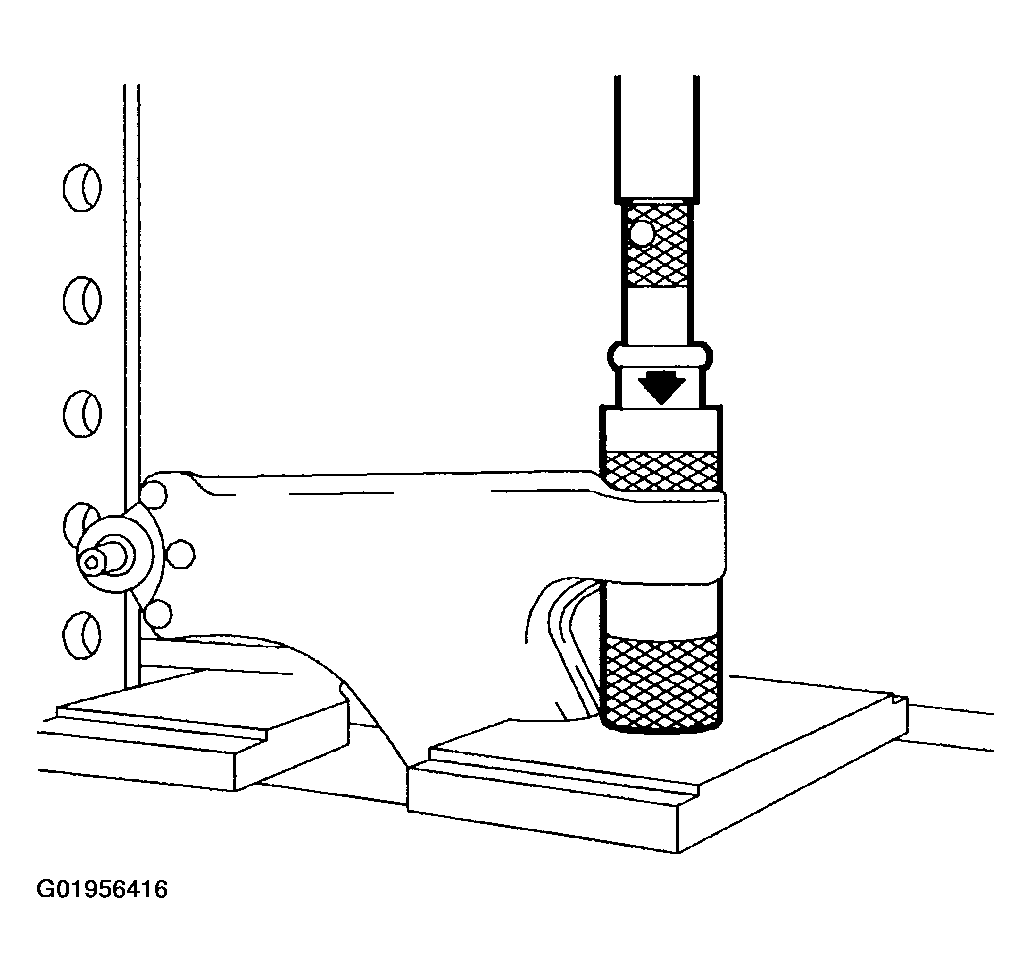

    2. Fig 1: Pressing In Front Control Arm Bushing
    G01956416Courtesy of GENERAL MOTORS CORP.
  2. Using special tools KM-907-23, KM-907-24 and KM-671 press in rear control arm bushings.
    3. Fig 2: Pressing In Rear Control Arm Bushings
    G01956417Courtesy of GENERAL MOTORS CORP.
