Intermediate Shaft: Installation
CAUTION:
Use Loctite(R) Threadlocker (or equivalent) on thread of pinch bolt.

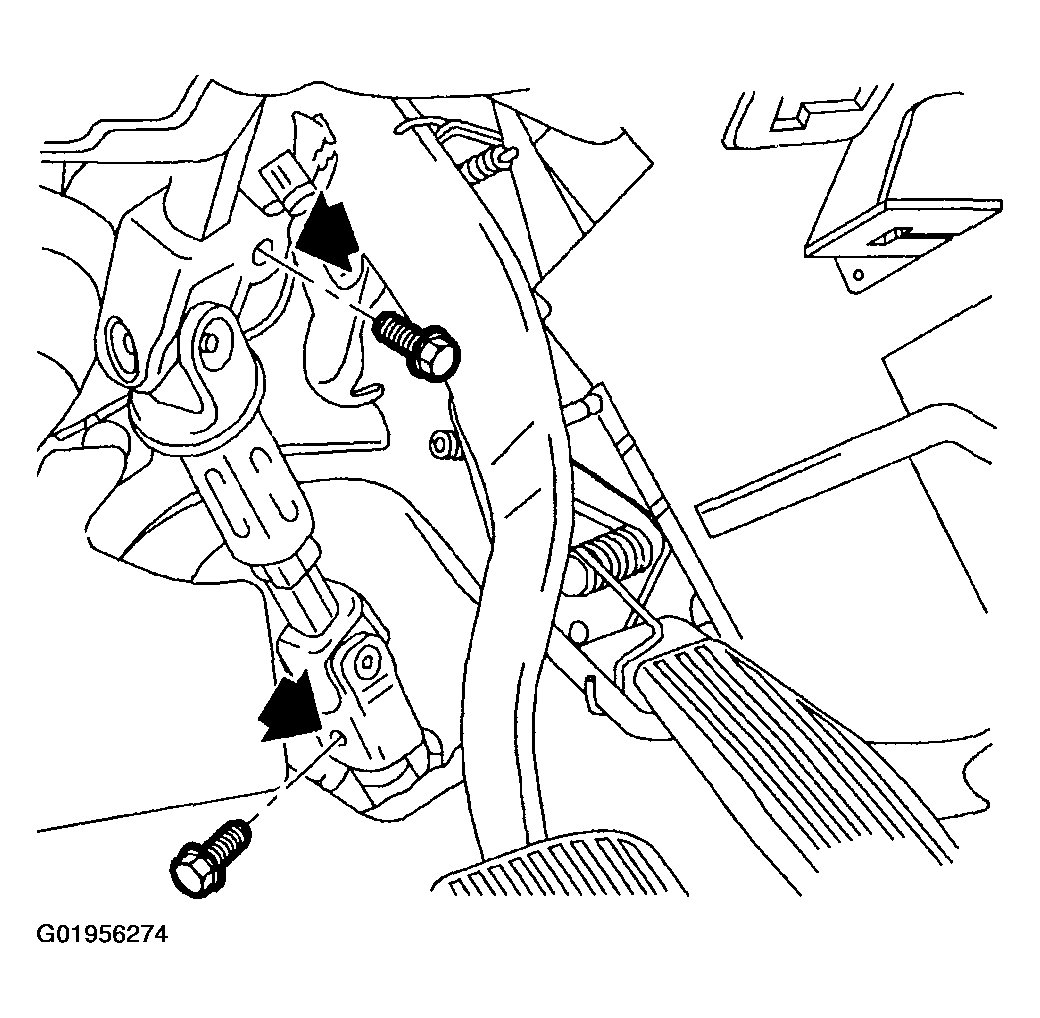

- Position intermediate shaft onto steering column and tighten pinch bolt. Tighten intermediate shaft pinch bolt to 30 N.m (22 ft lbs).
- Install intermediate shaft onto steering gear and tighten pinch bolt. Tighten intermediate shaft pinch bolt to 30 N.m (22 ft lbs).
- Install lower left I/P closeout panel (hush panel).
