Instrument Panel Cluster Connector End View

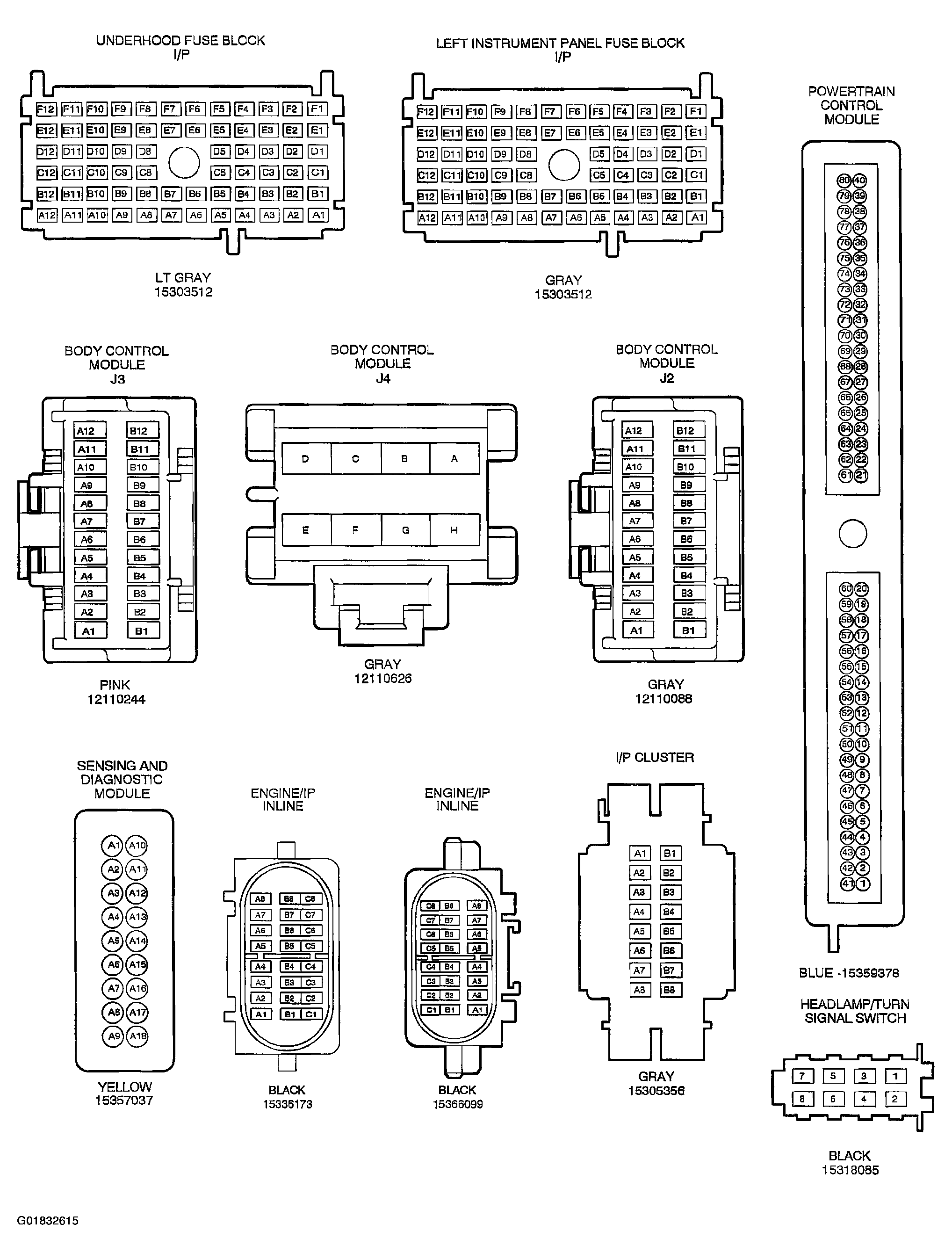

Fig 1: Instrument Panel Cluster

G01832615

Courtesy of GENERAL MOTORS CORP.
