Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

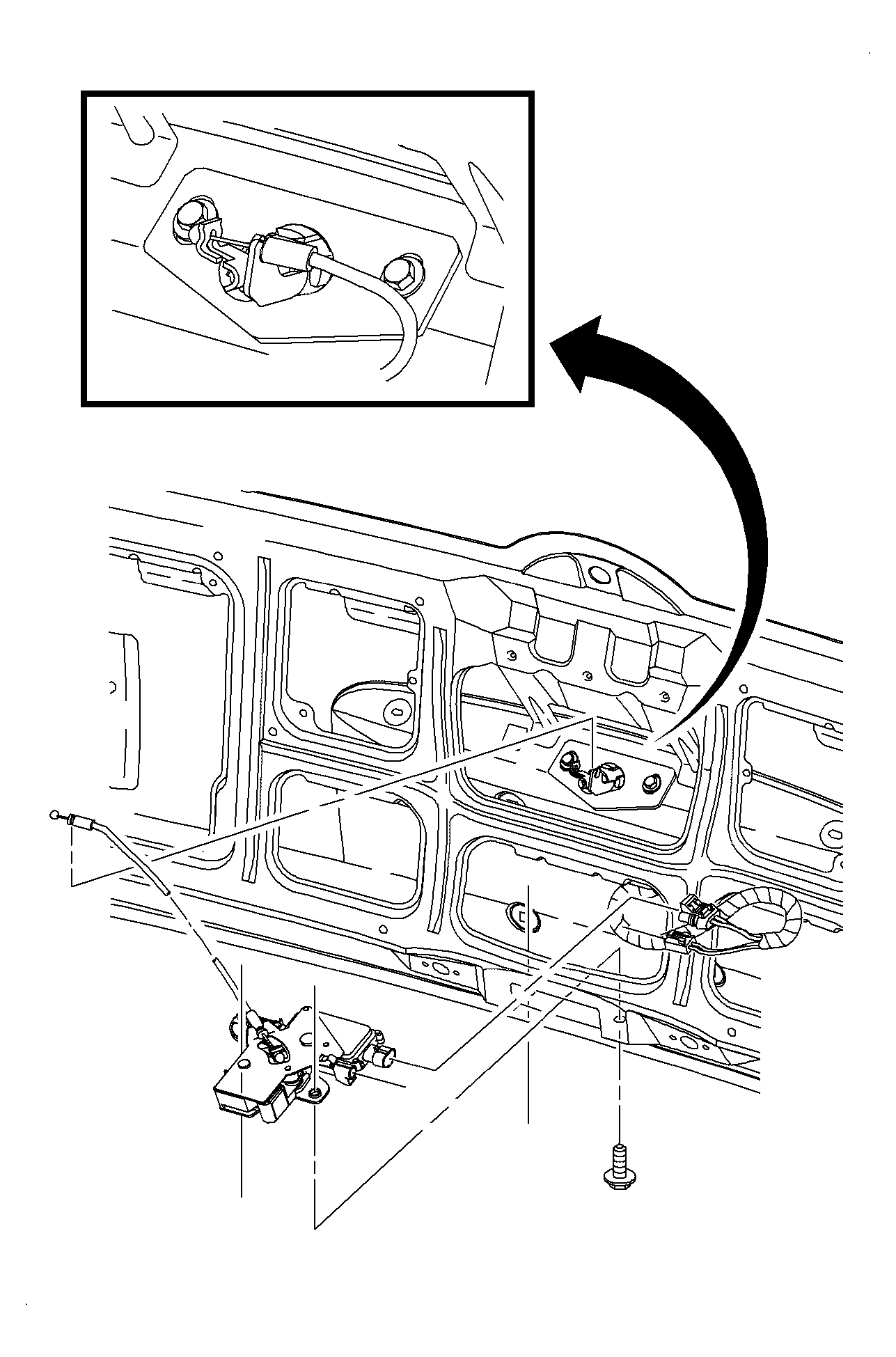

Fig 1: Removing & Installing Liftgate Latch

Courtesy of GENERAL MOTORS CORP.

Connect the lift gate latch cable to the latch.
Install the latch to the lift gate.

NOTE: Refer to FASTENER NOTICE in Cautions and Notices.

Install the bolts to the latch.
Tighten: Tighten the bolts to 10 N.m (89 in lb).
Connect the electrical connectors to the lift gate latch.
Install the lift gate trim panel. Refer to Trim Panel Replacement - Liftgate .
