Video System Schematics

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

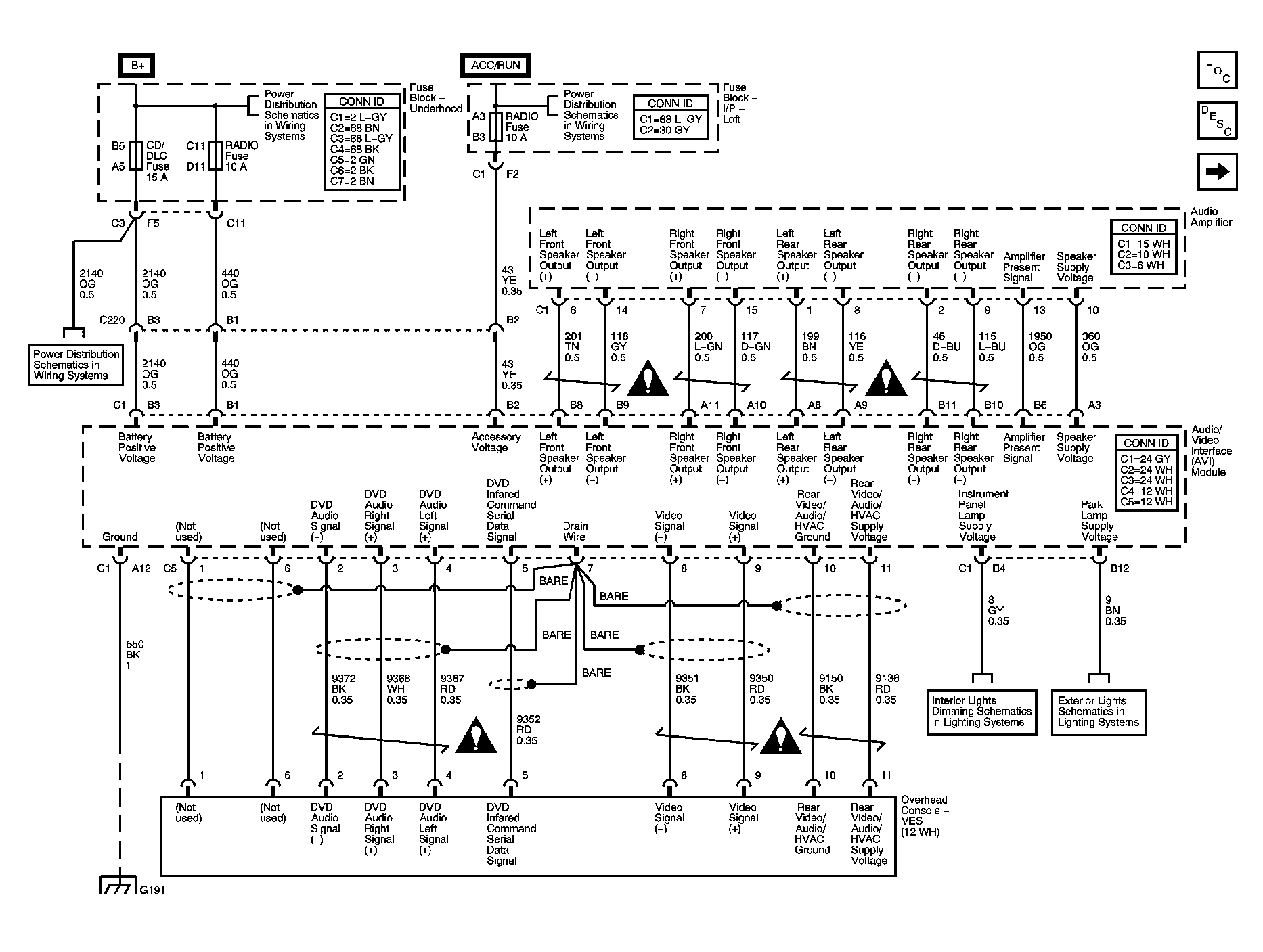

Fig 1: Power, Ground, Amplifier and DVD Display Signals Schematic

Courtesy of GENERAL MOTORS CORP.

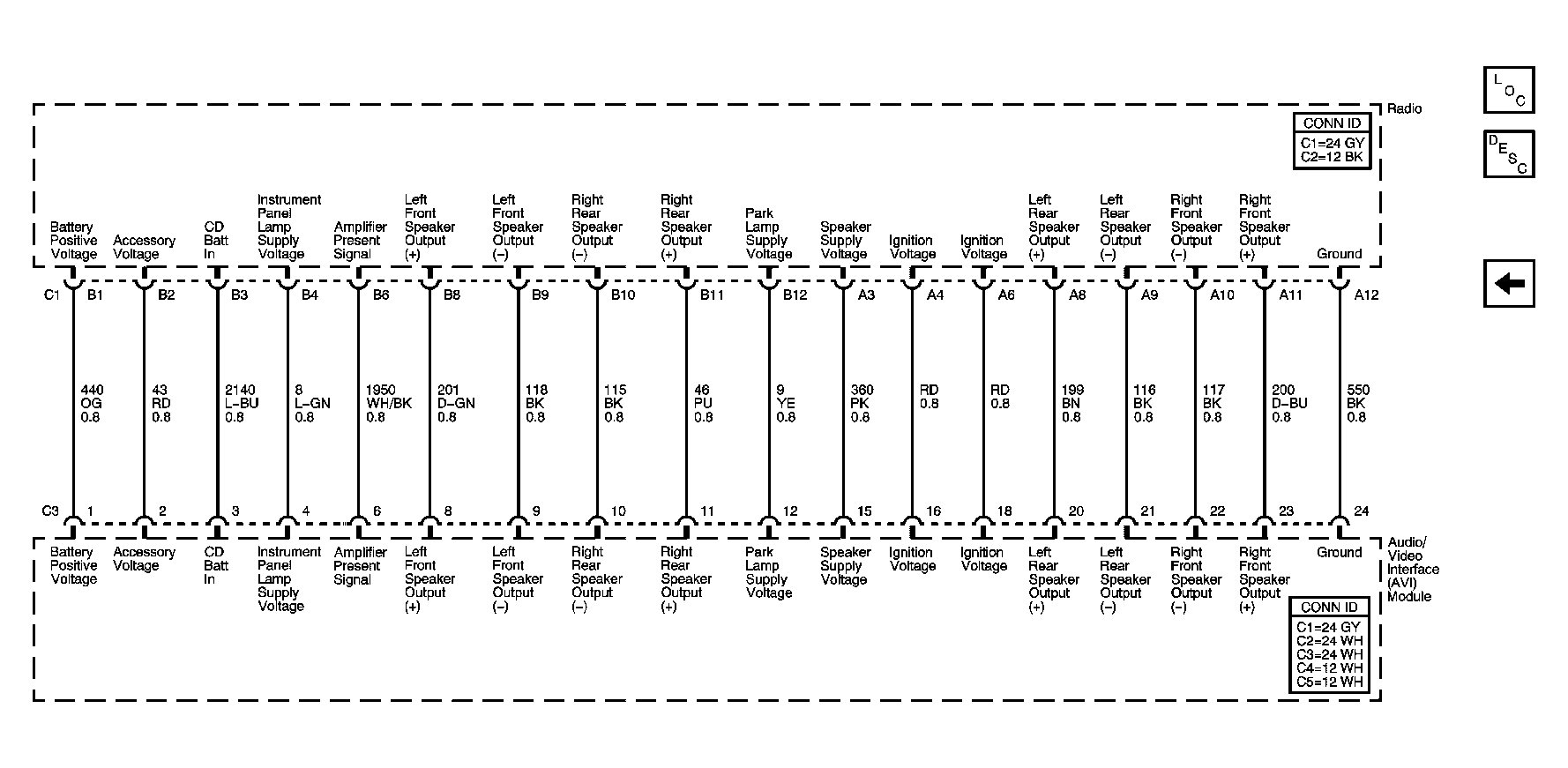

Fig 2: Radio and DVD Player Signals Schematic

Courtesy of GENERAL MOTORS CORP.

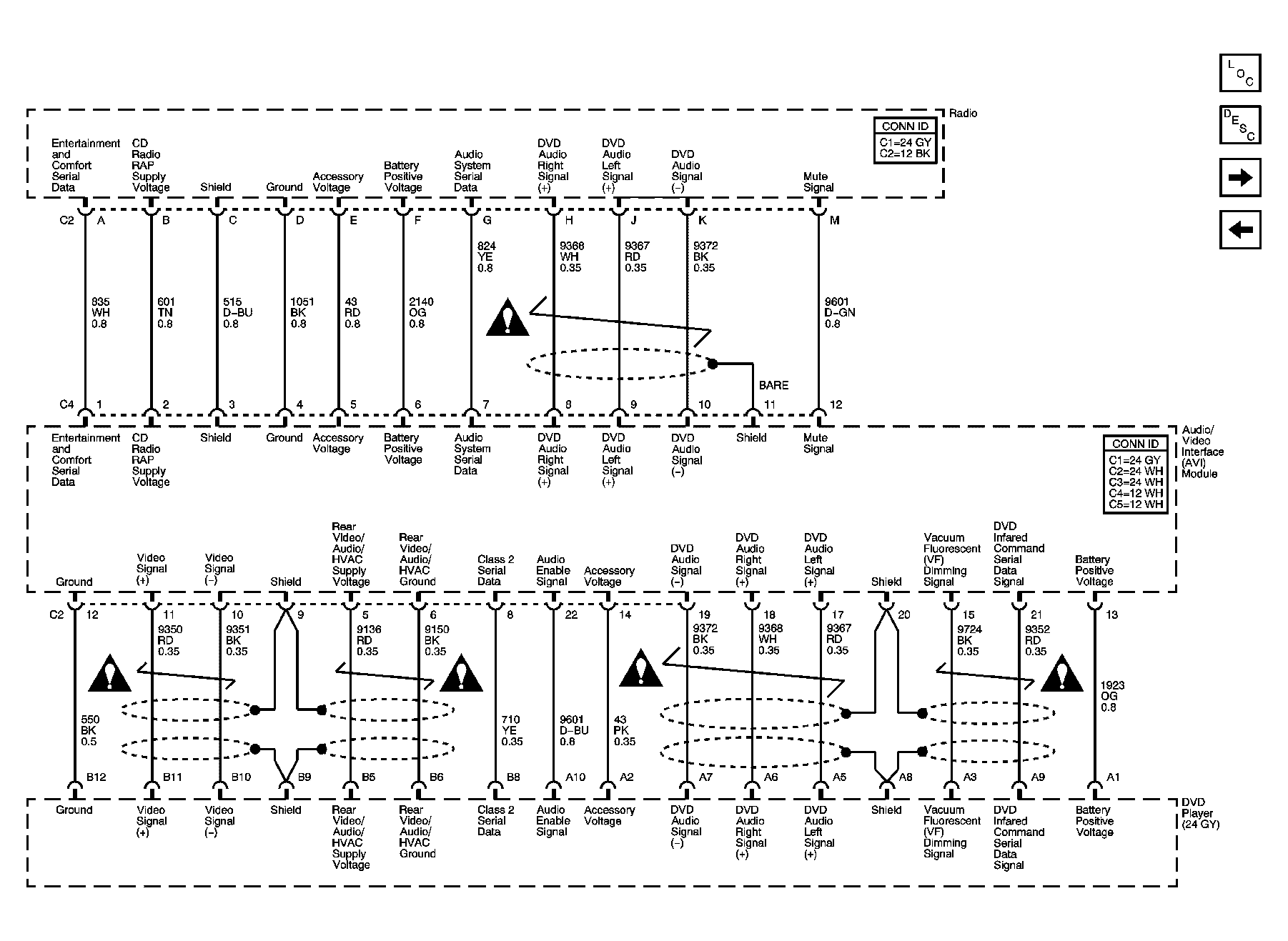

Fig 3: Radio Signals Schematic

Courtesy of GENERAL MOTORS CORP.
