Removal Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

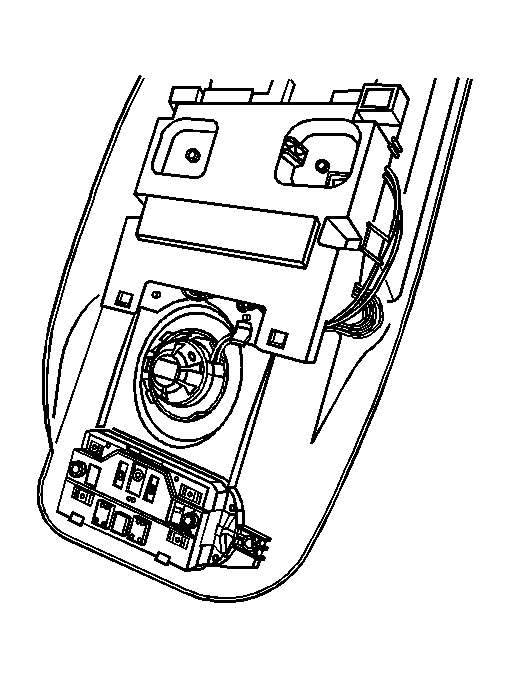

Fig 1: Installing Screws In Overhead Console Behind Screen

Courtesy of GENERAL MOTORS CORP.

Lower the screen from the console.

Fig 2: Installing Dome Light Lens Cover

Courtesy of GENERAL MOTORS CORP.

Remove the dome light lens cover.

Fig 3: Installing Screws In Dome Light

Courtesy of GENERAL MOTORS CORP.

Remove the bulbs from the dome light.

Fig 4: Installing Screws In Overhead Console Behind Screen

Courtesy of GENERAL MOTORS CORP.

Remove the screws from behind the screen.

Fig 5: Identifying Dome Light Bulb Assembly

Courtesy of GENERAL MOTORS CORP.

Remove the screws from the dome light.

Fig 6: Connecting Electrical Connectors To Overhead Console

Courtesy of GENERAL MOTORS CORP.

Disconnect the electrical connectors from the overhead console.

Fig 7: Removing Overhead Console

Courtesy of GENERAL MOTORS CORP.

Remove the overhead console from the headliner.
