Installation Procedure

WARNING: This page is about a different car, the 2003 Saturn LW300, 2003 Saturn LW200, 2003 Saturn L300, and 2003 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

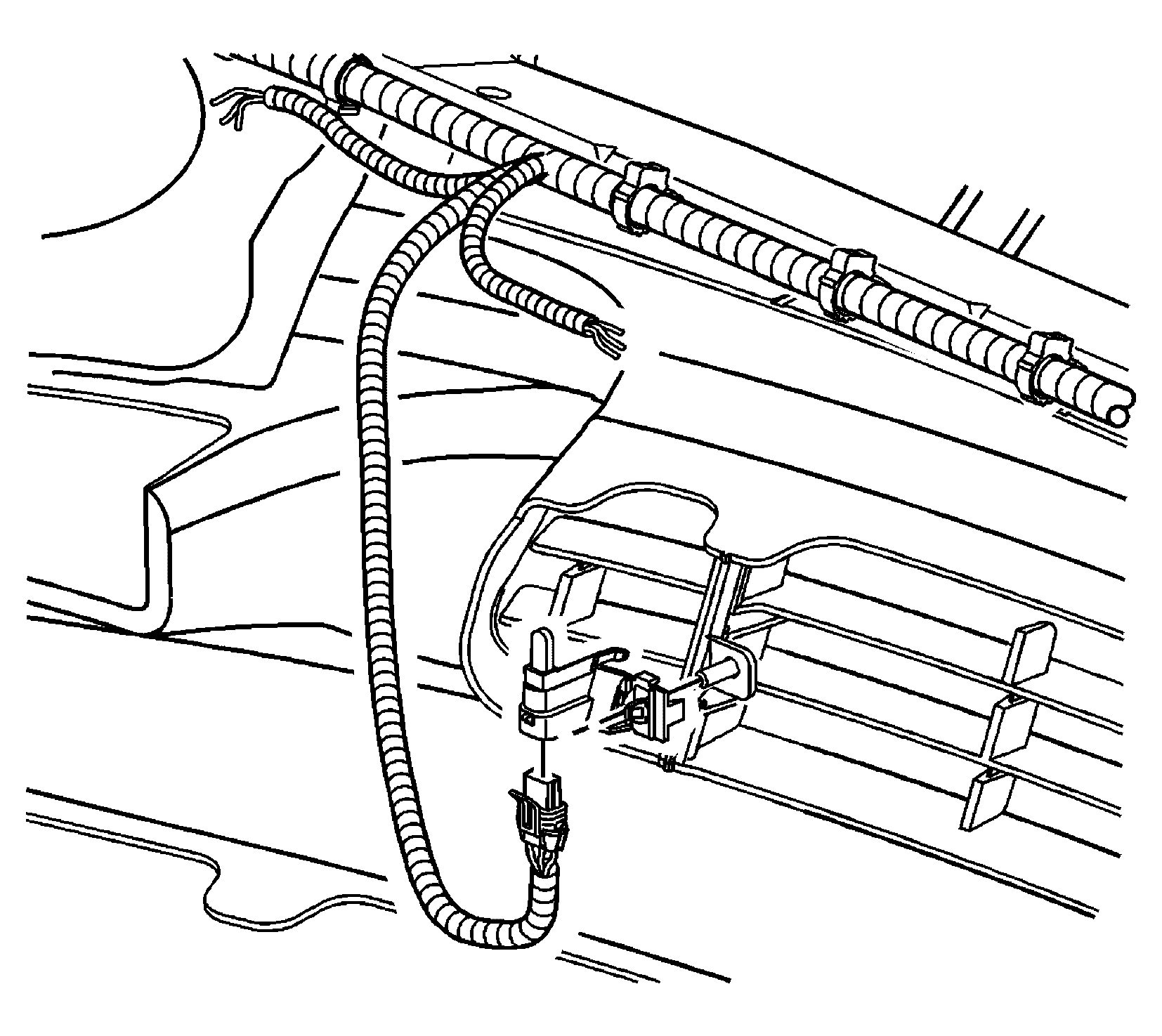

Fig 1: Identifying Ambient Air Temperature Sensor

Courtesy of GENERAL MOTORS CORP.

Install the ambient air temperature sensor.

NOTE: Refer to FASTENER NOTIC in Cautions and Notices.

Install the screw to the ambient air temperature sensor.
Tighten: Tighten the screw to 4 N.m (35 lb in).
Connect the ambient air temperature sensor electrical connector.
