Pusher Fan: Installation

WARNING: This page is about a different car, the 2002 Saturn LW300 and 2002 Saturn L300. However, it is still accessible from the selected car via links, so may be relevant.
  1. Snap new finger guard onto pusher fan.
  2. Slide upper pusher fan shroud under retaining tabs located at upper edge of condenser.

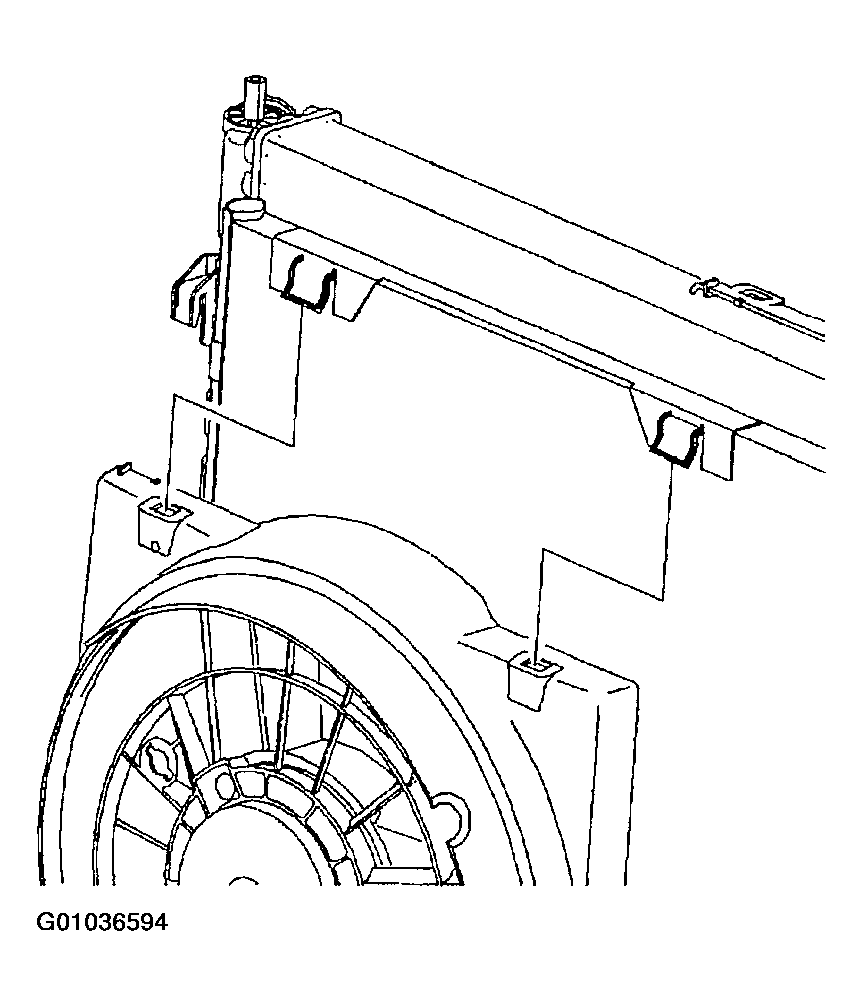

    Fig 1: Sliding Upper Pusher Fan Shroud Under Retaining Tabs
    G01036594Courtesy of GENERAL MOTORS CORP.
    NOTE: Position pusher fan electrical harness in shroud indentation to prevent harness damage.
  3. Rotate lower fan shroud onto condenser mounting studs and install retaining washers and nuts.

    Torque:

    Lower Fan Shroud-to-Condenser Mounting

    Studs: 4 N.m (35 in-lbs)

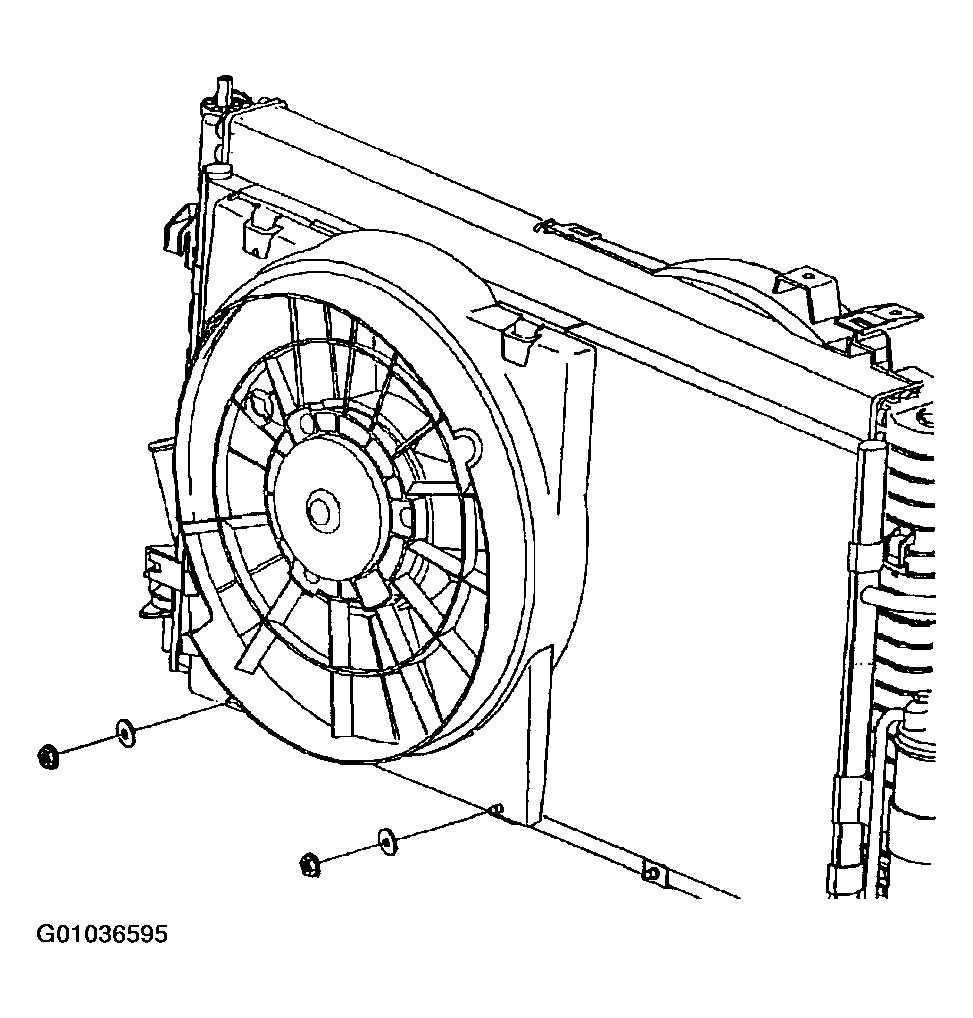

    Fig 2: Installing Fan Shroud Retaining Nuts
    G01036595Courtesy of GENERAL MOTORS CORP.
  4. Route pusher fan electrical harness around outside of radiator end tank, below upper radiator hose.
  5. Lower vehicle.
  6. Install pusher fan harness into mounting tabs on puller fan shroud.
  7. Connect pusher fan electrical connector.
  8. Connect negative battery cable.

    Torque:

    Battery Terminal Bolts: 17 N.m (13 ft-lbs)

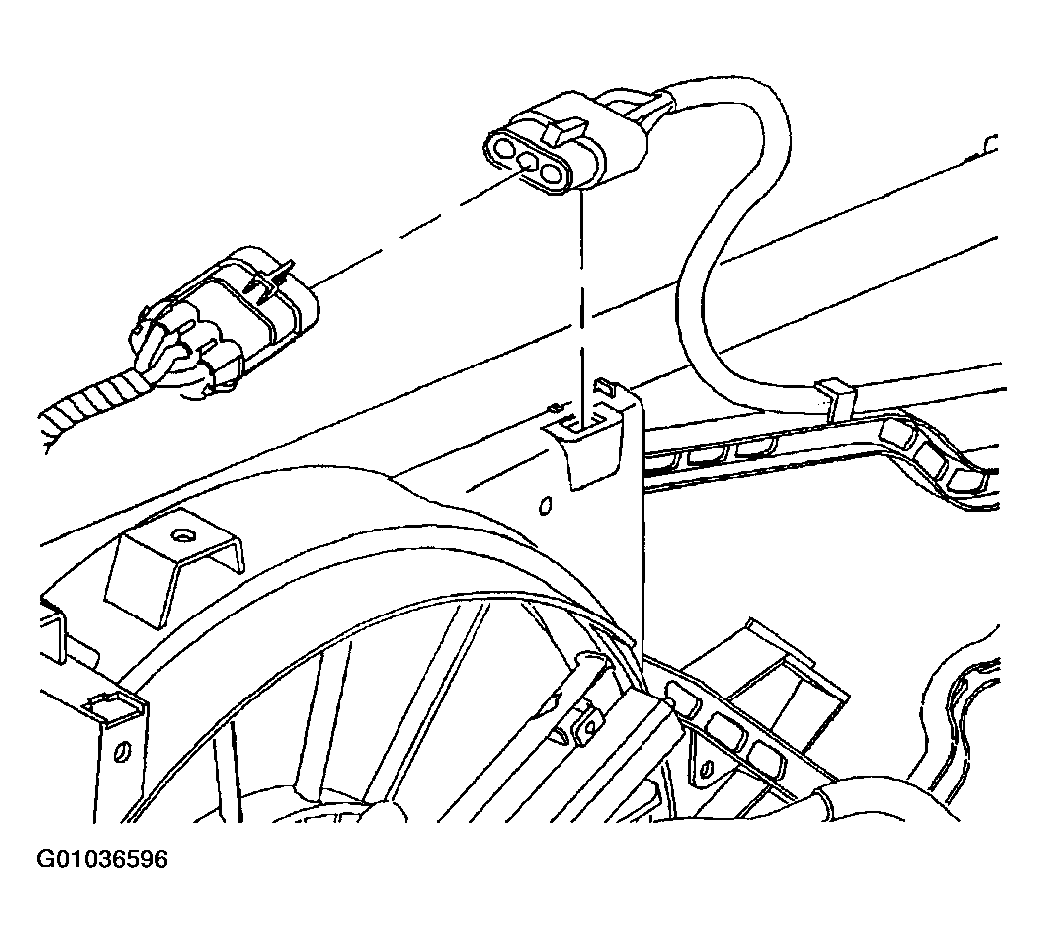

    Fig 3: Reconnecting Pusher Fan Electrical Connector
    G01036596Courtesy of GENERAL MOTORS CORP.
