Back-Up Light Switch: Removal

WARNING: This page is about a different car, the 2002 Saturn LW200 and 2002 Saturn L200. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect back-up light switch harness connector. See Fig 1 . Remove back-up light switch and discard gasket.

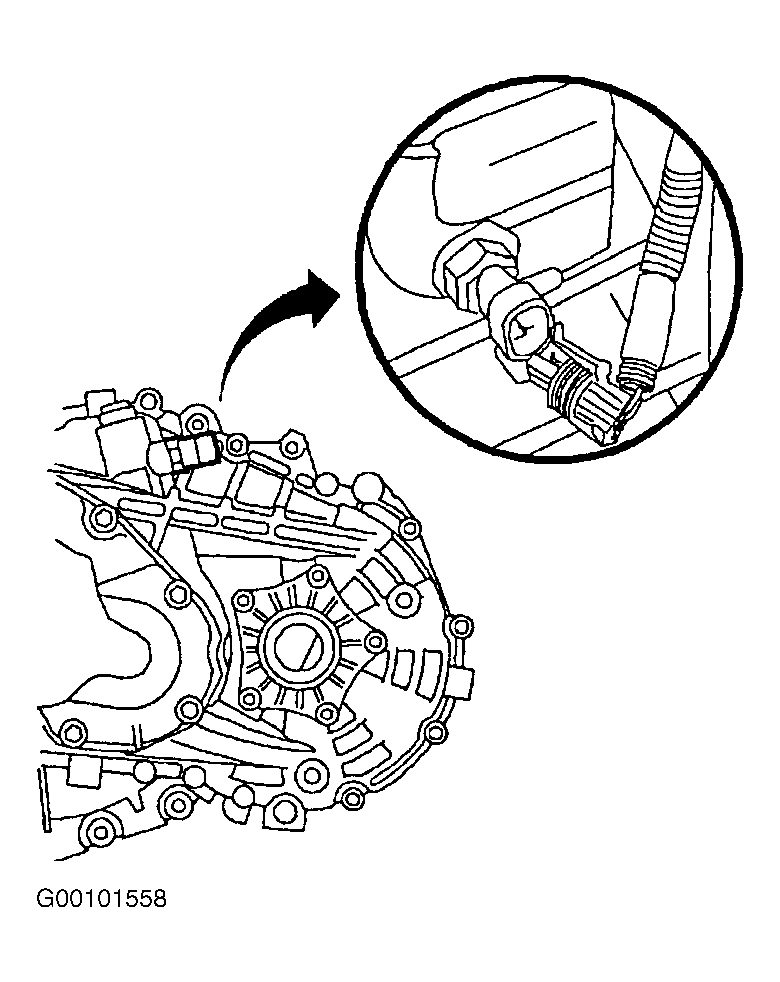

Fig 1: Locating Back-Up Light Switch
G00101558Courtesy of GENERAL MOTORS CORP.
