Lower Right Crankcase

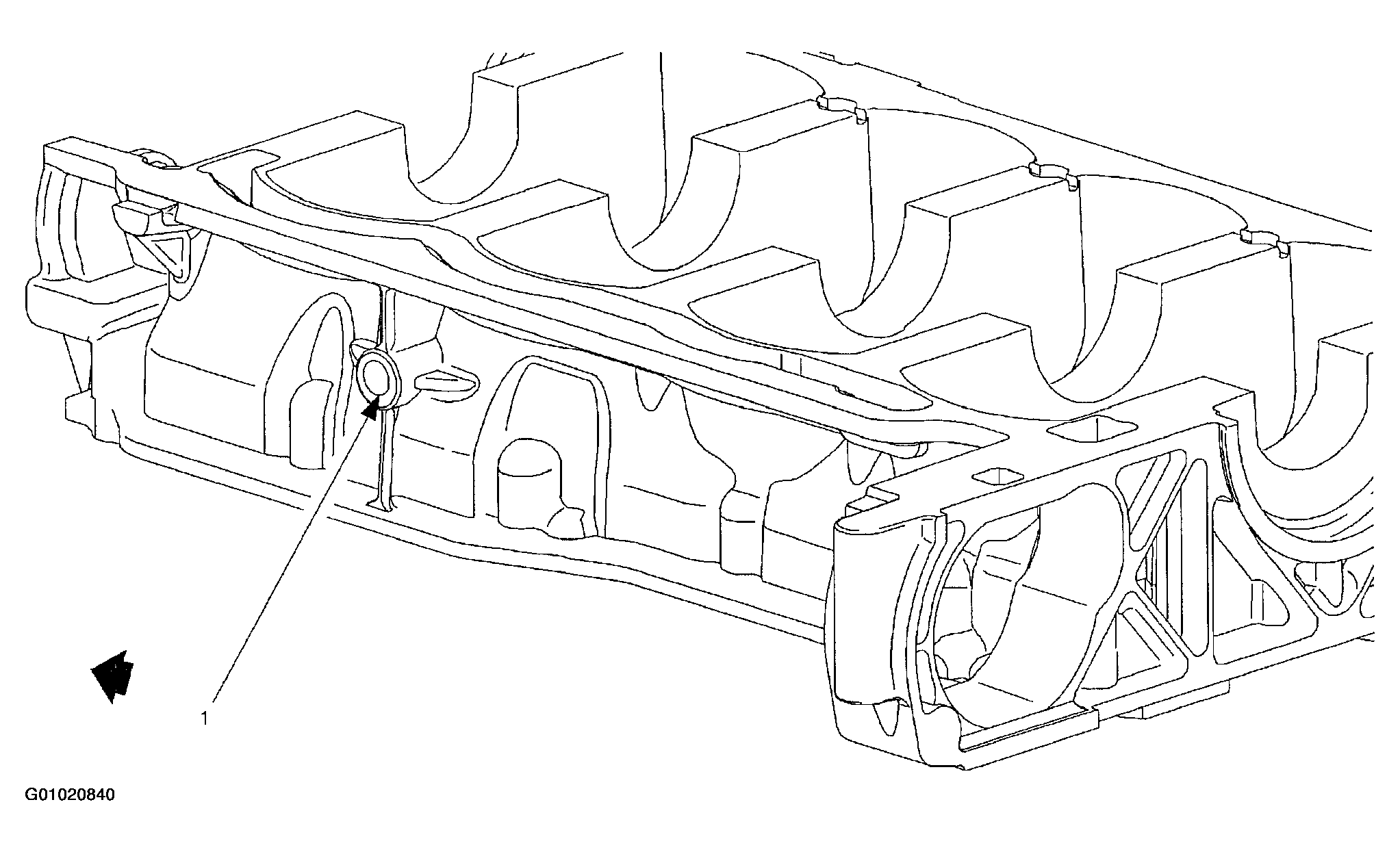

Fig 1: Lower Right Crankcase View

G01020840

Courtesy of GENERAL MOTORS CORP.

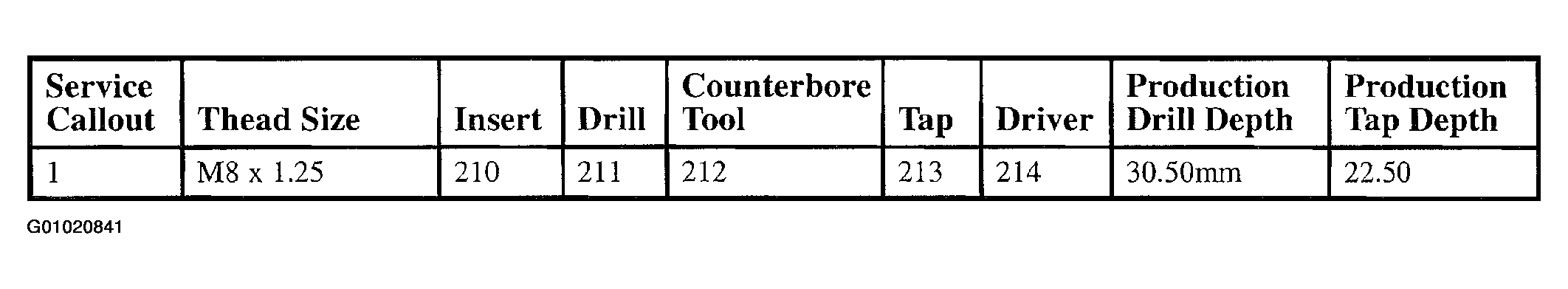

Fig 2: Lower Right Crankcase Specifications

G01020841

Courtesy of GENERAL MOTORS CORP.
