Lower Left Crankcase

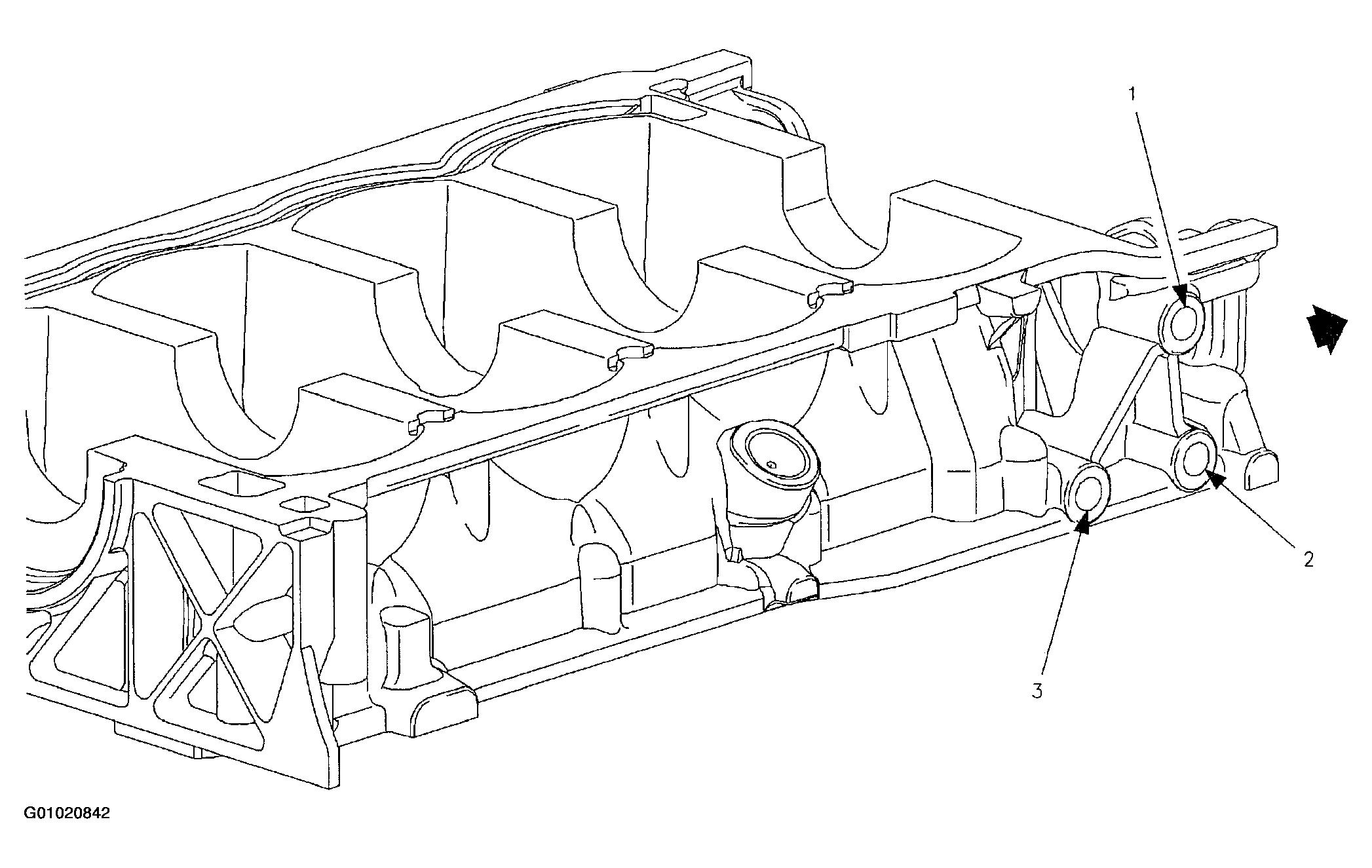

Fig 1: Lower Left Crankcase View
G01020842Courtesy of GENERAL MOTORS CORP.

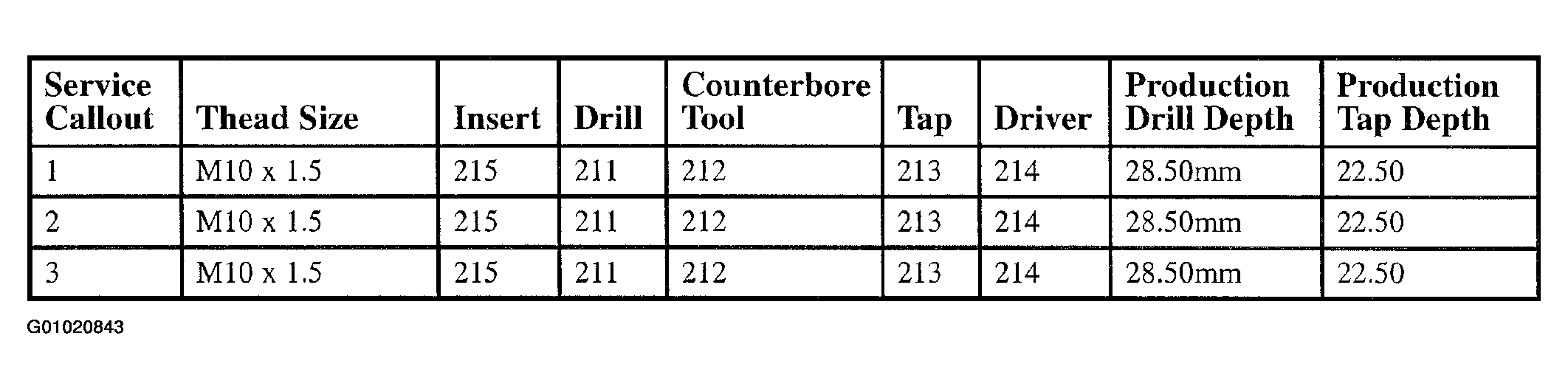

Fig 2: Lower Left Crankcase Specifications
G01020843Courtesy of GENERAL MOTORS CORP.
