Lower Crankcase (Front View)

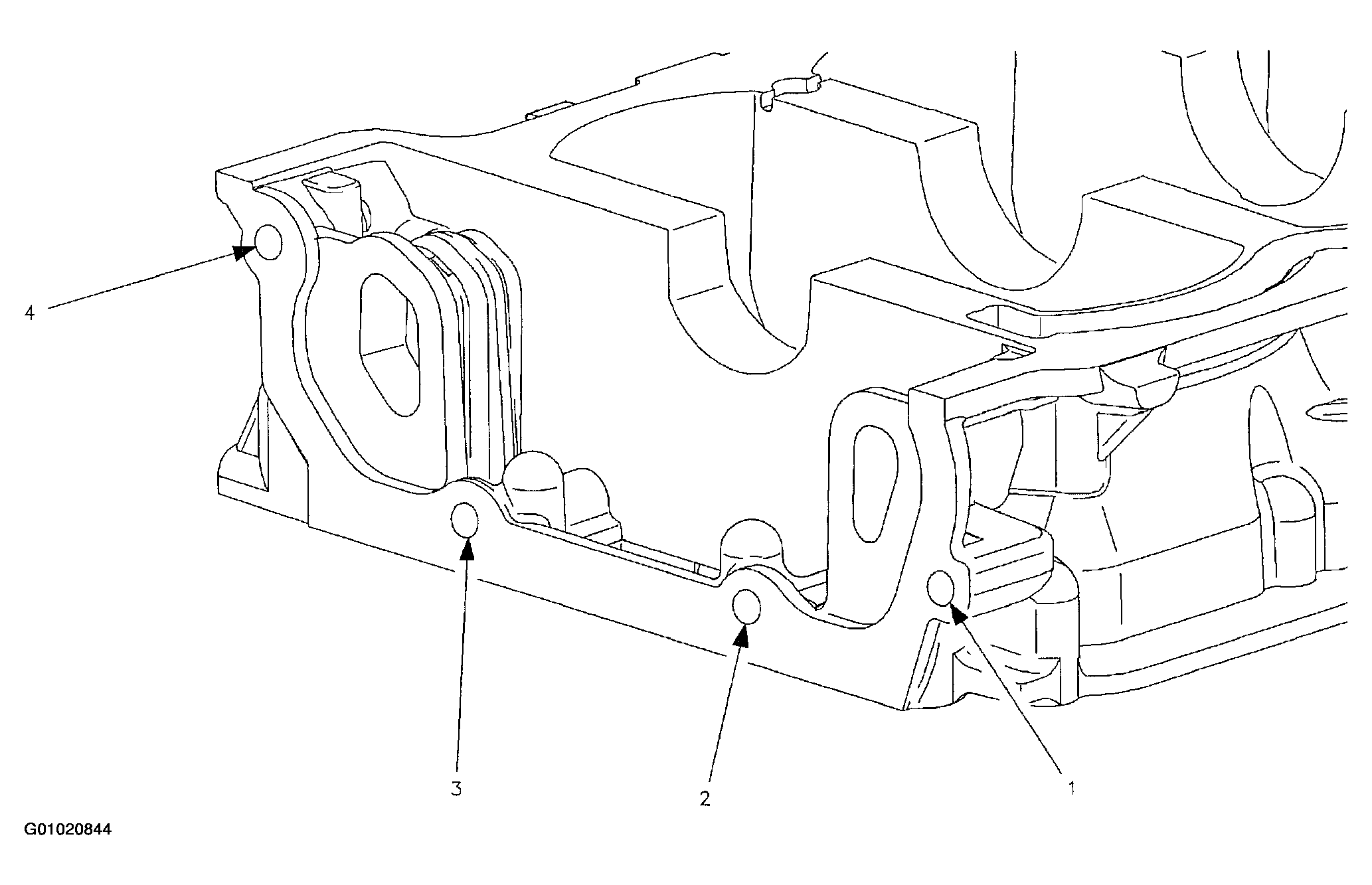

Fig 1: Lower Crankcase (Front View)

G01020844

Courtesy of GENERAL MOTORS CORP.

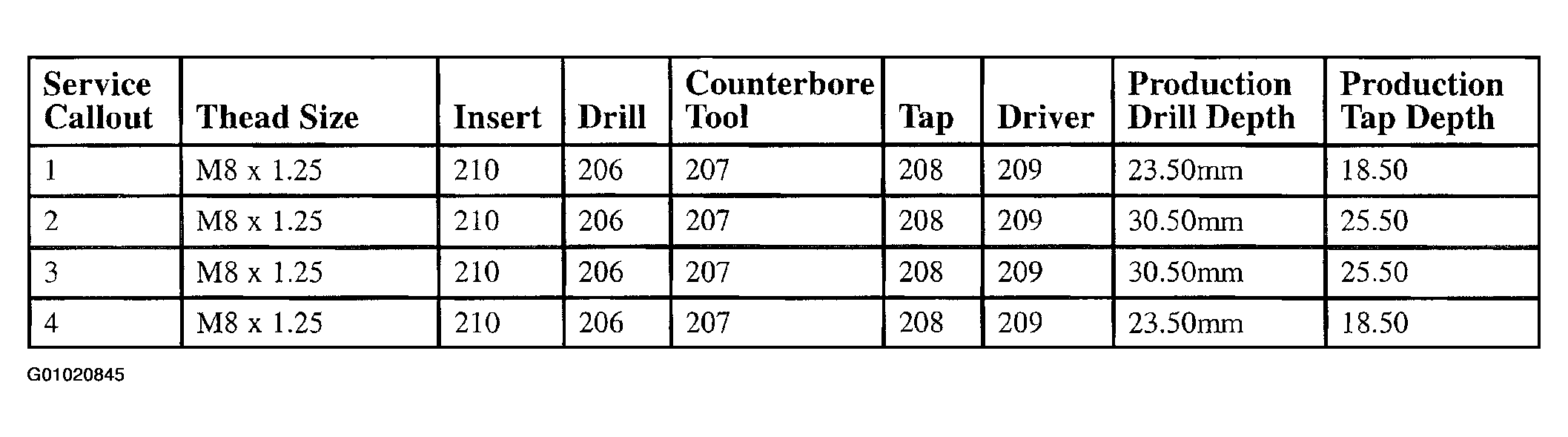

Fig 2: Lower Crankcase (Front View) Specifications

G01020845

Courtesy of GENERAL MOTORS CORP.
