Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> General Information >> Specifications >> Lower Crankcase (Bottom View)

Lower Crankcase (Bottom View)

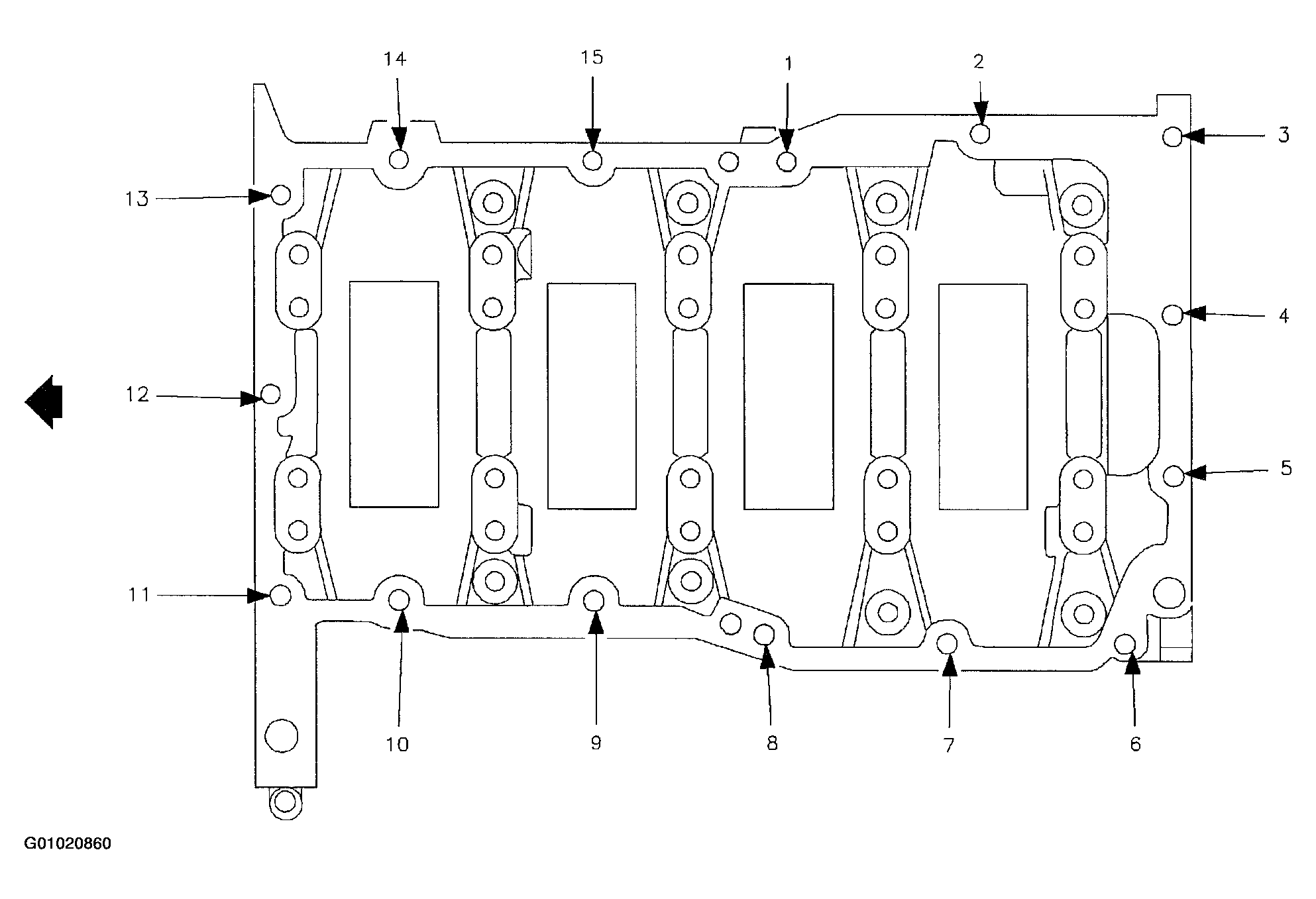

Fig 1: Lower Crankcase (Bottom View)

G01020860

Courtesy of GENERAL MOTORS CORP.

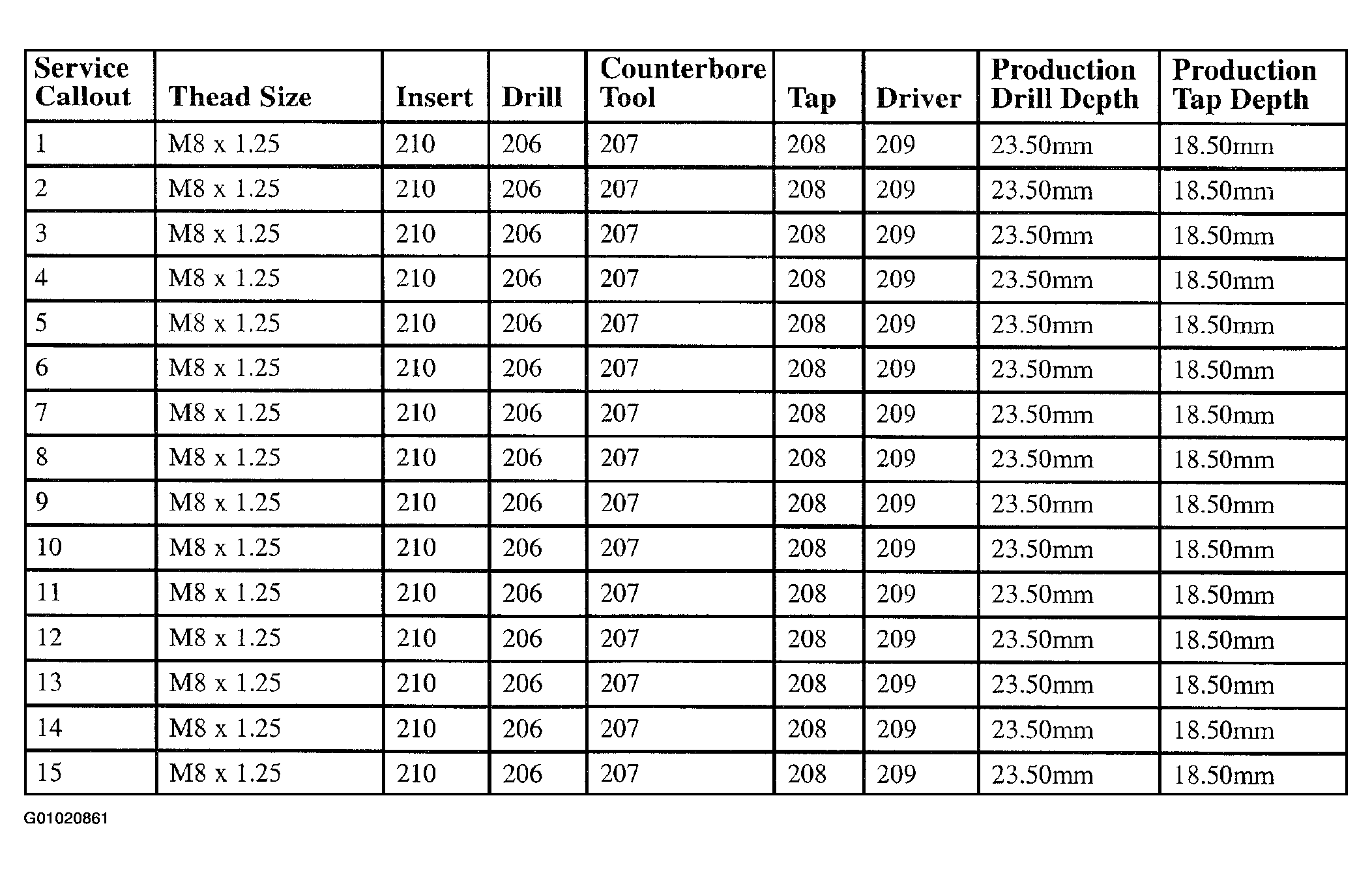

Fig 2: Lower Crankcase (Bottom View) Specifications

G01020861

Courtesy of GENERAL MOTORS CORP.
