Lower Crankcase (Back View)

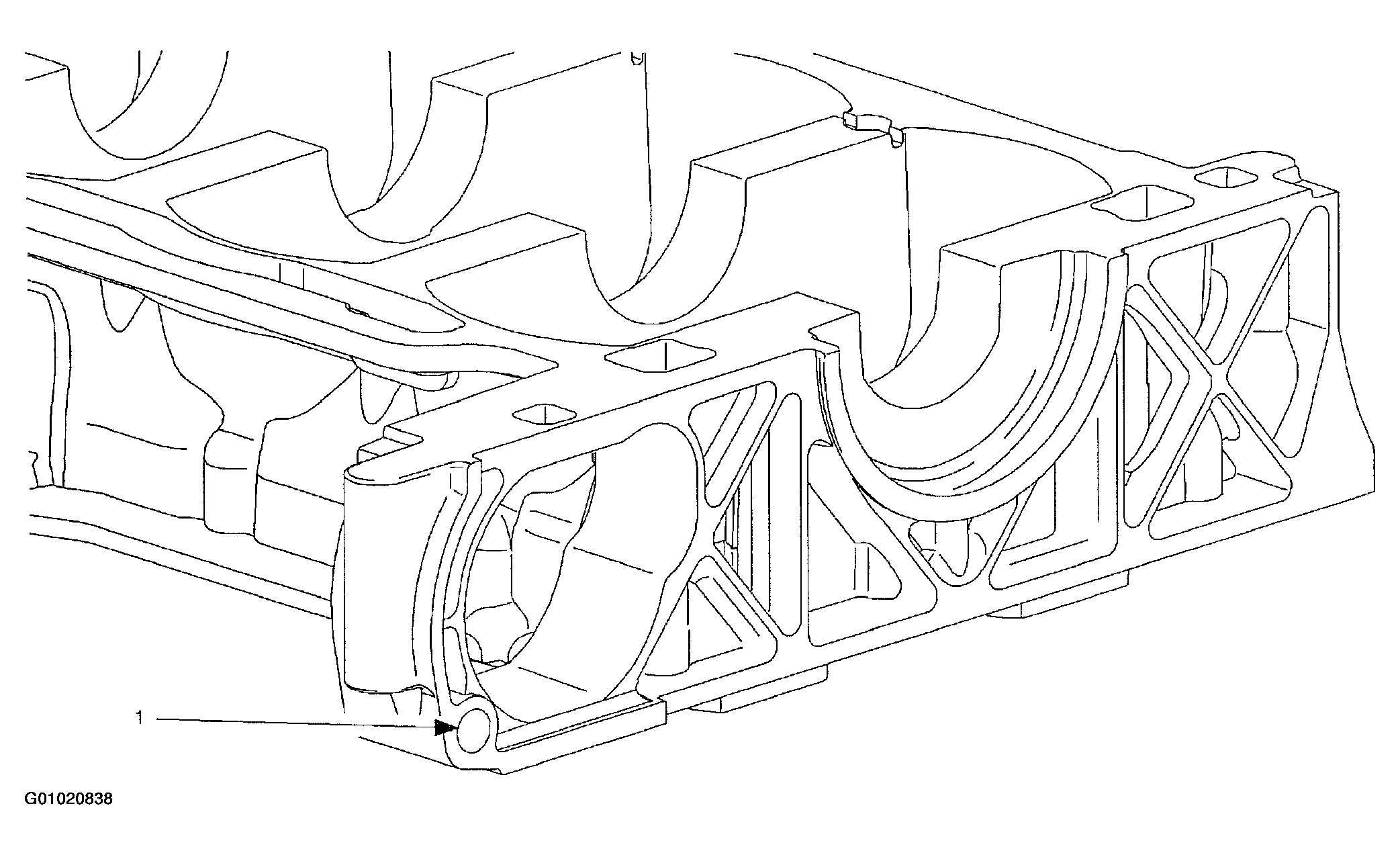

Fig 1: Lower Crankcase (Back View)

G01020838

Courtesy of GENERAL MOTORS CORP.

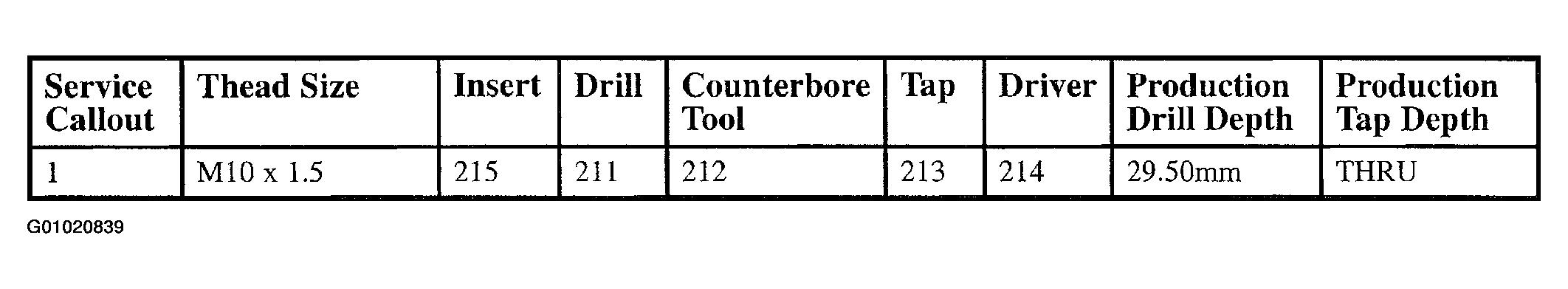

Fig 2: Lower Crankcase (Back View) Specifications

G01020839

Courtesy of GENERAL MOTORS CORP.
