Engine Block (Top View)

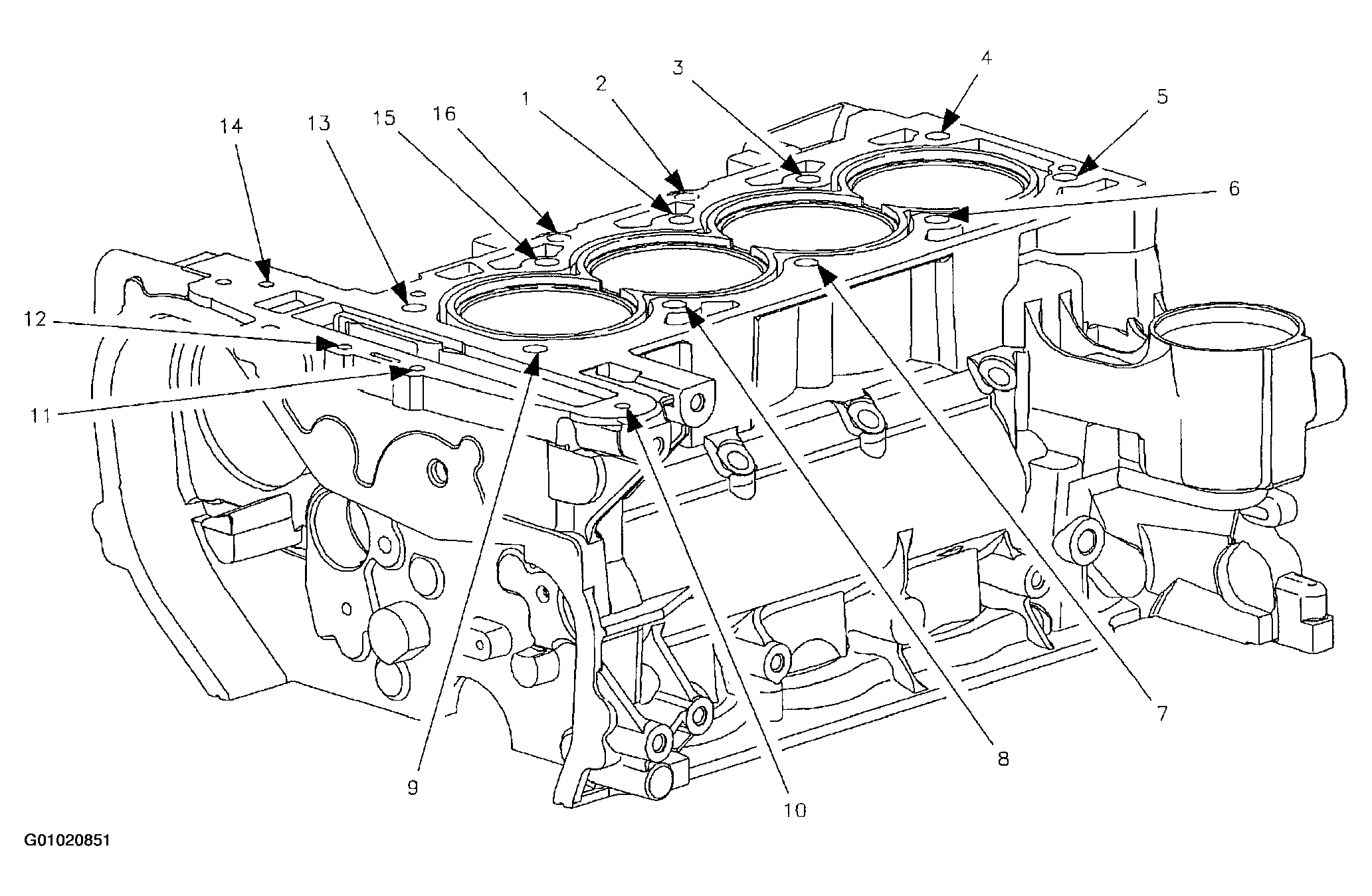

Fig 1: Engine Block (Top View)

G01020851

Courtesy of GENERAL MOTORS CORP.

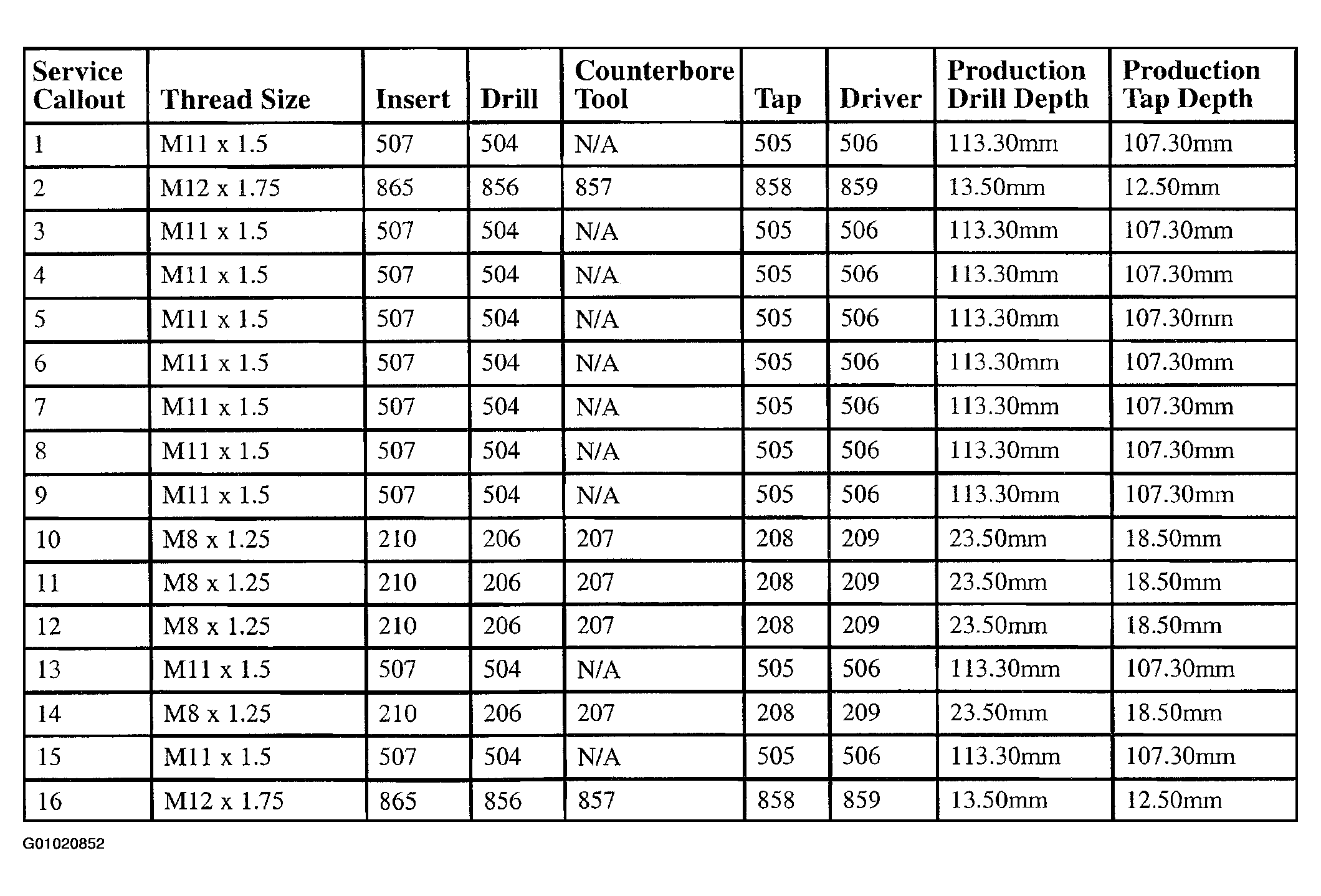

Fig 2: Engine Block (Top View)

G01020852

Courtesy of GENERAL MOTORS CORP.
