Cylinder Head (Back View)

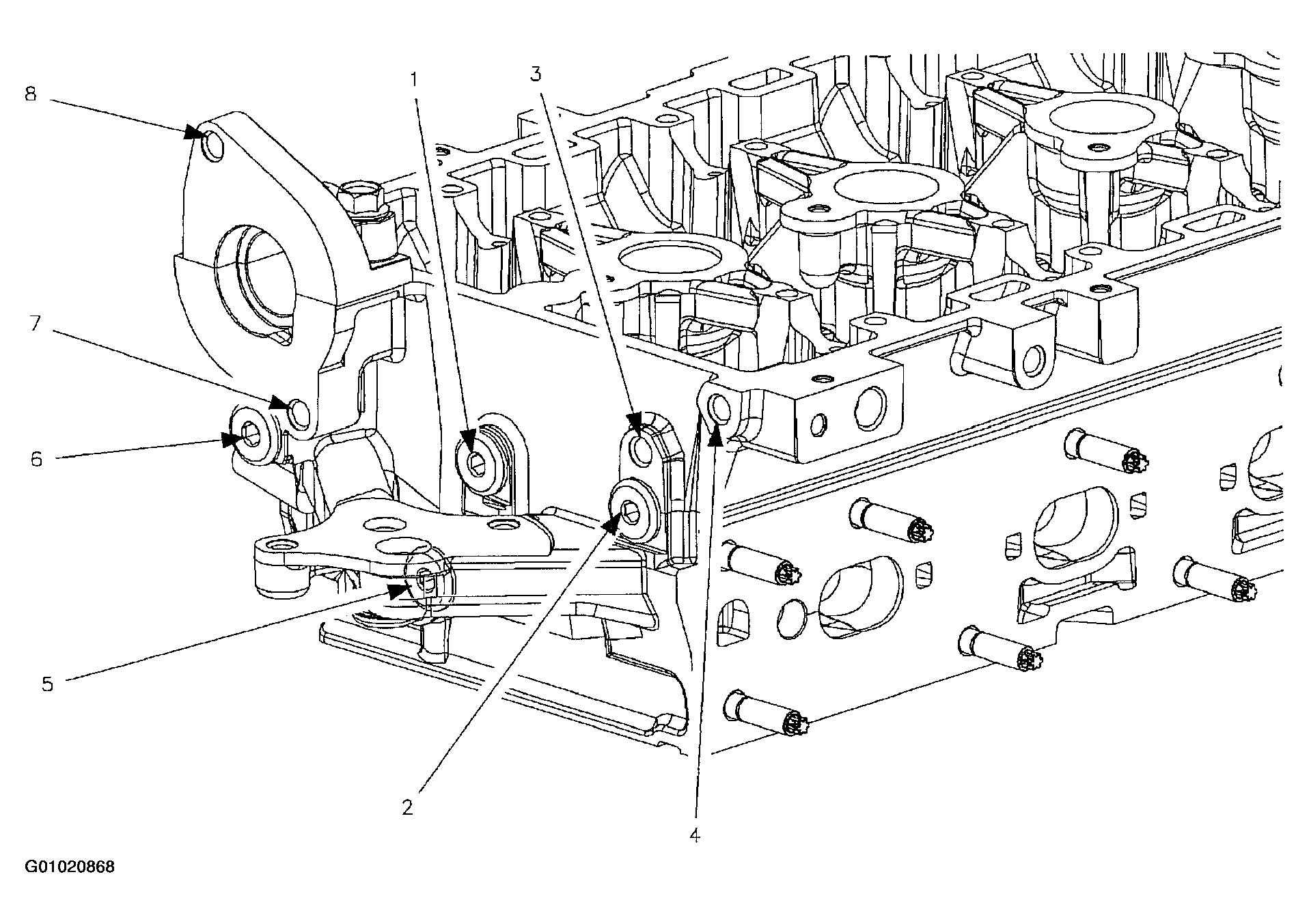

Fig 1: Cylinder Head (Back View)

G01020868

Courtesy of GENERAL MOTORS CORP.

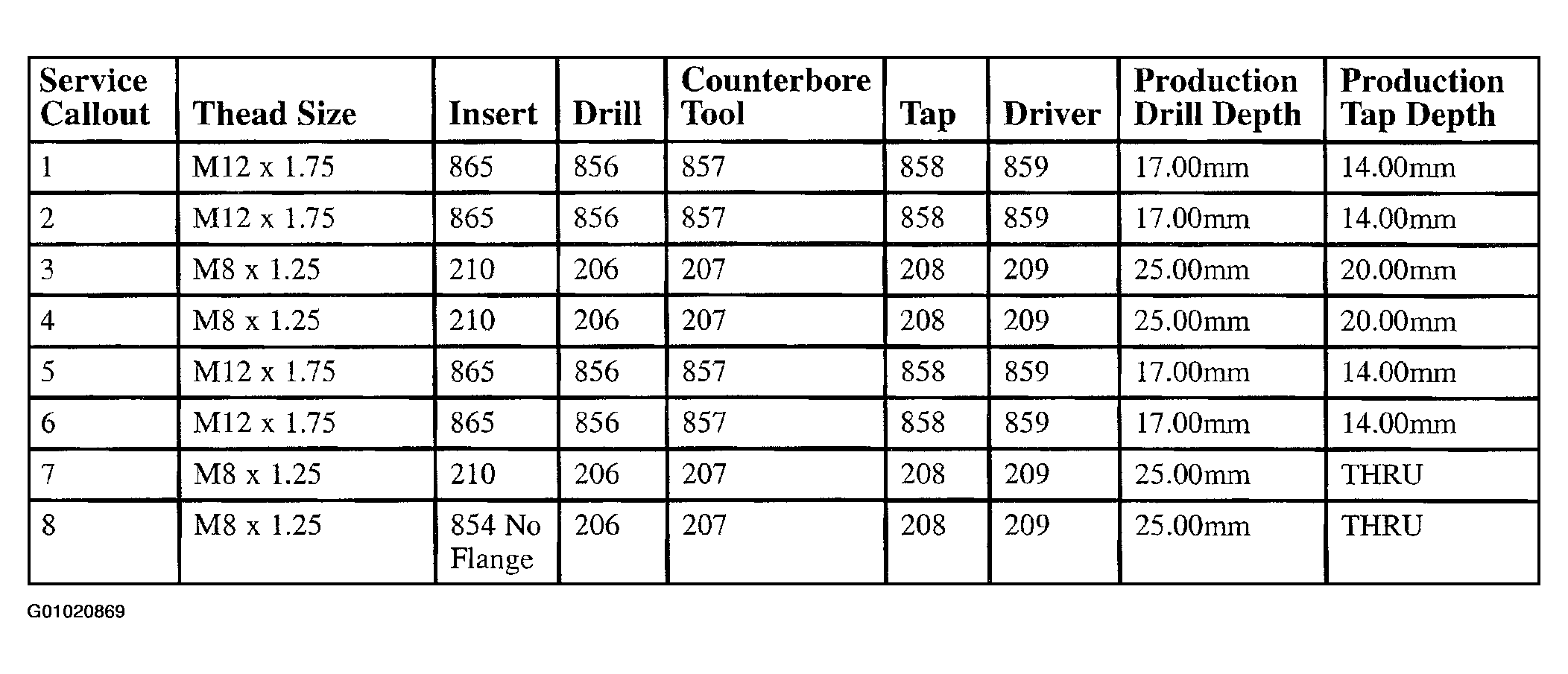

Fig 2: Cylinder Head (Back View) Specifications

G01020869

Courtesy of GENERAL MOTORS CORP.
