Installation Procedure

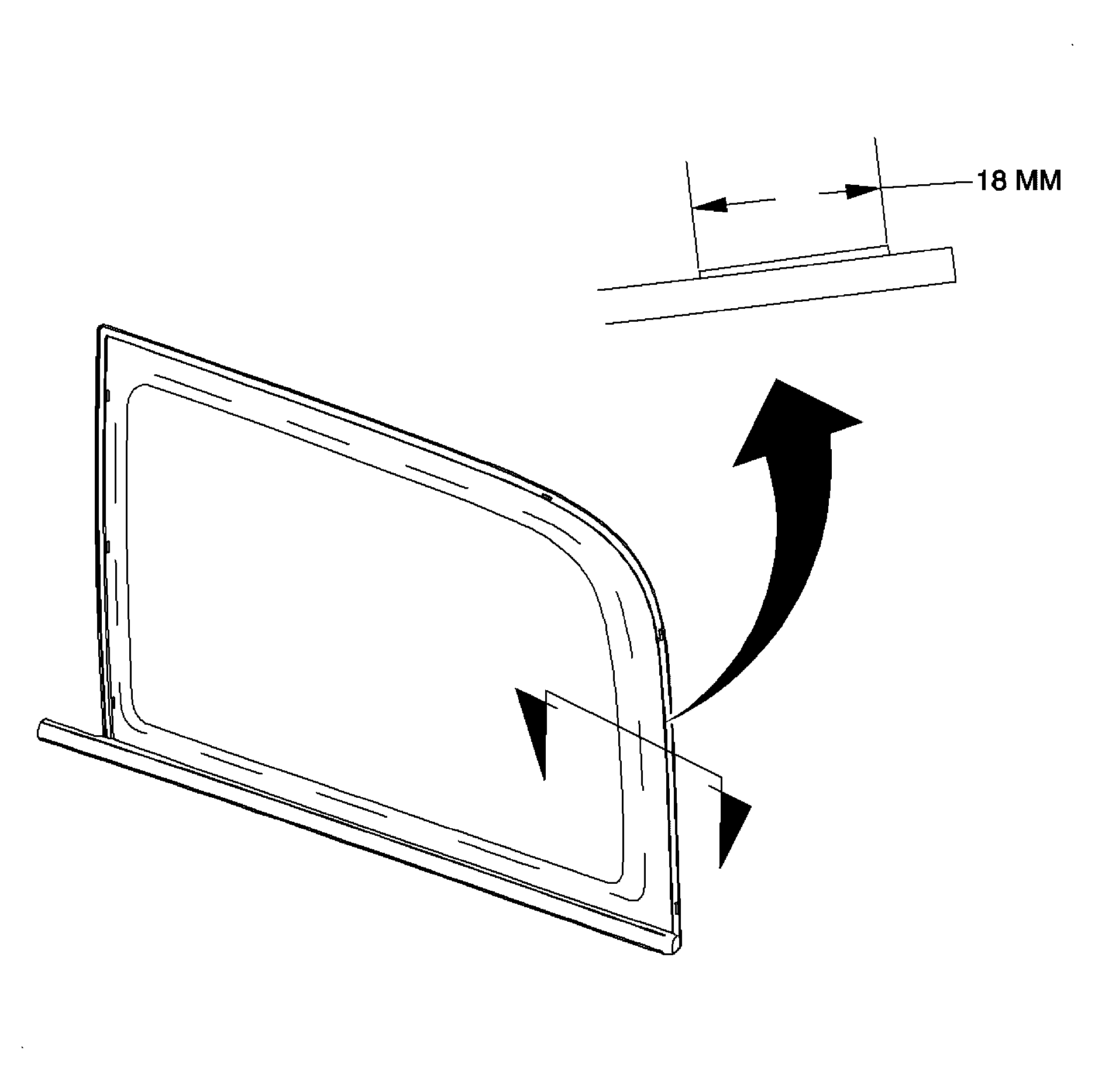

    Fig 1: Removing & Installing Quarter Window - Wagon
    GM893691Courtesy of GENERAL MOTORS CORP.
  1. Install a quarter window into the opening. Refer to Urethane Adhesive Installation of Bodyside Stationary Windows (Sedan)  or Urethane Adhesive Installation of Bodyside Stationary Windows (Wagon)  or Urethane Adhesive Installation of Bodyside Stationary Windows (Lift Gate) .
  2. Remove the double layer of masking tape around the perimeter of the painted surfaces and the interior trim.
  3. Install the rear upper garnish molding. Refer to Garnish Molding Replacement - Rear Upper in Interior Trim.
  4. Raise the rear seat back.
