Windows
>>
Door System, Mirror System & Window System
>>
Schematic and Routing Diagrams
>>
Door Lock/Indicator Schematics
Door Lock/Indicator Schematics

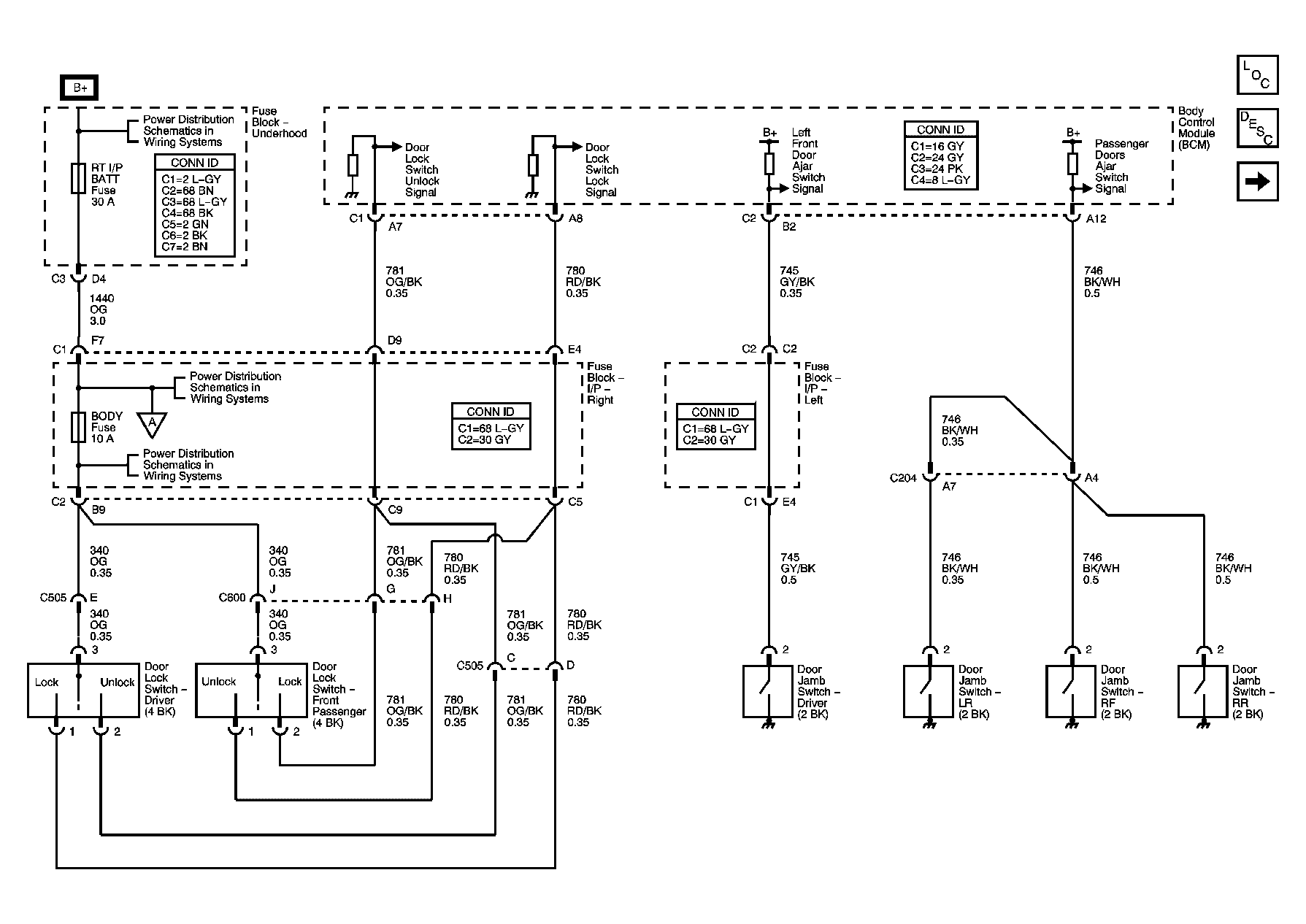

Fig 1: Door Lock Switches and Door Jamb Switches
Courtesy of GENERAL MOTORS CORP.

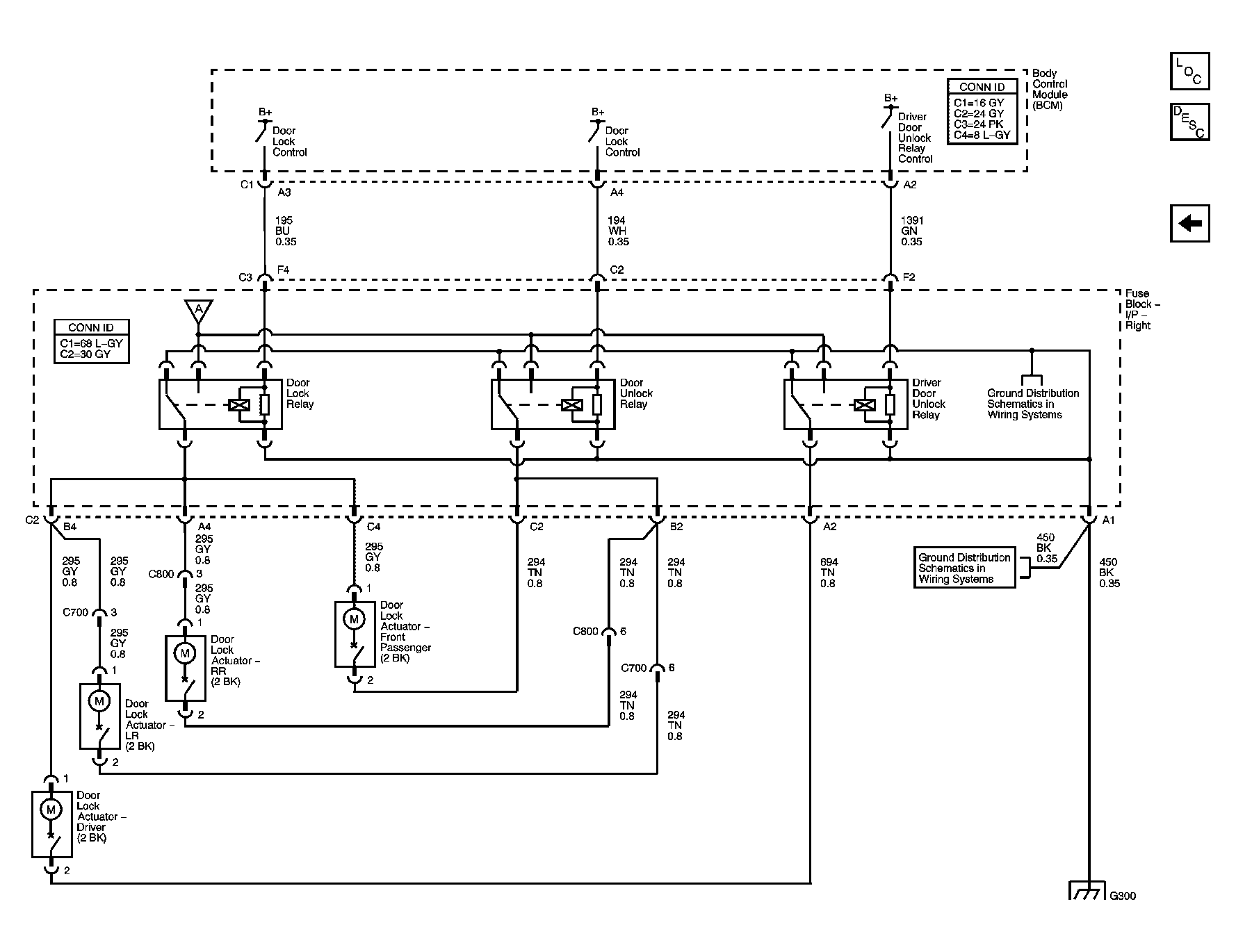

Fig 2: Door Lock Actuators
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
