Power Seat Recliner Motor: Installation

  1. Install recliner actuator motor and fasteners. Tighten seat back recliner motor-to-seat adjuster fasteners to 6 N.m (53 in lbs).

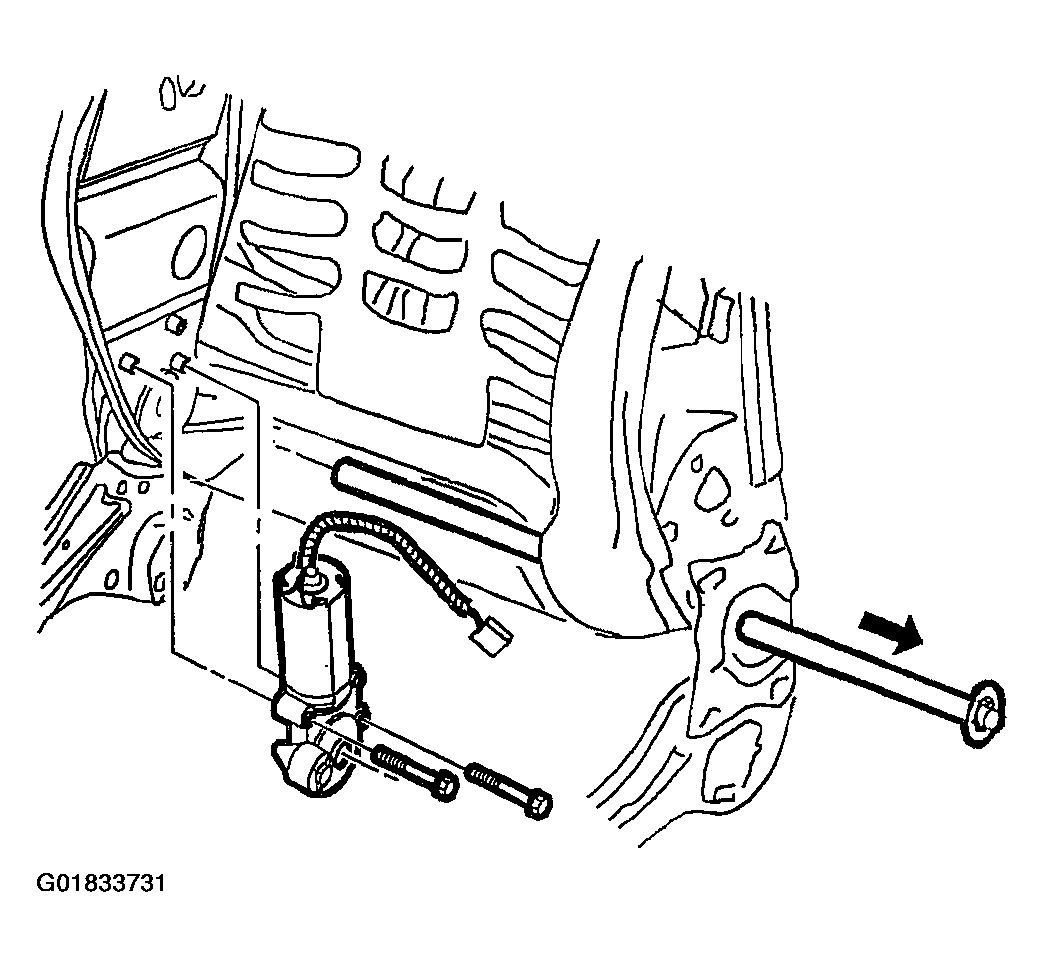

    2. Fig 1: Installing Recliner Actuator Motor
    G01833731Courtesy of GENERAL MOTORS CORP.
  2. Install the front seatback recliner actuator shaft and secure with retainer.

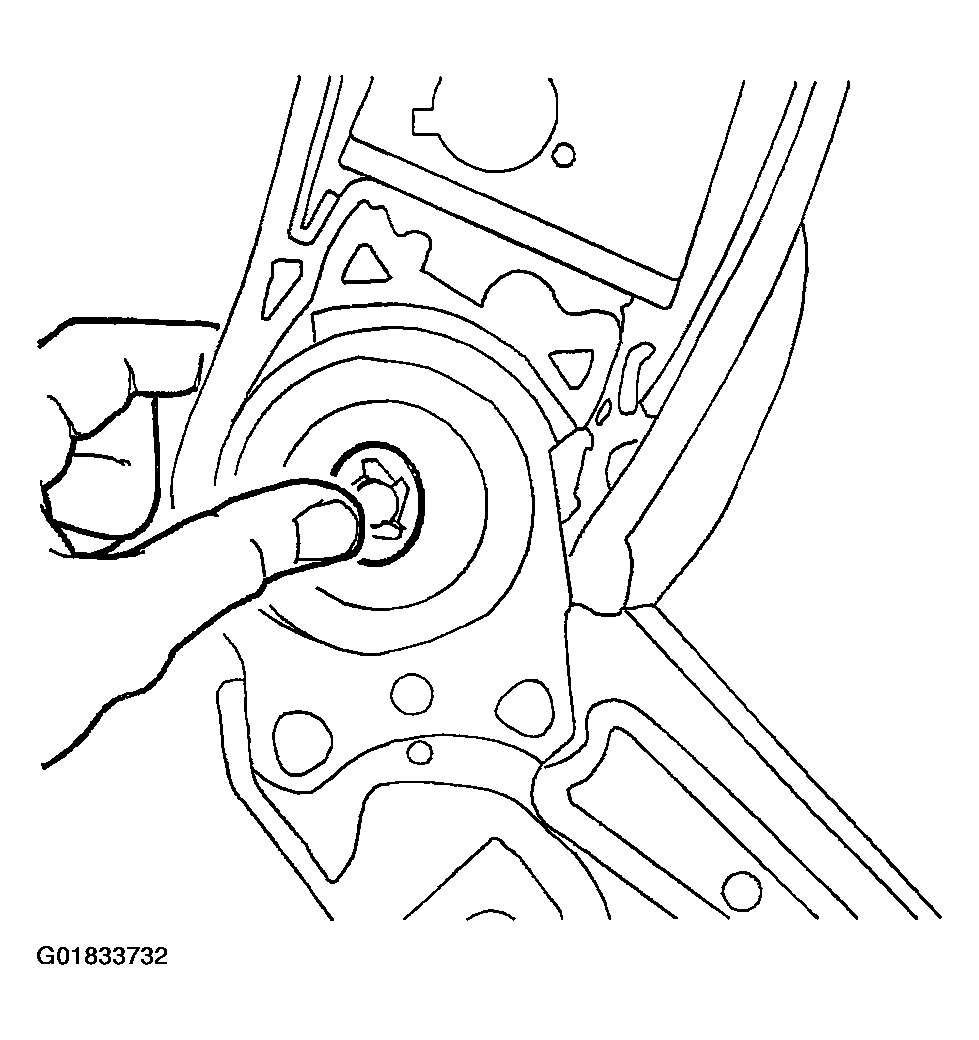

    3. Fig 2: Installing Front Seatback Recliner Actuator Shaft
    G01833732Courtesy of GENERAL MOTORS CORP.
  3. Install front seat back power recliner actuator motor electrical connections.

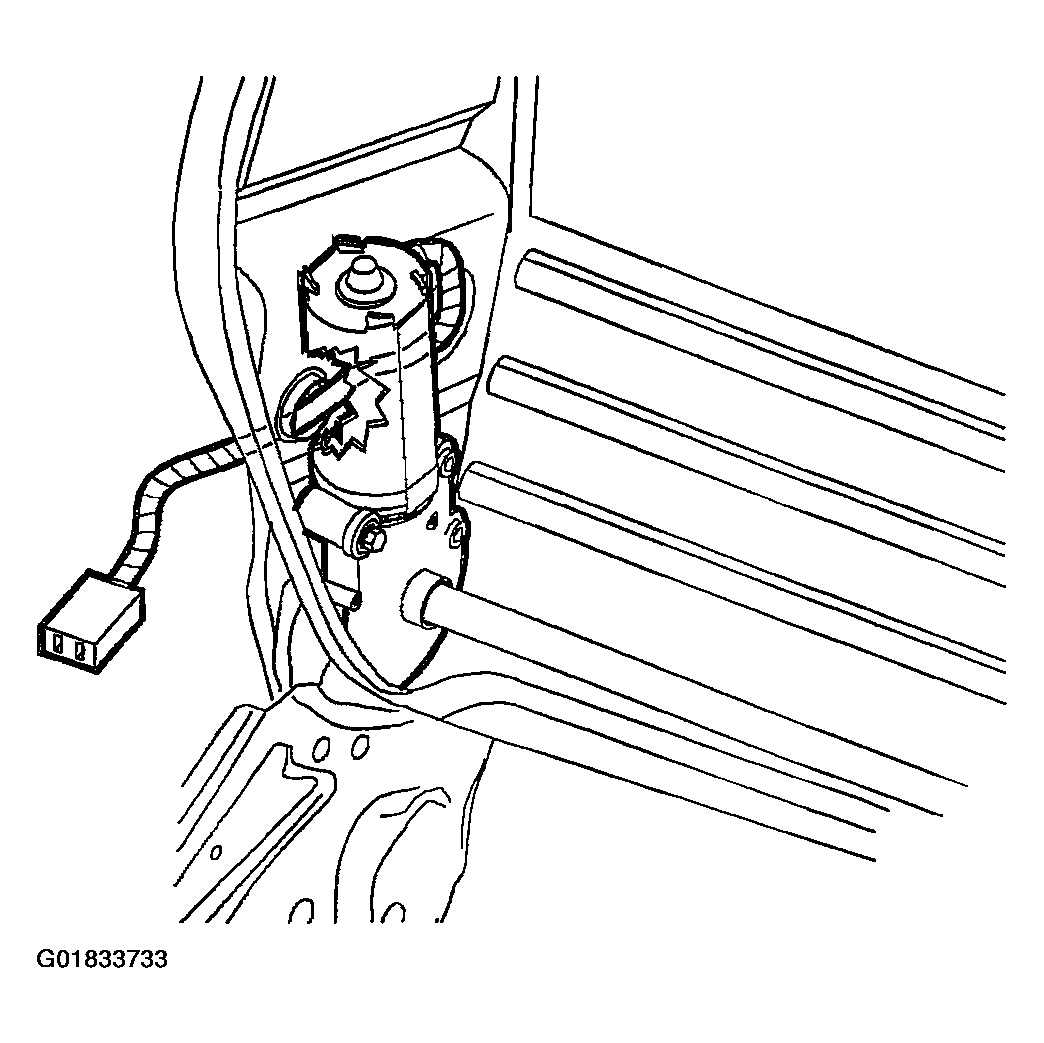

    4. Fig 3: Identifying Power Recliner Actuator Motor Electrical Connection
    G01833733Courtesy of GENERAL MOTORS CORP.
  4. Install front seat back pad/cover. Refer to FRONT SEAT BACK FRAME/PAD/COVER  .

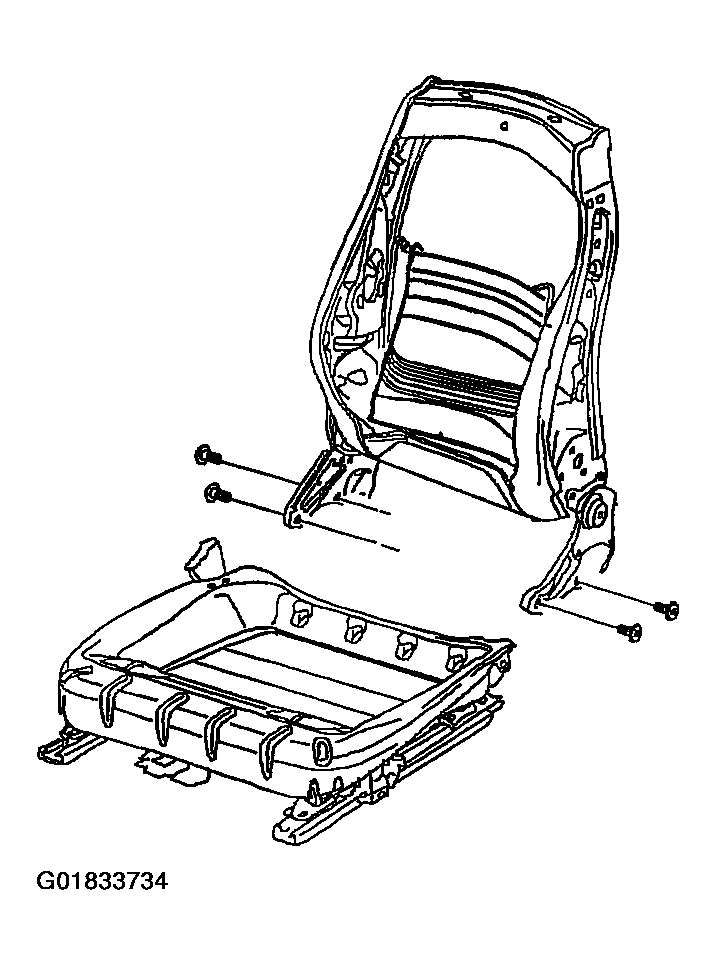

    5. Fig 4: Installing Front Seat Back Pad/Cover
    G01833734Courtesy of GENERAL MOTORS CORP.
  5. Install front seat. Refer to FRONT SEAT  .

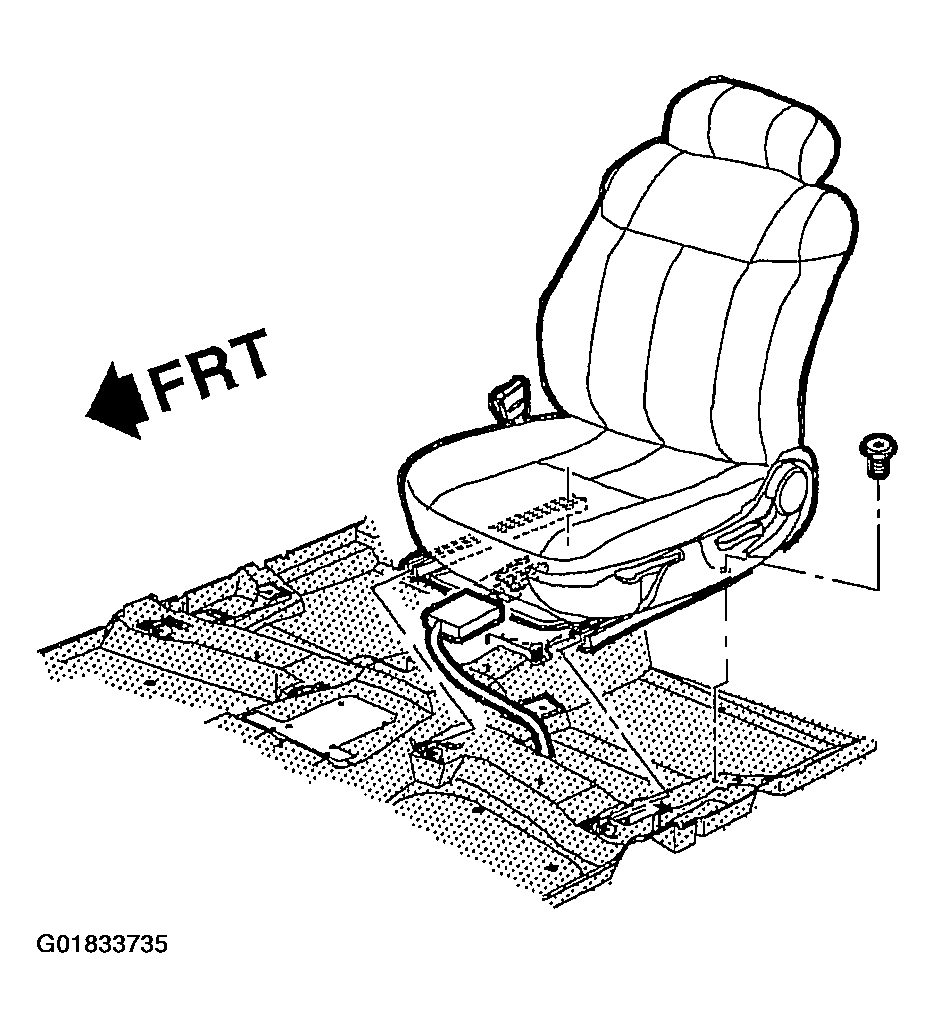

    6. Fig 5: Installing Front Seat
    G01833735Courtesy of GENERAL MOTORS CORP.
