Chart 2 - Lock Function Inoperative - Unlock Function Operates Normally

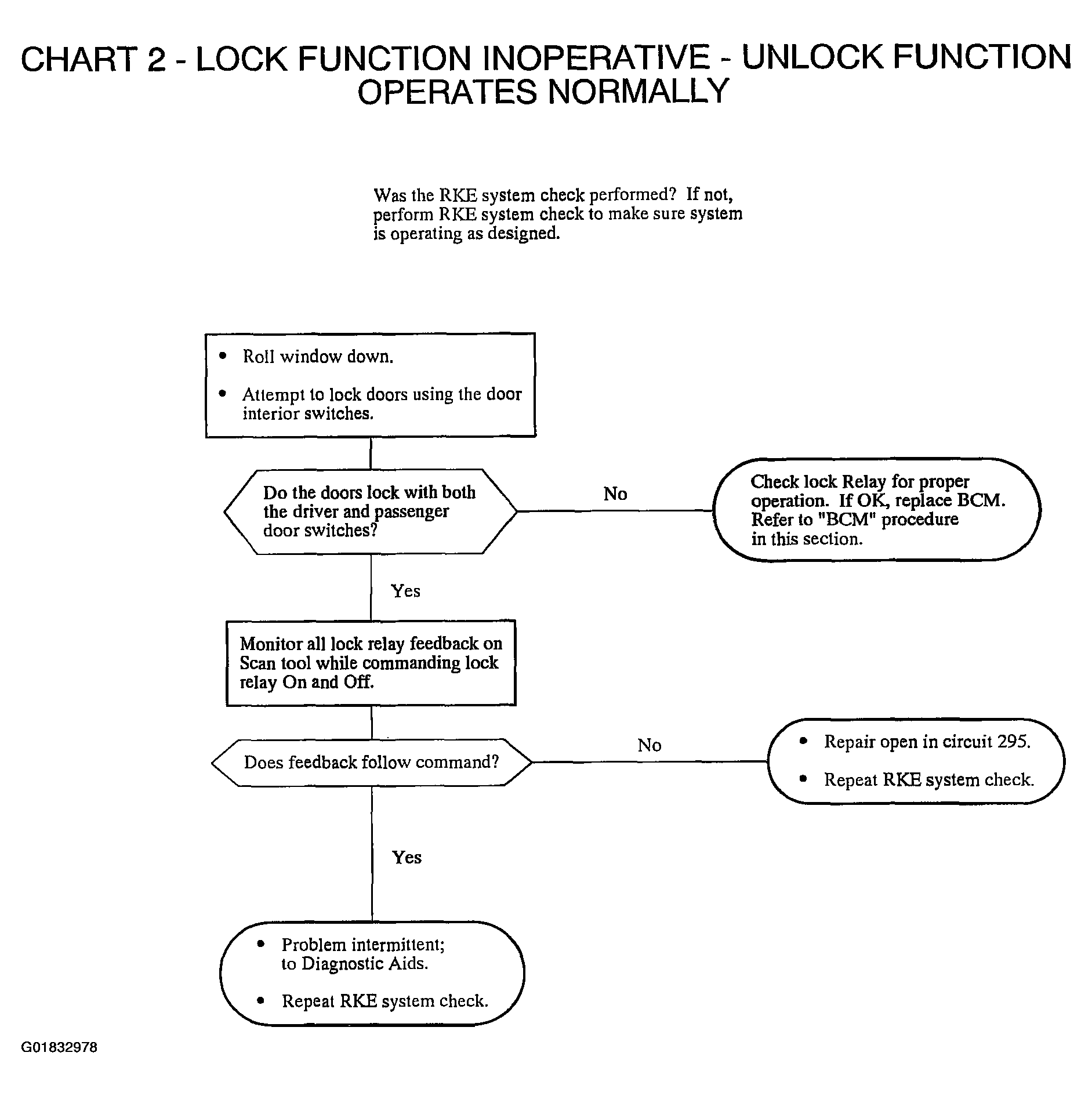

Fig 1: Chart 2 - Lock Function Inoperative - Unlock Function Operates Normally

G01832978

Courtesy of GENERAL MOTORS CORP.
