Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Accessories & Equipment >> Wiper/Washer Systems >> Wiper System And Washer System >> Diagnostics >> System Check

System Check

NOTE: Ignition switch must be in the RUN position for the entire system check.

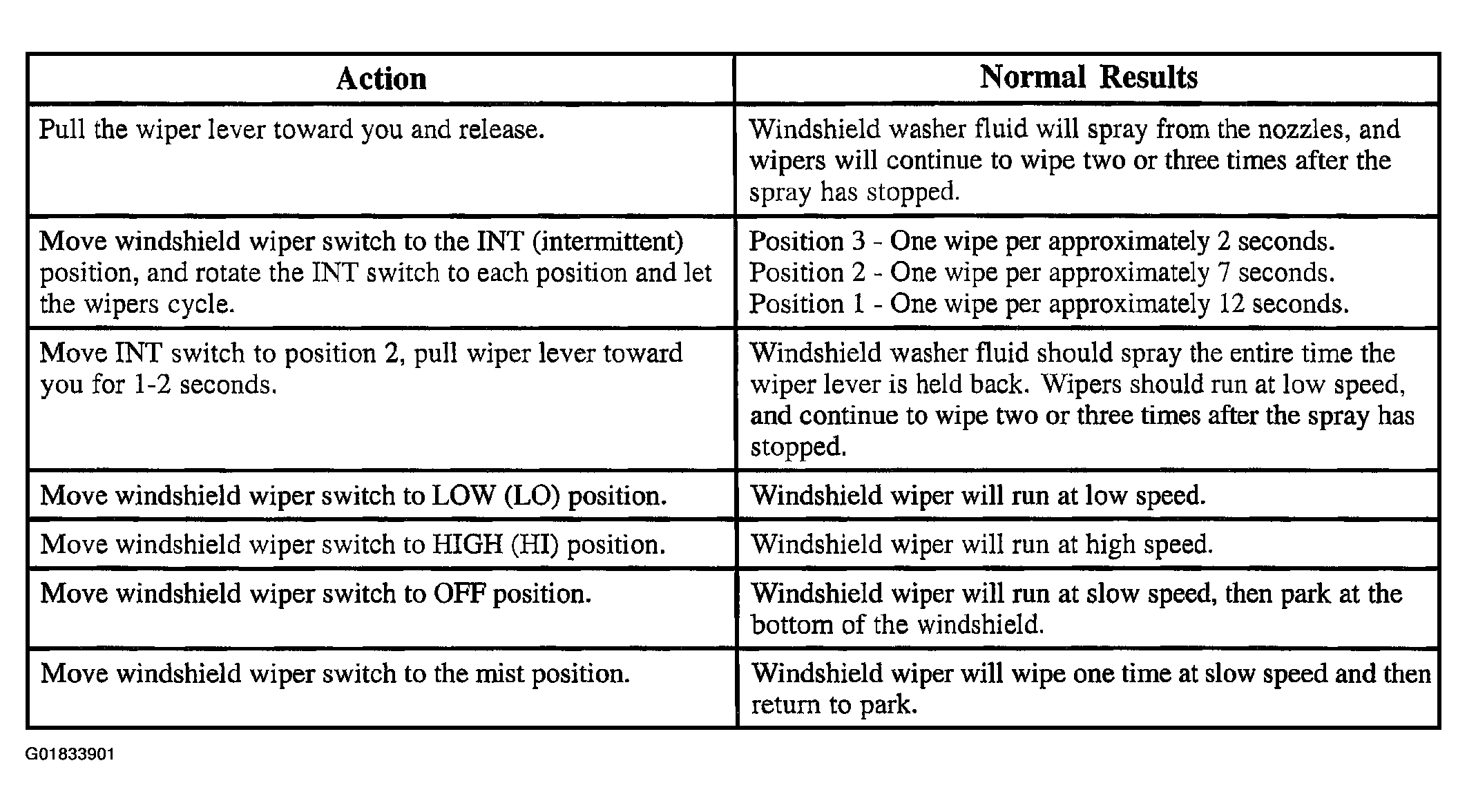

Fig 1: System Check

G01833901

Courtesy of GENERAL MOTORS CORP.
