Home >> Saturn >> 2002 >> L100 >> Repair and Diagnosis >> Accessories & Equipment >> Communication Devices >> Data Link Communication System >> Diagnostics >> Data Link Communication Schematics >> L61

Data Link Communication Schematics: L61

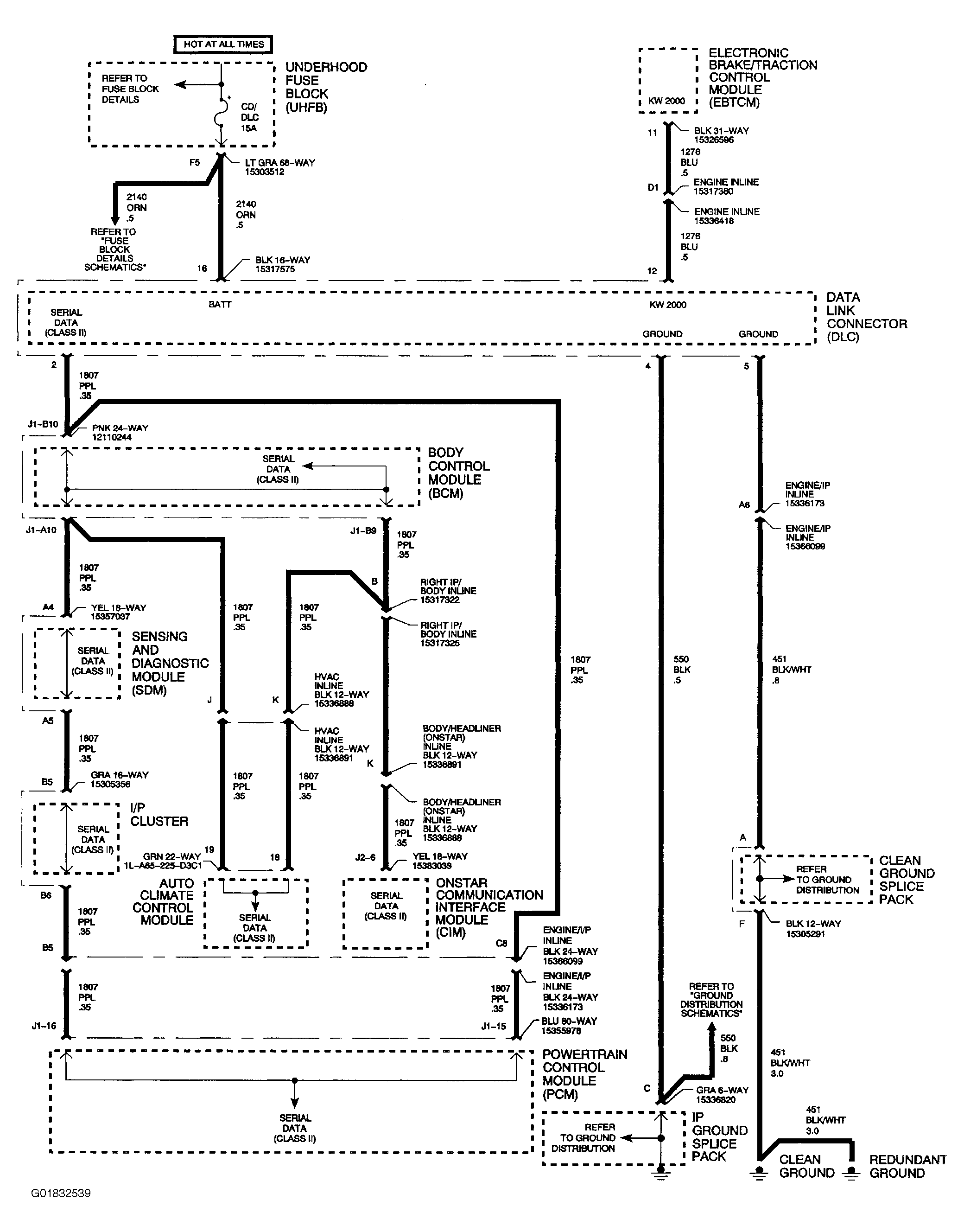

Fig 1: Data Link Communication Schematics

G01832539

Courtesy of GENERAL MOTORS CORP.
