DTC B2957: Security System Sensor Data Circuit Low: Notes

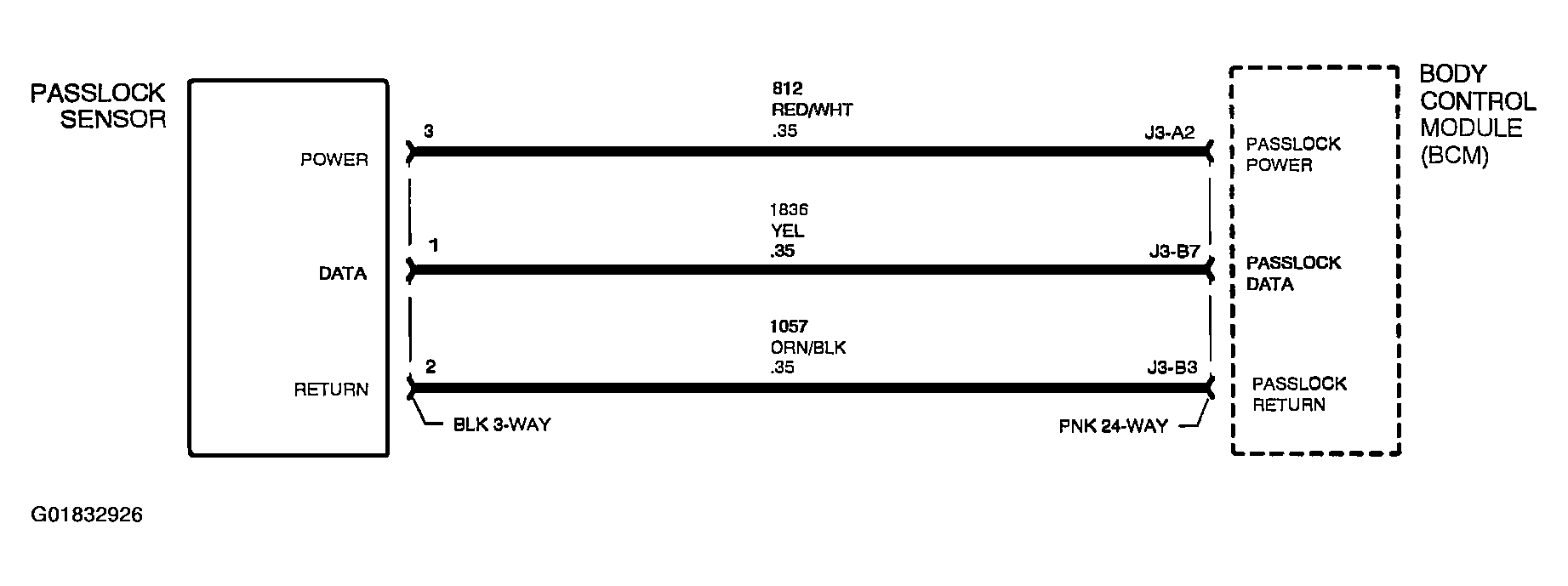

Fig 1: B2957 - Security System Sensor Data Circuit Low Schematic

Courtesy of GENERAL MOTORS CORP.

Passlock sensor data is supplied to the Body Control Module (BCM) by circuit 1836.

The passlock sensor data supplied to the BCM is in the form of V-codes or voltage codes. When the proper ignition key is turned in the ignition switch, the correct V-code is supplied to the BCM. The BCM responds by sending a serial data password to the engine controller allowing the engine to run.
