Gear Teeth Counts And Ratios

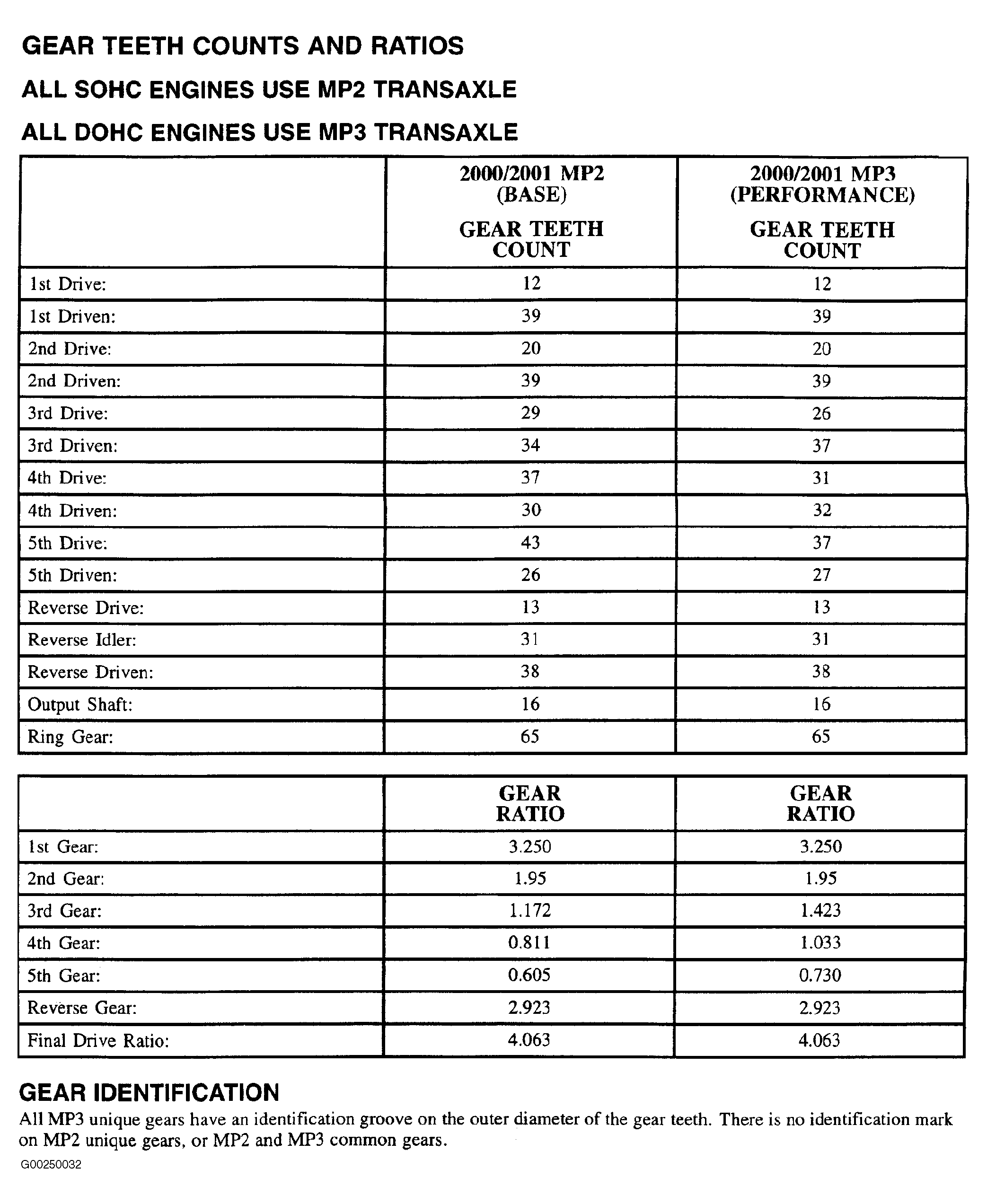

Fig 1: Gear Teeth Counts & Ratios Table

G00250032

Courtesy of GENERAL MOTORS CORP.
