Output Shaft - Component Locations

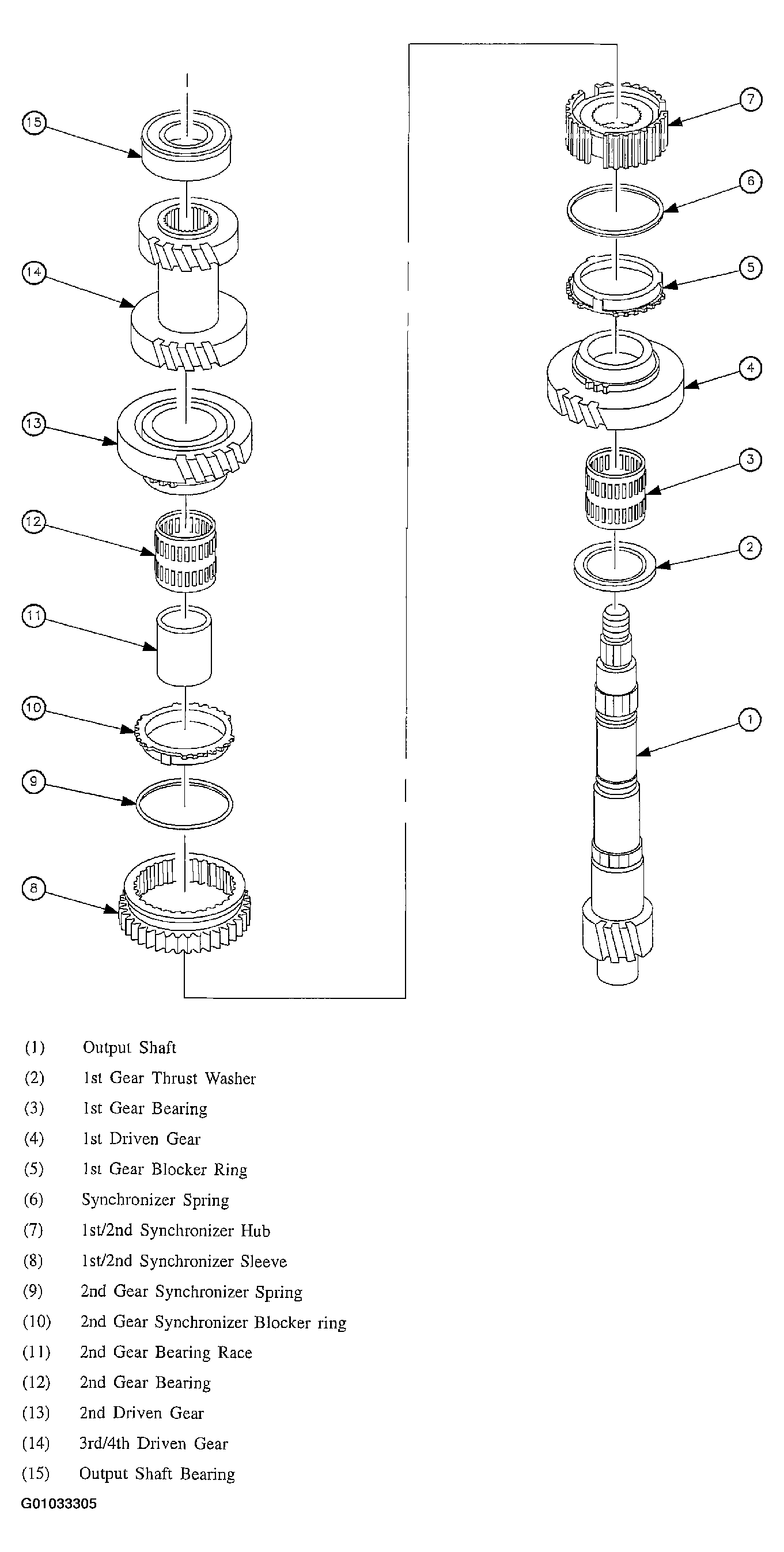

Fig 1: Exploded View Of Output Shaft

G01033305

Courtesy of GENERAL MOTORS CORP.
