Case & Internal Components - Component Locations

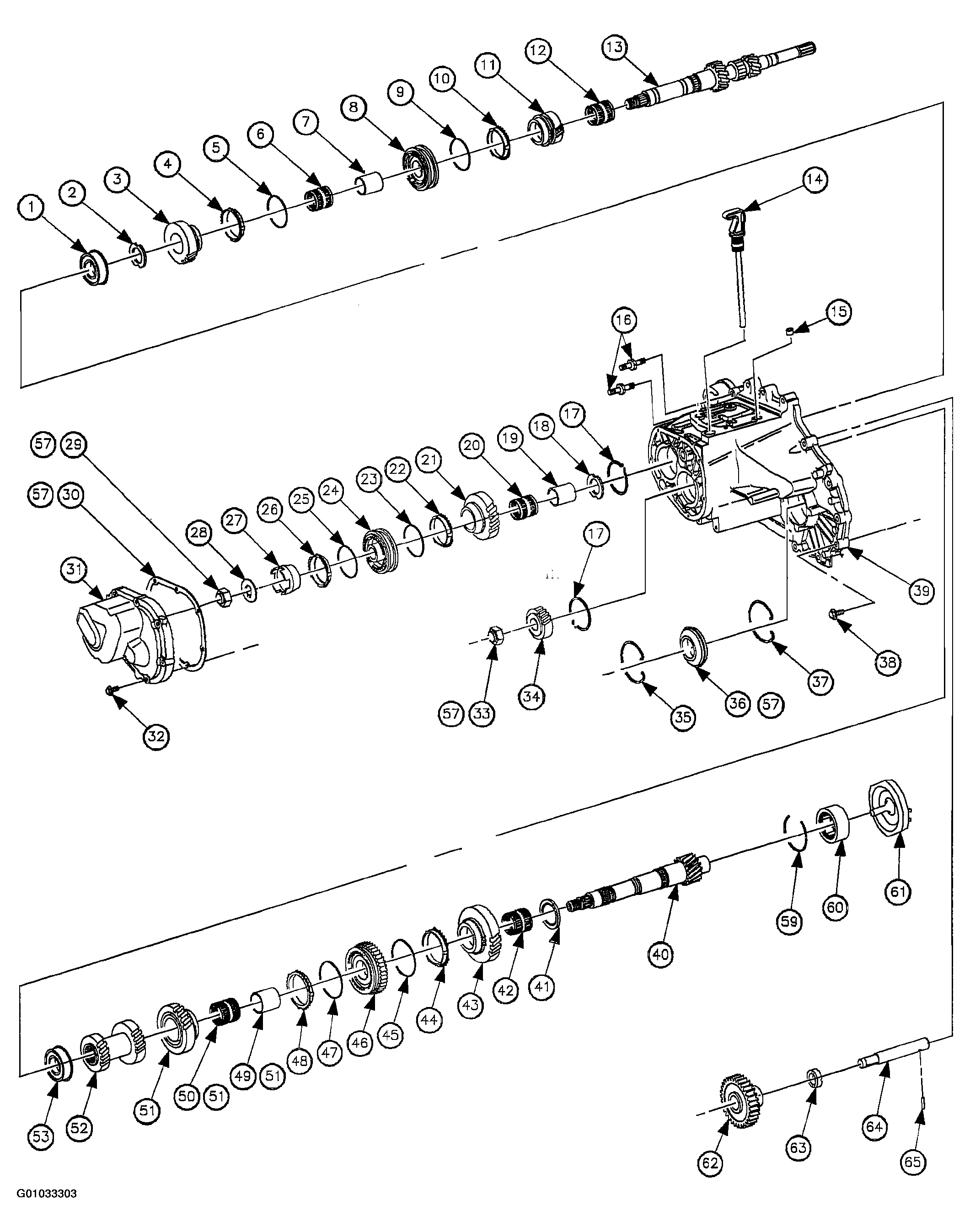

Fig 1: Exploded View Of Manual Transaxle (1 of 2)

Courtesy of GENERAL MOTORS CORP.

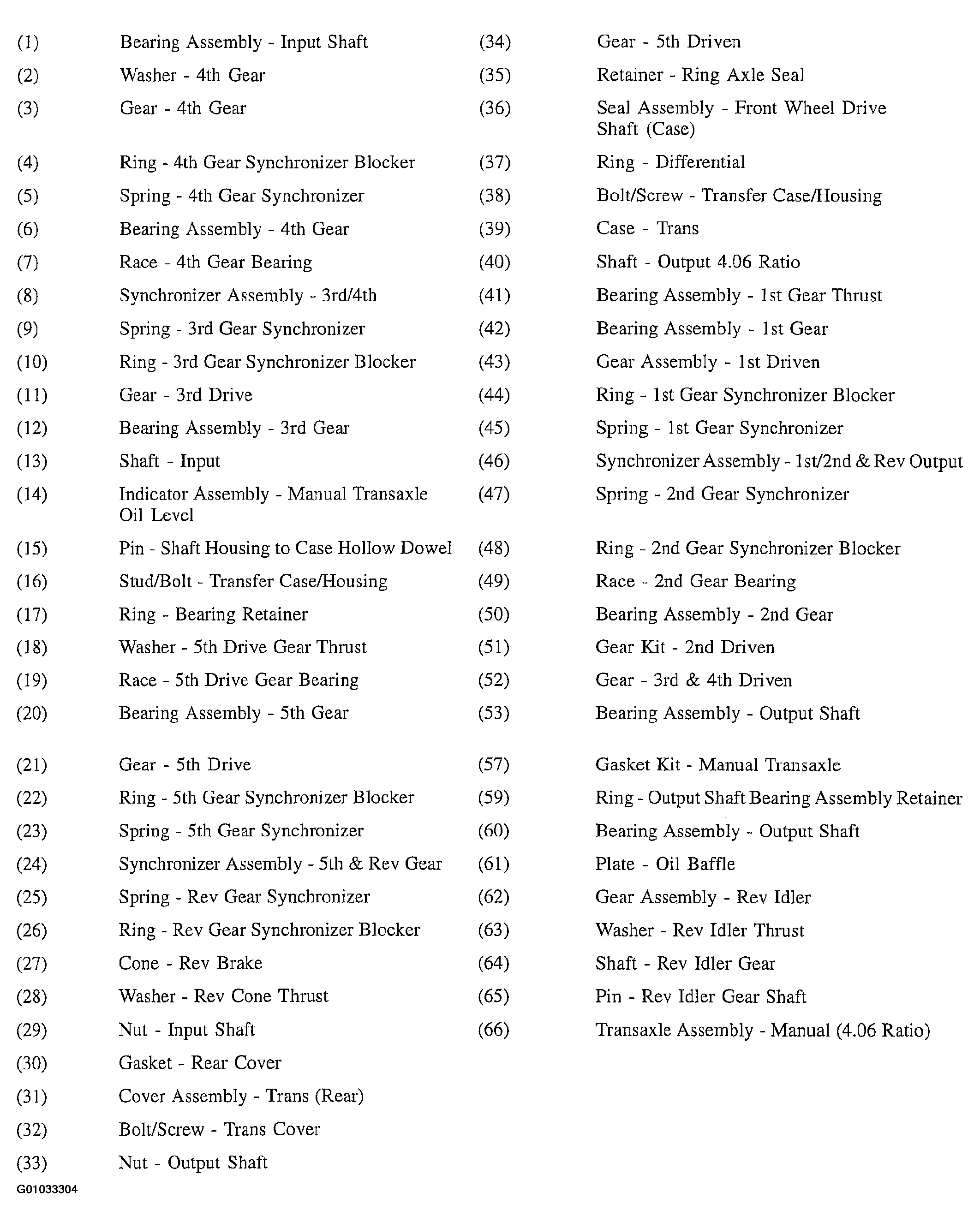

Fig 2: Manual Transaxle Component Names (2 of 2)

Courtesy of GENERAL MOTORS CORP.
