Engine Diagnostic Chart

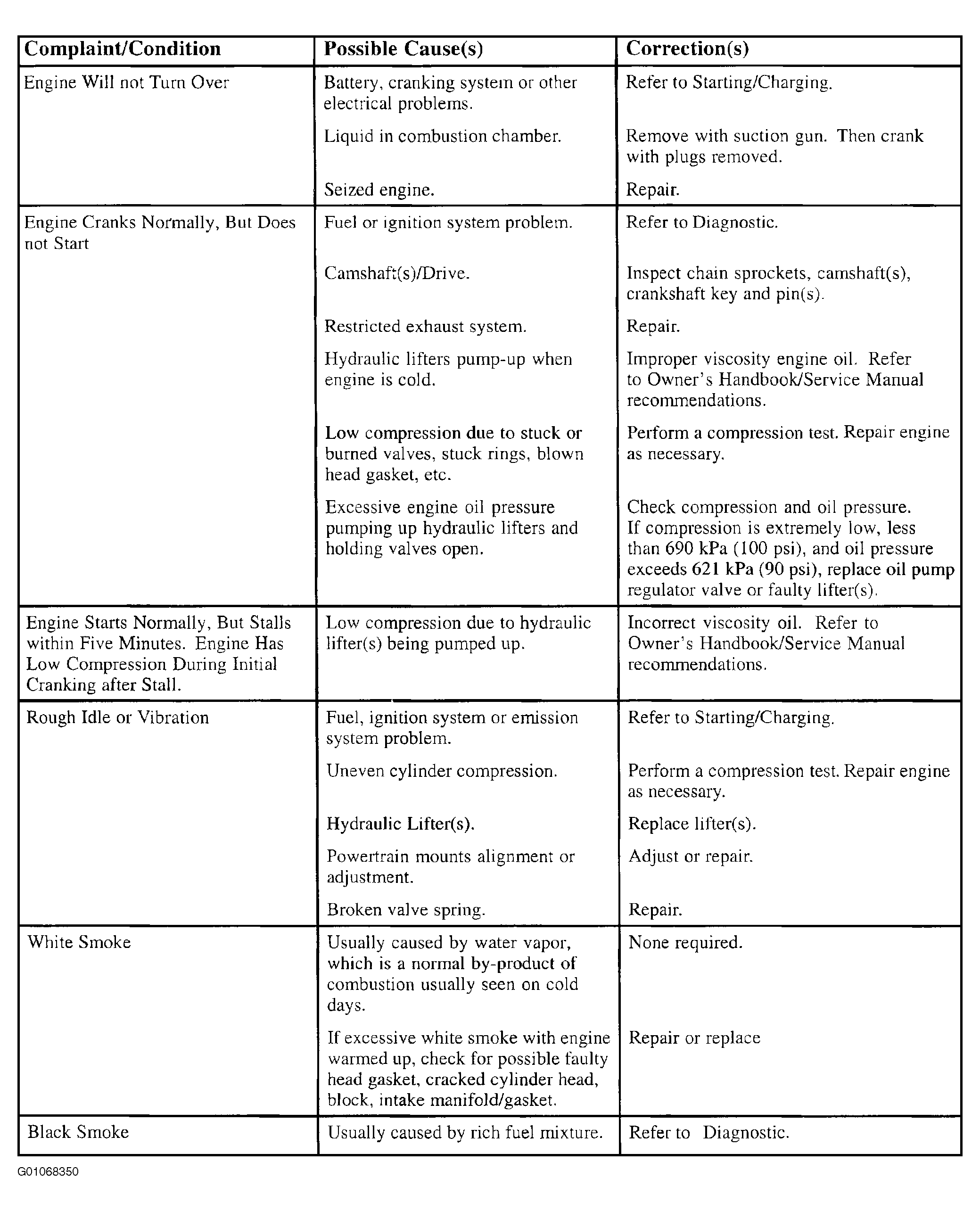

Fig 1: Engine Diagnostic Chart (1 of 5)
G01068350Courtesy of GENERAL MOTORS CORP.

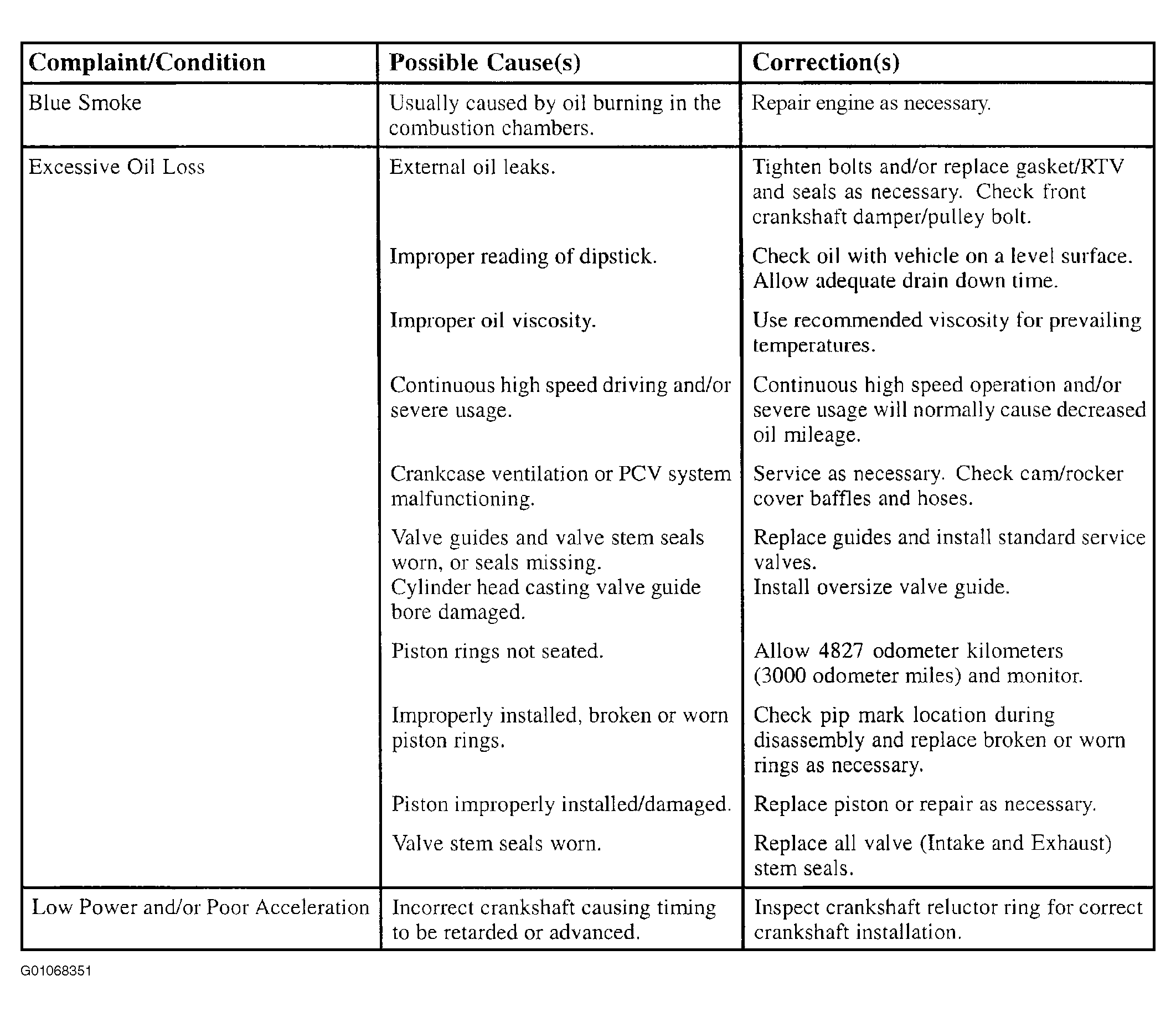

Fig 2: Engine Diagnostic Chart (2 of 5)
G01068351Courtesy of GENERAL MOTORS CORP.

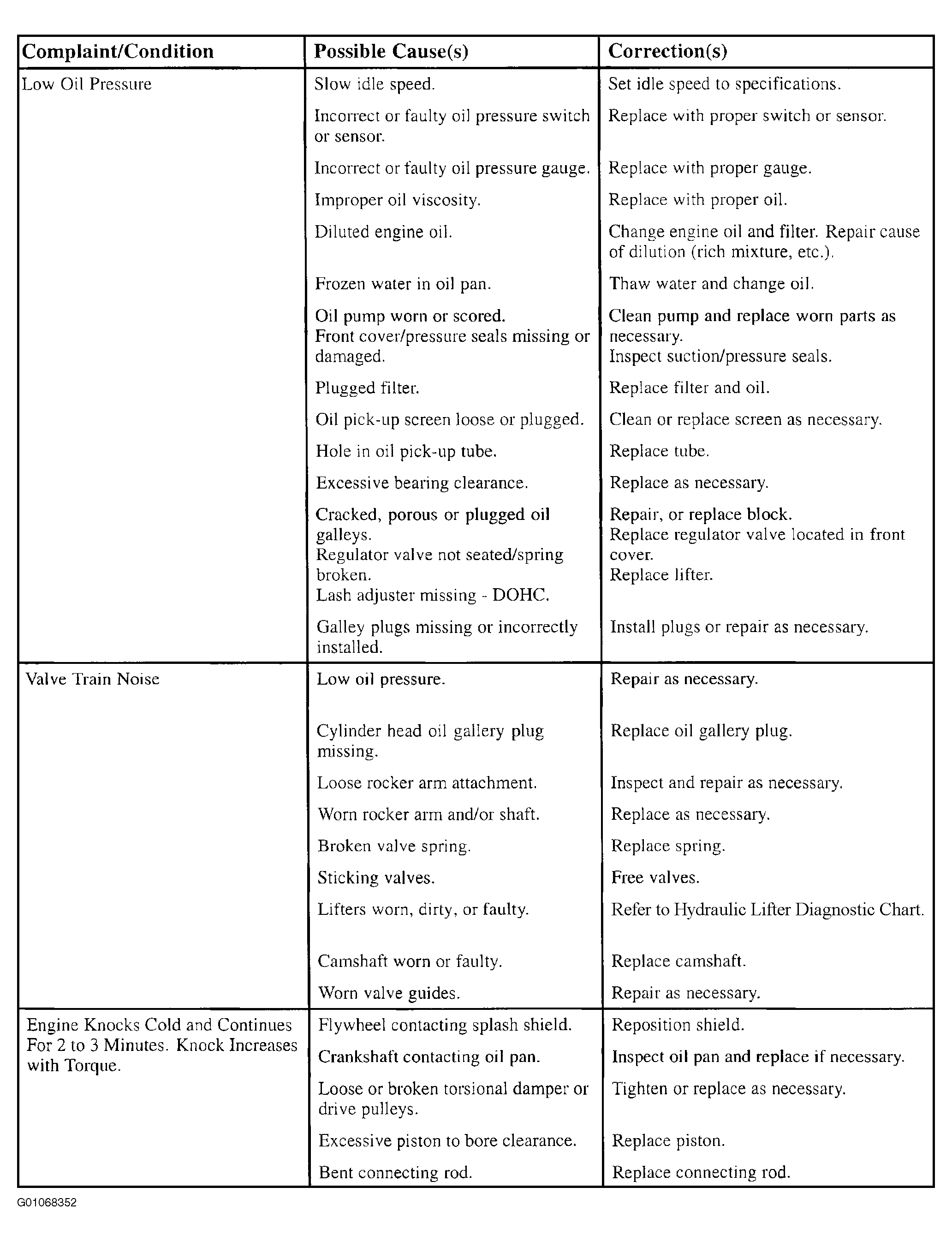

Fig 3: Engine Diagnostic Chart (3 of 5)
G01068352Courtesy of GENERAL MOTORS CORP.

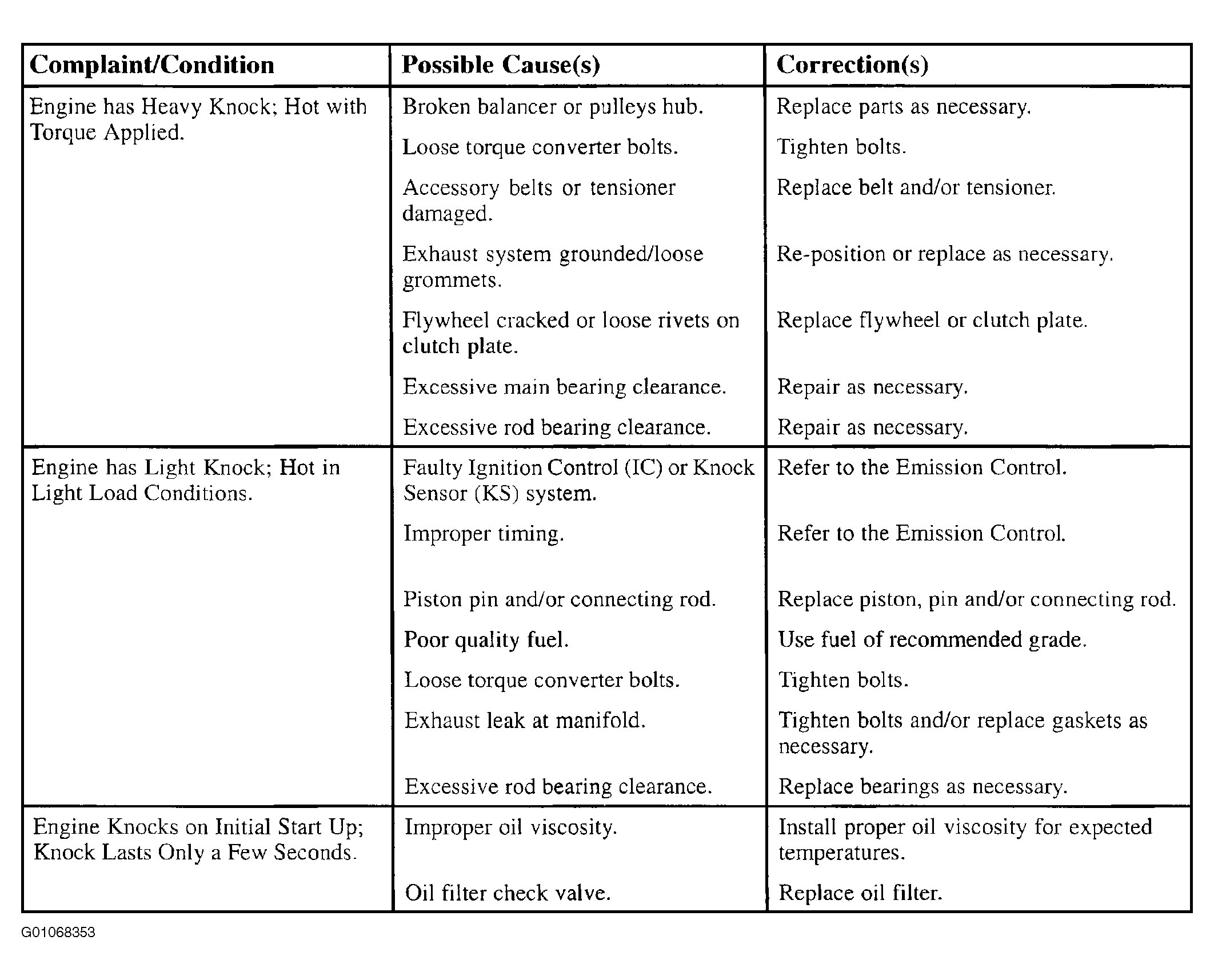

Fig 4: Engine Diagnostic Chart (4 of 5)
G01068353Courtesy of GENERAL MOTORS CORP.

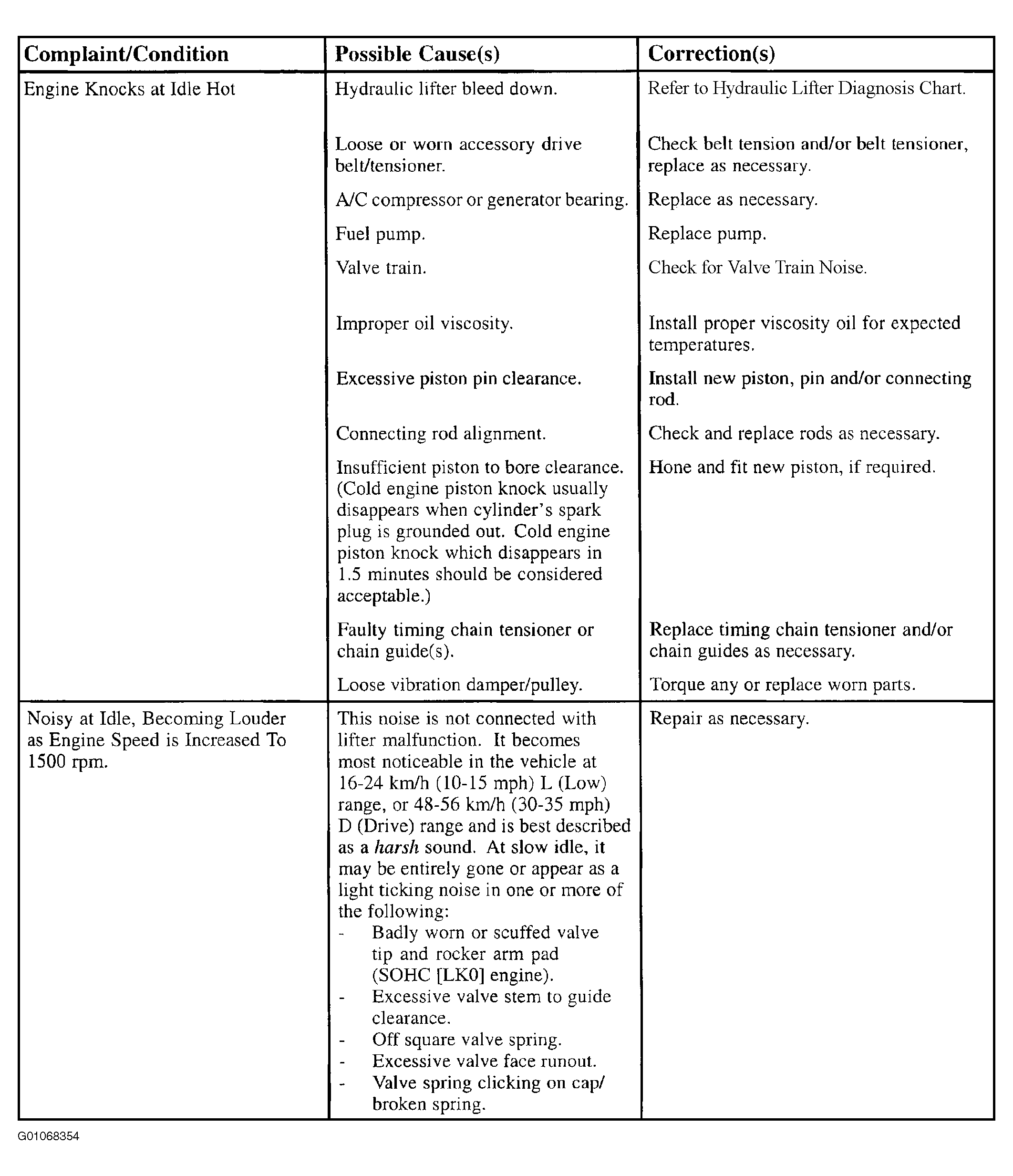

Fig 5: Engine Diagnostic Chart (5 of 5)
G01068354Courtesy of GENERAL MOTORS CORP.
