DTC P0705: Transmission Range Switch Circuit: Description

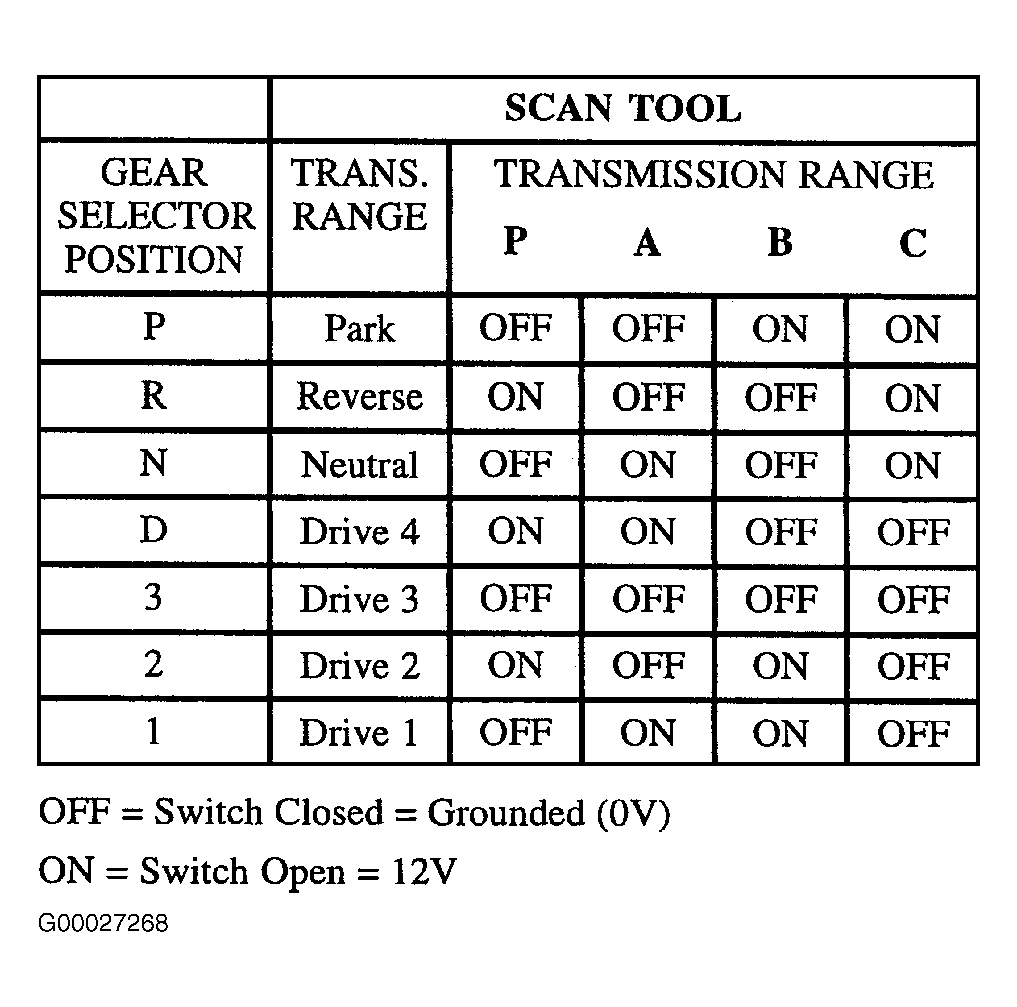

Transaxle Range (TR) switch uses 4 switches to signal TCM which gear position has been selected. Voltage level of circuits is represented as OFF is grounded and ON is open circuit. See Figure.
