Fuel System Diagnosis - Fuel Supply Chart

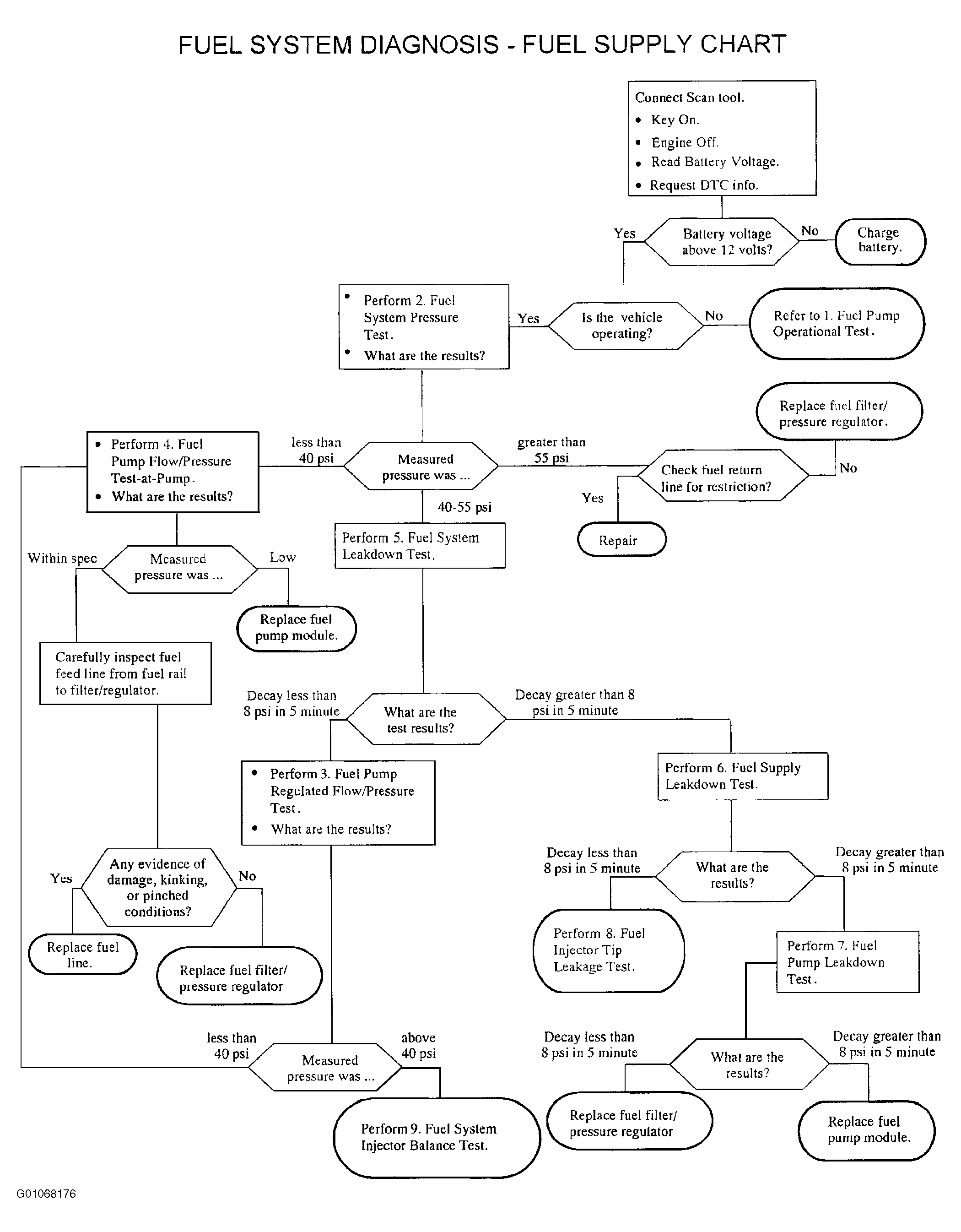

Fig 1: FUEL SYSTEM DIAGNOSIS - FUEL SUPPLY CHART

G01068176

Courtesy of GENERAL MOTORS CORP.
