Final Drive Assembly: Reassembly

  1. Assemble differential side gears and thrust washers into case. Set thrust washers onto pinion gears. Assemble pinion gears and washers into case. See Fig 2 .
  2. Slide cross pin through both pinion gears for alignment, and then remove pin. Rotate side gears into position, and then install cross pin. Tap cross pin locking pin into position. Install side bearings to differential, if removed.

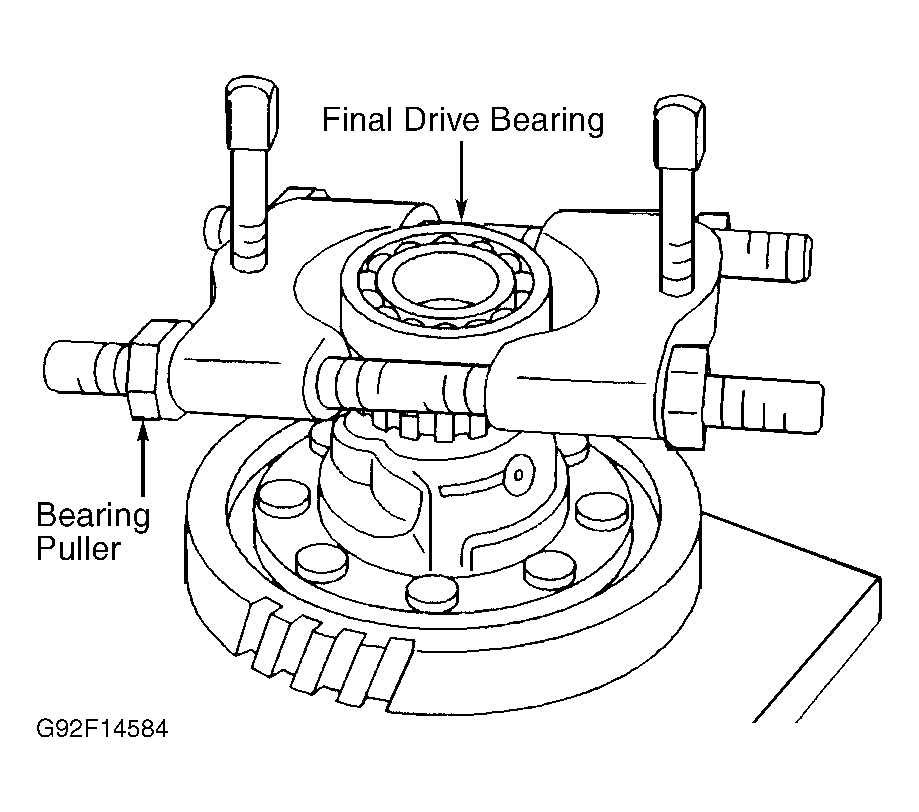

Fig 1: Removing Differential Side Bearing
G92F14584Courtesy of GENERAL MOTORS CORP.

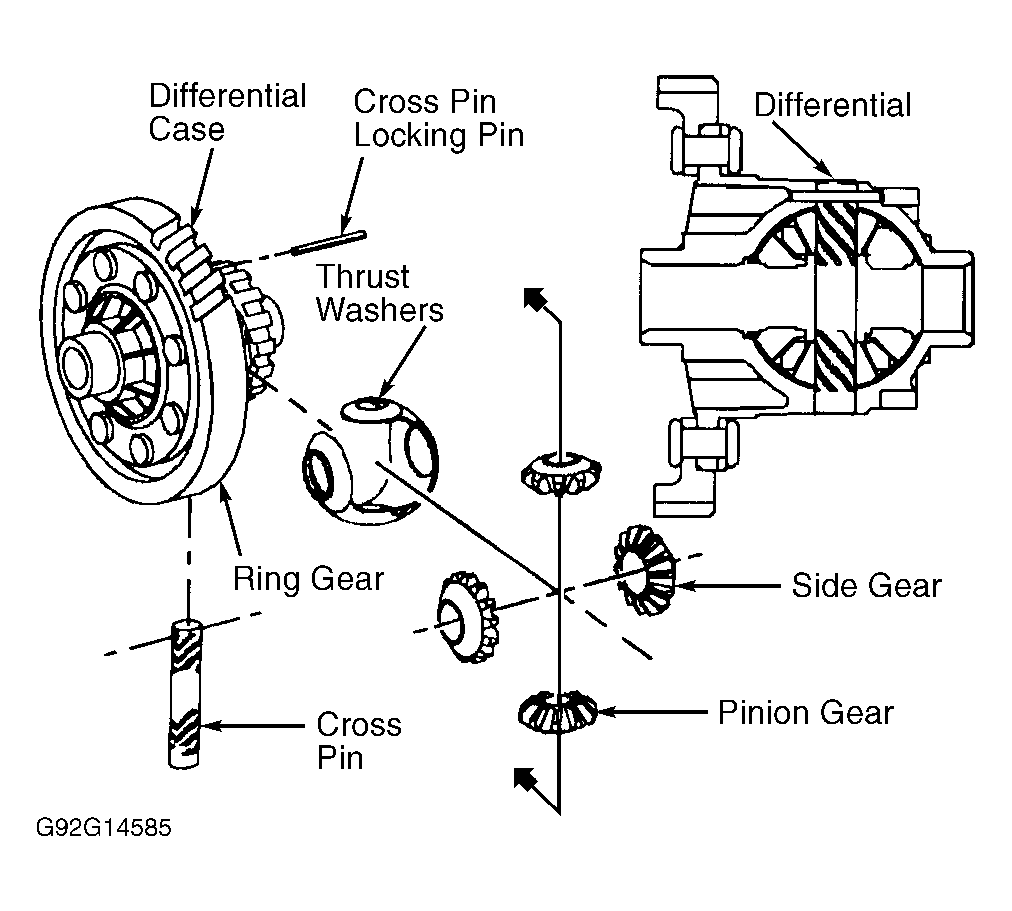

Fig 2: Identifying Final Drive Assembly Components
G92G14585Courtesy of GENERAL MOTORS CORP.
