Intermittent Operation And/Or Difficulty Programming RKE Transmitter (00-T-10)

Publication date: 2003-01-10
Reference number: 00-T-10

INTERMITTENT OPERATION AND/OR DIFFICULTY PROGRAMMING RKE TRANSMITTER

TECHNICAL SERVICE BULLETIN

Reference Number(s): 00-T-10, Date of Issue: January 10, 2003

SATURN:	2000 S-Series
SECTION:	Body and Accessories

SUBJECT

Intermittent Operation and/or Difficulty Programming Remote Keyless Entry (RKE) Transmitter -- Verify RKE Transmitter Part Number and Reprogram RKE Transmitter Using Updated Process.

MODELS AFFECTED

2000 Saturn S-Series vehicles equipped with RKE -- RPO AU0.

CONDITION

Some customers and technicians may experience intermittent remote keyless entry (RKE) transmitter operation while inside the vehicle. Technicians may also experience difficulty in programming RKE transmitters.

CAUSE

Intermittent RKE transmitter operation and/or difficulty programming may be caused by the RKE transmitter being too close to the body control module (BCM) during reprogramming attempt. If the RKE transmitter is too close to the BCM, the RKE transmitter may override the RKE receiver located in the BCM. This can result in an unsuccessful programming attempt and no RKE operation.

No operation of RKE transmitter may also be caused by trying to program an incorrect P/N RKE transmitter into the vehicle.

CORRECTION

Ensure that the RKE transmitter is at least 1.2 meters (4 feet) from the BCM during operation or programming attempt. Refer to the procedure in this bulletin to verify proper RKE transmitter programming and operation.

PROCEDURE

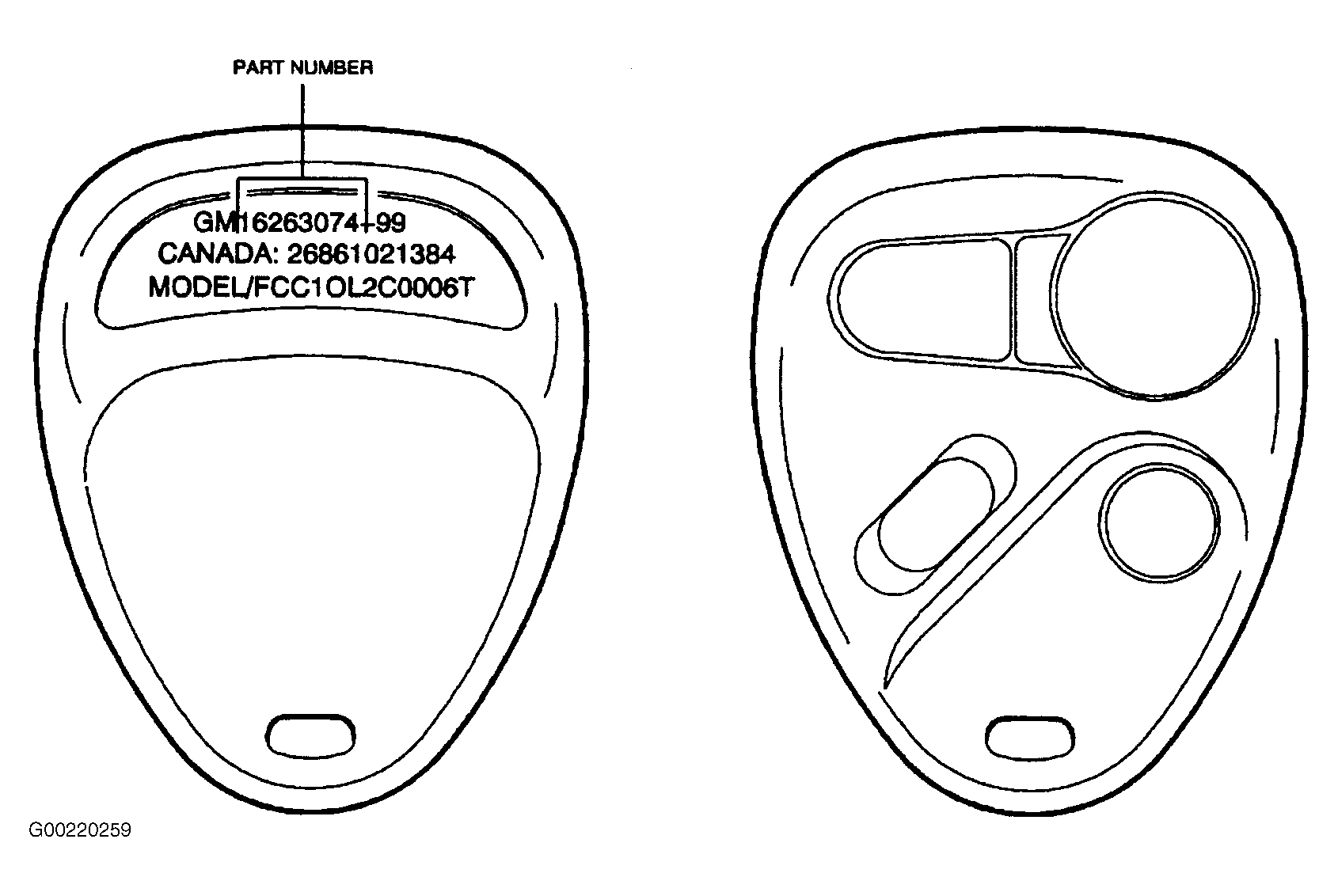

Fig 1: Part Number on RKE Transmitter

IMPORTANT:

2000 model year S-Series RKE transmitters will only operate when programmed to a 2000 model year S-Series vehicle. 1999 and earlier model year S-Series RKE transmitters will only operate when programmed to a 1999 and earlier model year S-Series vehicle.
Although the RKE transmitter P/N has a 99 after it, this number does not indicate any model year usage information. The 99 indicates the range of P/Ns from 1263074 to 16263099. On 2000 model year S-Series vehicles, Saturn uses the first P/N in that range.

Inspect the P/N on the back of the RKE transmitter intended to be programmed into the BCM.
- If the P/N is 16263074-99, the RKE is for a 2000 model year S-Series vehicle.
- If the P/N is any number other than 16263074-99, the RKE transmitter is not for a 2000 model year S-Series vehicle. Obtain the correct P/N RKE transmitter and program it to match the vehicle.

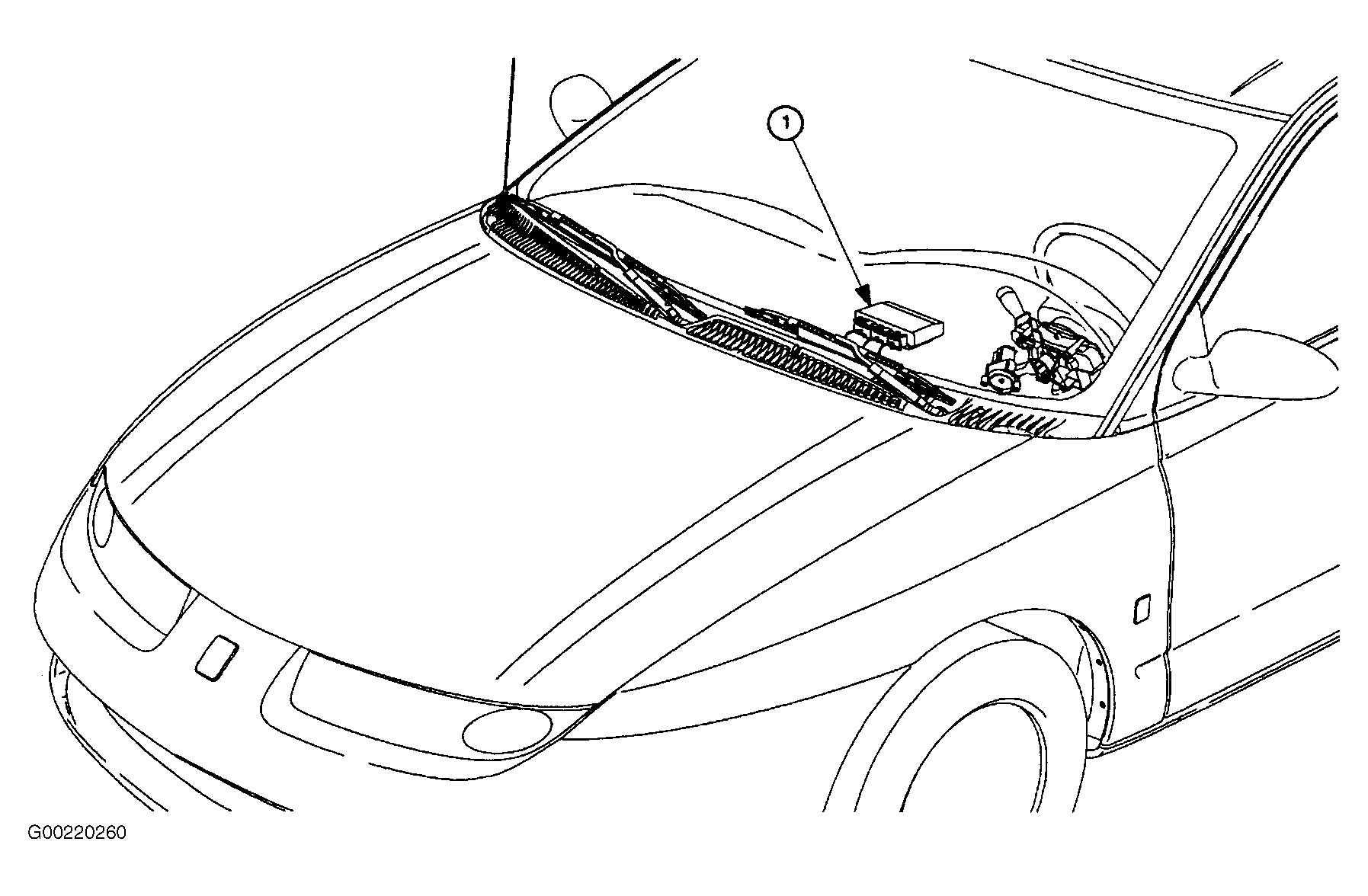

Fig 2: Location of BCM

During RKE transmitter programming, ensure that the RKE transmitter is kept at least 1.2 meters (4 feet) from the BCM. Refer to the illustration for BCM location.

Use the Tech 2 to program the RKE transmitter into the BCM. Refer to Program Key FOBs in the 2000 Body Special Functions section of the Tech 2 Users guide.
Perform RKE System Check to ensure proper operation. Refer to Remote Keyless Entry (RKE) System Check in the Locks and Security section of the 2000 S-Series Body/Electrical Volume II Service Manual.

To receive credit for this repair during the warranty coverage period, submit a claim through the Saturn Dealer System as Follows:

CLAIM INFORMATION

--	Case Type	Description	Labor Operation Code	Time
--	VW	Reprogramming -- RKE Transmitter	R4491	0.2 hrs
