Reassembly & Installation

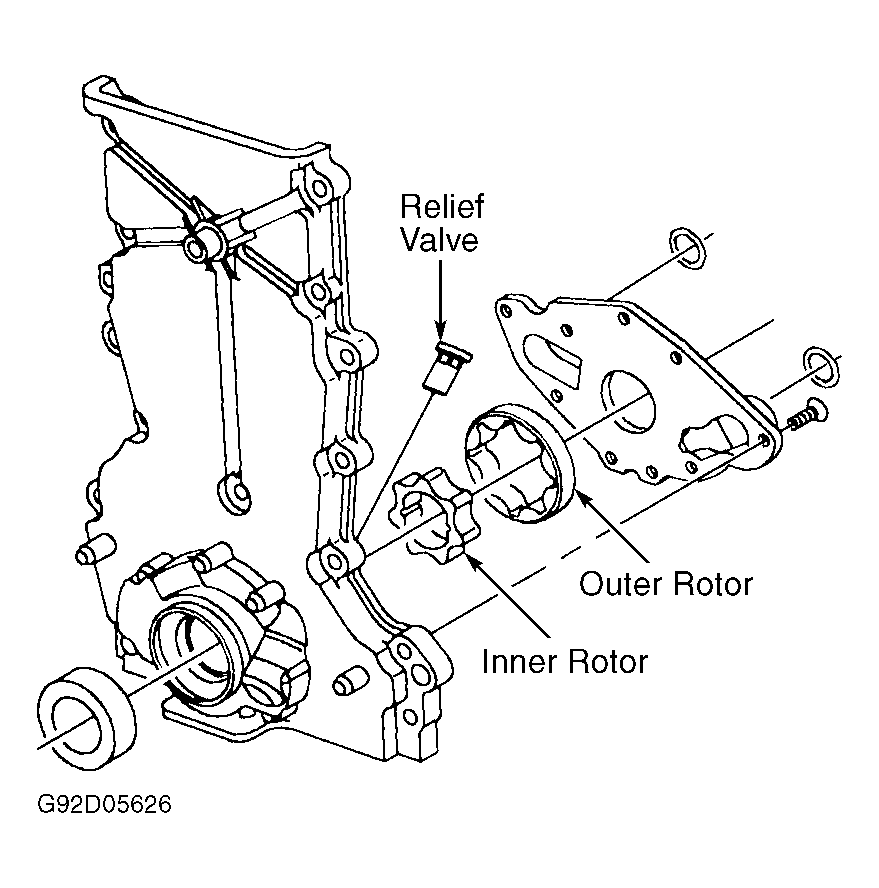

Install rotors with chamfer facing away from engine. Install NEW relief valve (if removed). Pack pump rotors with petroleum jelly to prime pump. Install drive and driven rotors with chamfer toward front seal. Install pump cover plate using NEW screws. New screws come with a sealant on threads. Tighten screws to specification. See TORQUE SPECIFICATIONS .
OIL PUMP SPECIFICATIONS
| Application | In. (mm) |
|---|---|
| Outer Rotor-To-Housing | .006-.011 (.150-.277) |
| Outer Rotor Tip-To-Inner Rotor Tip | .006 (.150) |
| Rotor Gear-To-Pump Cover Plate | .0016-.0050 (.041-.127) |
