Steering Wheel Column Lock: Installation

WARNING: This page is about a different car, the 2000 Chevrolet Corvette. However, it is still accessible from the selected car via links, so may be relevant.

To install, reverse removal procedure. Use NEW retaining ring and steering wheel nut. Torque steering wheel nut to 30 ft. lbs. (41 N.m).

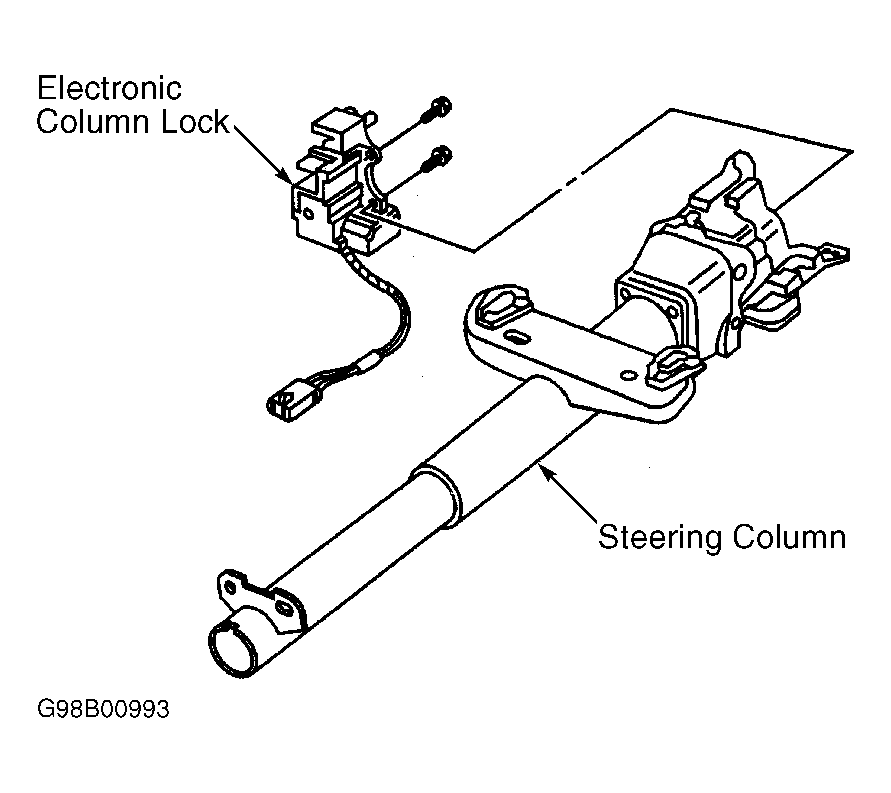

Fig 1: Removing Electronic Column Lock
G98B00993Courtesy of GENERAL MOTORS CORP.
