Window Panel

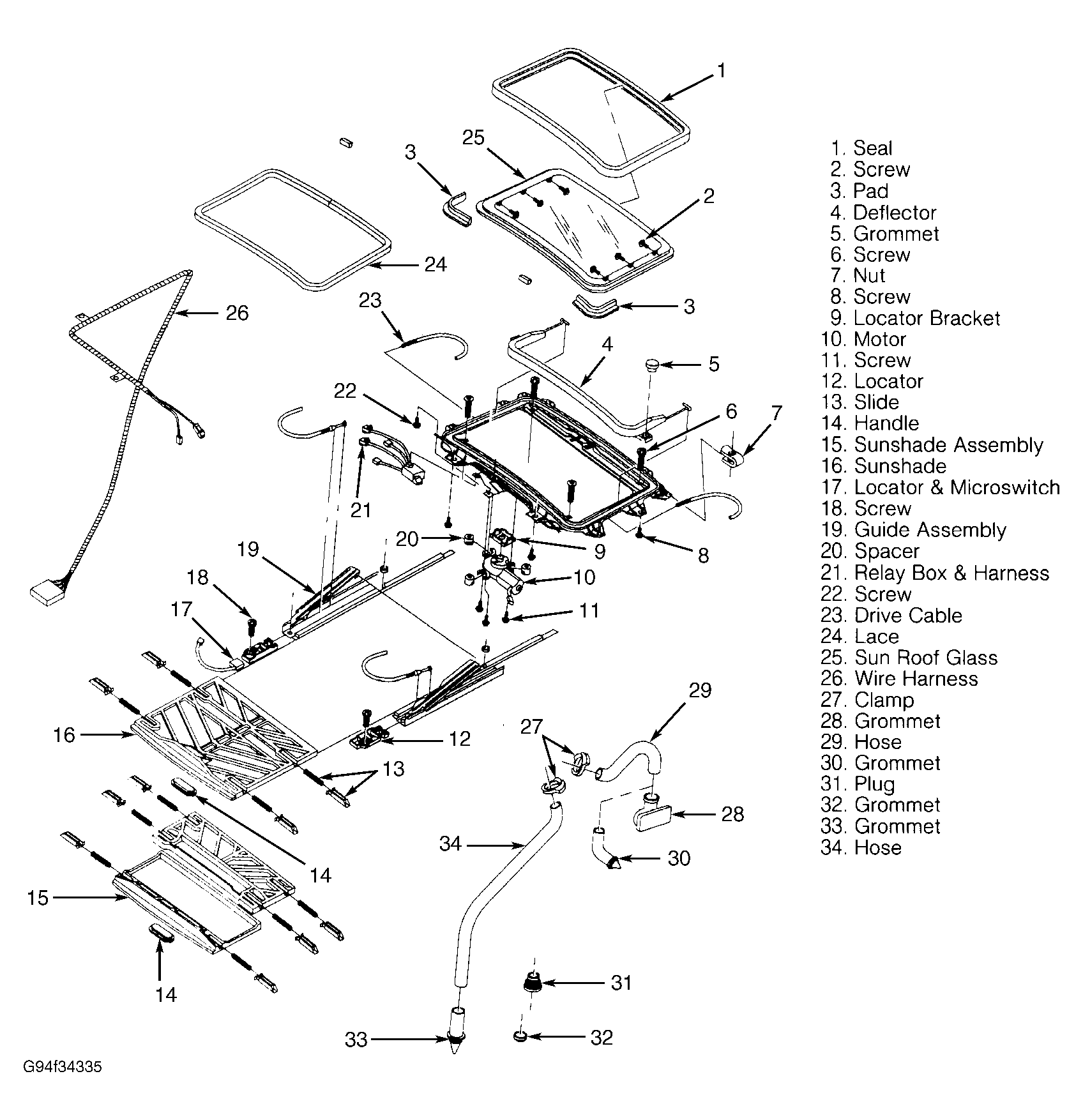

During installation of power sun roof window panel, adjust power sun roof window panel flush to 0.04" (1 mm) below roof surface at front of window panel, and flush to 0.04" (1 mm) above roof surface at rear of window panel by loosening power sun roof window panel attaching screws and moving power sun roof window panel. See Figure . See WINDOW PANEL  under REMOVAL & INSTALLATION. Adjustment allows smooth and easy operation.
