Rack Bearing Preload

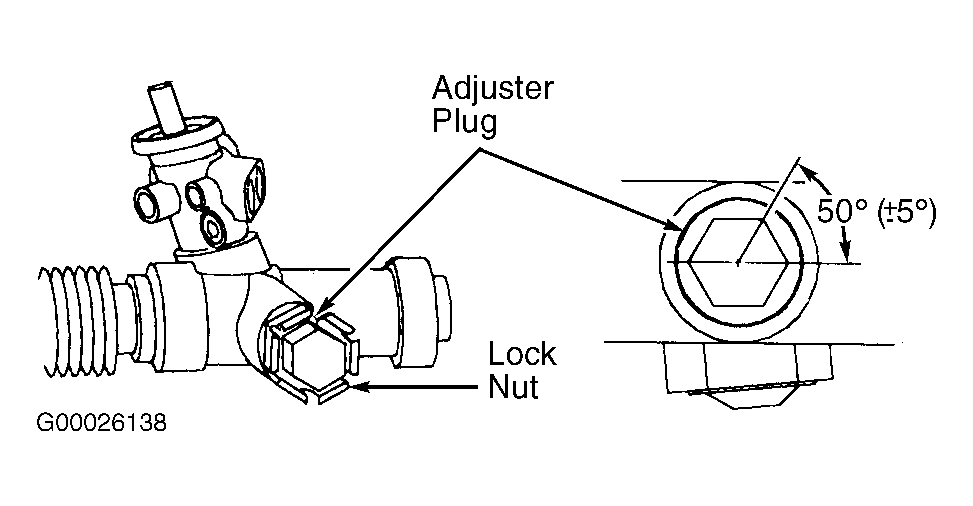

- Raise and support vehicle. Turn front wheels to straight-ahead position. Loosen steering gear adjuster plug lock nut. See Fig 1
. Turn adjuster plug clockwise until it bottoms in housing, and then tighten plug to specification. See TORQUE SPECIFICATIONS
. Back off adjuster plug 50 +/-5 degrees (slightly less than one flat of nut). See Fig 1
.
- While holding adjuster plug stationary, tighten adjuster plug lock nut to specification with crows foot wrench. Test drive vehicle, ensuring steering wheel returns to center after turning.
Courtesy of GENERAL MOTORS CORP.
